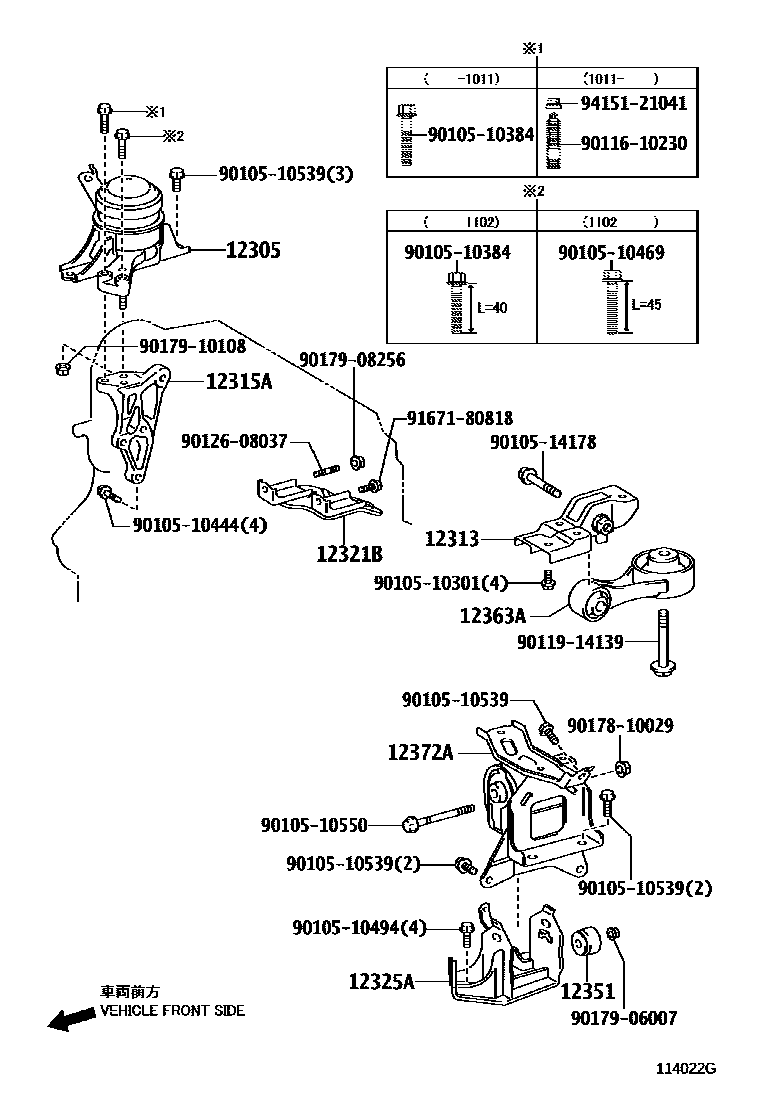

Toyota YARIS — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
sub12315-21032
sub12315-21033
sub12315-21042
sub12315-21043
sub12315-21044
12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12363AROD, ENGINE MOVING CONTROL
9010510301
main90105-10301
9010510384
main90105-10384
9010510444
main90105-10444
9010510469
main90105-10469
9010510494
main90105-10494
9010510539
main90105-10539
9010510550
main90105-10550
9010514178
main90105-14178
9011610230
main90116-10230
9011914139
main90119-14139
9012608037
main90126-08037
9017810029
main90178-10029
9017906007
main90179-06007
9017908256
main90179-08256
9017910108
main90179-10108
9167180818
main91671-80818
9415121041
main94151-21041
25 parts on this diagram · 2 diagrams in section
