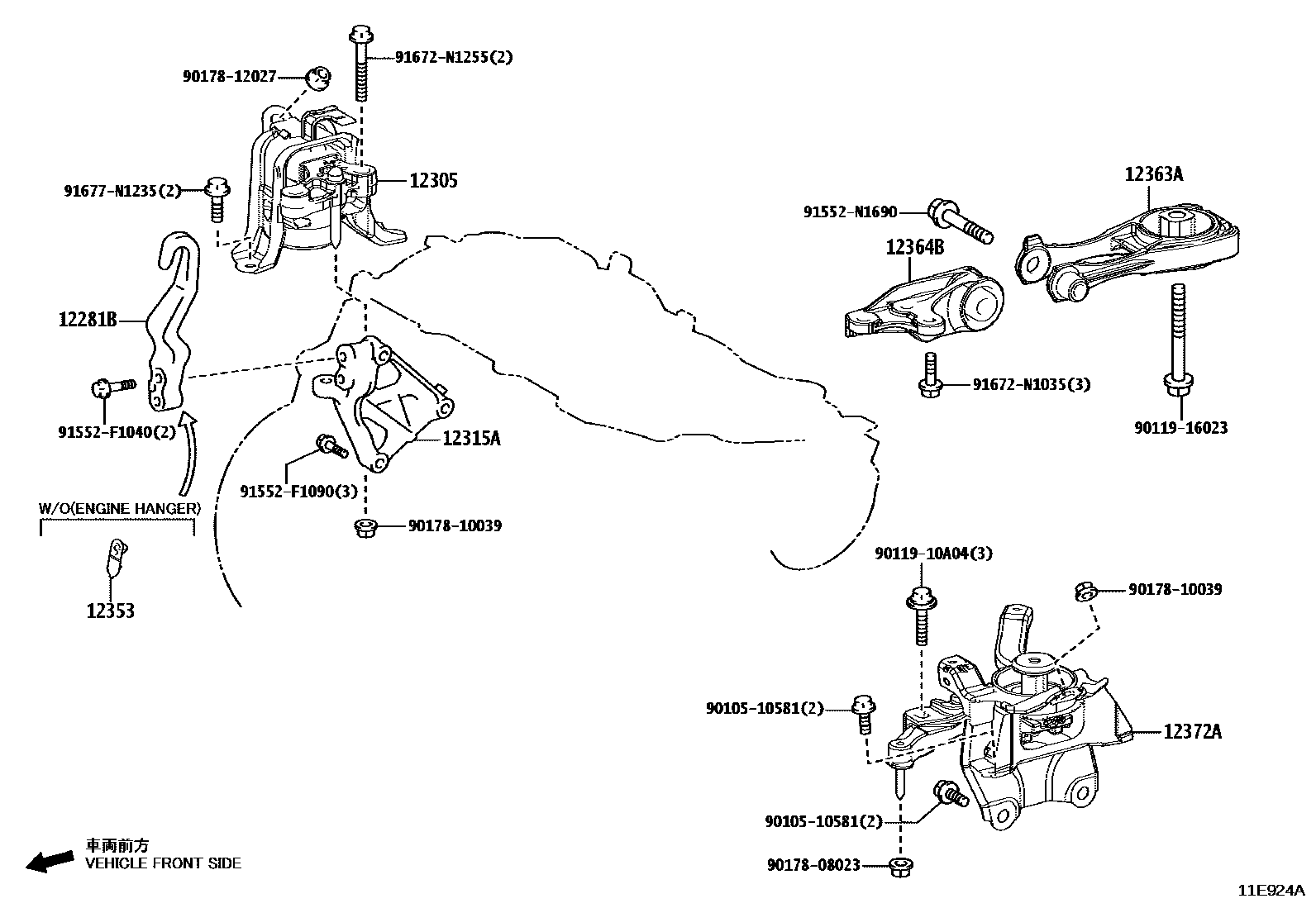

Toyota YARIS — MOUNTING

0001 1 0002 1 0003 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM15#..MXPA10,MXPH10..CVT202005-202501

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-15090iM15AFXE..MXPH10202005-202401

main12305-15100iM15AFKS..MXPA10202005-202501

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15090iM15AFKS..MXPA10202005-202501

main12315-15100iM15AFXE..MXPH10202005-202401

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iM15#..MXPA10,MXPH10..CVT202005-202501

12363AROD, ENGINE MOVING CONTROL

main12363-15030iM15#..MXPA10,MXPH10..CVT202005-202109

main12363-15040iM15AFKS..MXPA10..6F202005-202207

main12363-15060iM15#..MXPA10,MXPH10..CVT202110-202501

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-15030iM15AFXE..MXPH10202005-202401

main12364-15040iM15AFKS..MXPA10..CVT202005-202501

main12364-15050iM15AFKS..MXPA10..6F202005-202207

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15270iM15AFXE..MXPH10202005-202401

main12372-15281iM15AFKS..MXPA10..CVT202005-202501

main12372-F3050iM15AFKS..MXPA10..6F202005-202207

9010510581

main90105-10581

9011910A04

main90119-10A04

9011916023

main90119-16023

9017808023

main90178-08023

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91552N1690

main91552-N1690

91672N1035

main91672-N1035

91672N1255

main91672-N1255

91677N1235

main91677-N1235

19 parts on this diagram · 3 diagrams in section
