Toyota YARIS — MIRROR

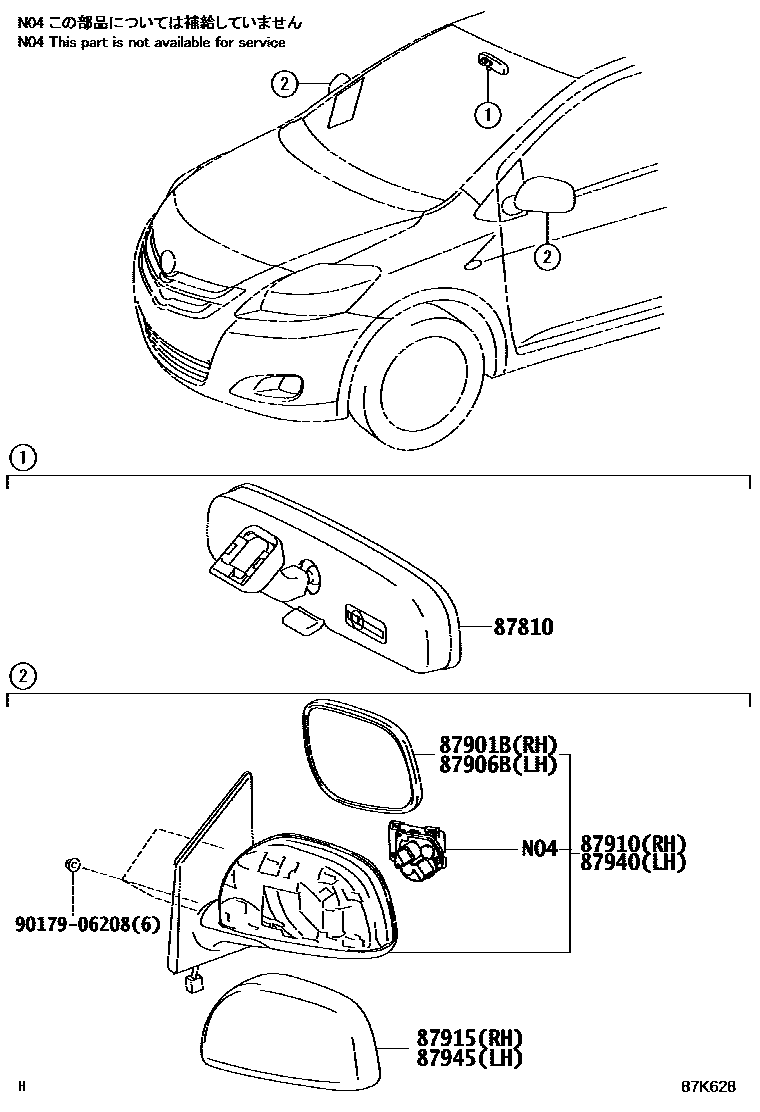

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-52040i200601-200611
main87810-52041i200808-201607
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-52640i200601-200808
main87931-52710i200808-201307
main87931-52A00supersedes 87931-52640i201108
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-52620i200601-200808
main87961-52690i200808-201307
main87961-52880supersedes 87961-52620i201108
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-52770i200601-200808
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main87910-52A80supersedes 87910-52830i201108
NO PAINT REQ.
main87910-52810supersedes 87910-52820i200601-200808
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main87910-52840supersedes 87910-52850i200808-201307
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main87910-52E40supersedes 87910-52820i201011-201307
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),W/TURN
87915COVER, OUTER MIRROR, RH
main87915-12070-A0i201108-201607
SUPER WHITE 2,040
main87915-12070-B0i201108-201607
SILVER ME.,1F7
main87915-12070-B6i201108-201607
DK.GRAY MC.,1E0
main87915-12070-C0i201108-201607
BLACK MC.,209
main87915-12070-D0i201108-201607
RED M.M.,3R3
main87915-12070-H1i201108-201504
TURQUOISE ME.,777
main87915-12070-J5i201108-201504
BLUE ME.,8N0
main87915-12070-J6i201108-201607
GRAYISH BLUE ME.,8R3
main87915-12070-J7i201108-201607
BLUE ME.,8T7
main87915-52030i200808-201307
NO PAINT REQ.
main87915-12070-A2i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),W/TURN,WHITE,068
main87915-12070-B3i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),W/TURN,SILVER M.M.,1E7
main87915-52060-A0i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
main87915-52060-B0i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
main87915-52060-B2i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GRAY MC.,1E0
main87915-52060-C0i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main87915-52060-D1i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3
main87915-52060-G2i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.OLIVE ME.,6U4
main87915-52060-H0i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE ME.,777
main87915-52060-J4i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE ME.,8R3
main87915-52060-J5i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6
main87915-52080-A0i200608-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
main87915-52080-A2i201108-201307
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040
main87915-52080-B0i200808-201307
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GRAY MC.,1E0
main87915-52080-B1i200608-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
main87915-52080-B2i201108-201307
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
main87915-52080-C0i200808-201307
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main87915-52080-D0i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3
main87915-52080-G0i200608-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.OLIVE ME.,6U4
main87915-52080-H0i200608-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE ME.,777
main87915-52080-J0i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE ME.,8R3
main87915-52080-J1i200608-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6
main87915-52080-J2i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8N0
main87915-52080-J3i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T7
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-52750i200601-200808
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main87940-52A60supersedes 87940-52810i201108
NO PAINT REQ.
main87940-52790supersedes 87940-52800i200601-200808
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main87940-52820supersedes 87940-52830i200808-201307
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main87940-52E20supersedes 87940-52800i201011-201307
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),W/TURN
87945COVER, OUTER MIRROR, LH
main87945-12070-A0i201108-201607
SUPER WHITE 2,040
main87945-12070-B0i201108-201607
SILVER ME.,1F7
main87945-12070-B6i201108-201607
DK.GRAY MC.,1E0
main87945-12070-C0i201108-201607
BLACK MC.,209
main87945-12070-D0i201108-201607
RED M.M.,3R3
main87945-12070-H1i201108-201504
TURQUOISE ME.,777
main87945-12070-J5i201108-201504
BLUE ME.,8N0
main87945-12070-J6i201108-201607
GRAYISH BLUE ME.,8R3
main87945-12070-J7i201108-201607
BLUE ME.,8T7
main87945-52050i200601-200808
NO PAINT REQ.
main87945-12070-A2i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),W/TURN,WHITE,068
main87945-12070-B3i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),W/TURN,SILVER M.M.,1E7
main87945-52060-A0i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
main87945-52060-B0i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
main87945-52060-B2i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GRAY MC.,1E0
main87945-52060-C0i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main87945-52060-D1i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3
main87945-52060-G2i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.OLIVE ME.,6U4
main87945-52060-H0i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE ME.,777
main87945-52060-J4i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE ME.,8R3
main87945-52060-J5i200601-200608
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6
main87945-52080-A0i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),WHITE,068
main87945-52080-A2i201108-201307
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040
main87945-52080-B0i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.GRAY MC.,1E0
main87945-52080-B1i200608-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER M.M.,1E7
main87945-52080-B2i201108-201307
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7
main87945-52080-C0i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209
main87945-52080-D0i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3
main87945-52080-G0i200608-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.OLIVE ME.,6U4
main87945-52080-H0i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE ME.,777
main87945-52080-J0i200808-201108
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAYISH BLUE ME.,8R3
main87945-52080-J1i200608-200808
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6
main87945-52080-J2i200808-201307
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8N0
main87945-52080-J3i200808-201307
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T7
9017906208
main90179-06208

8 parts on this diagram · 2 diagrams in section

MIRROR for Toyota YARIS

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota YARIS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
