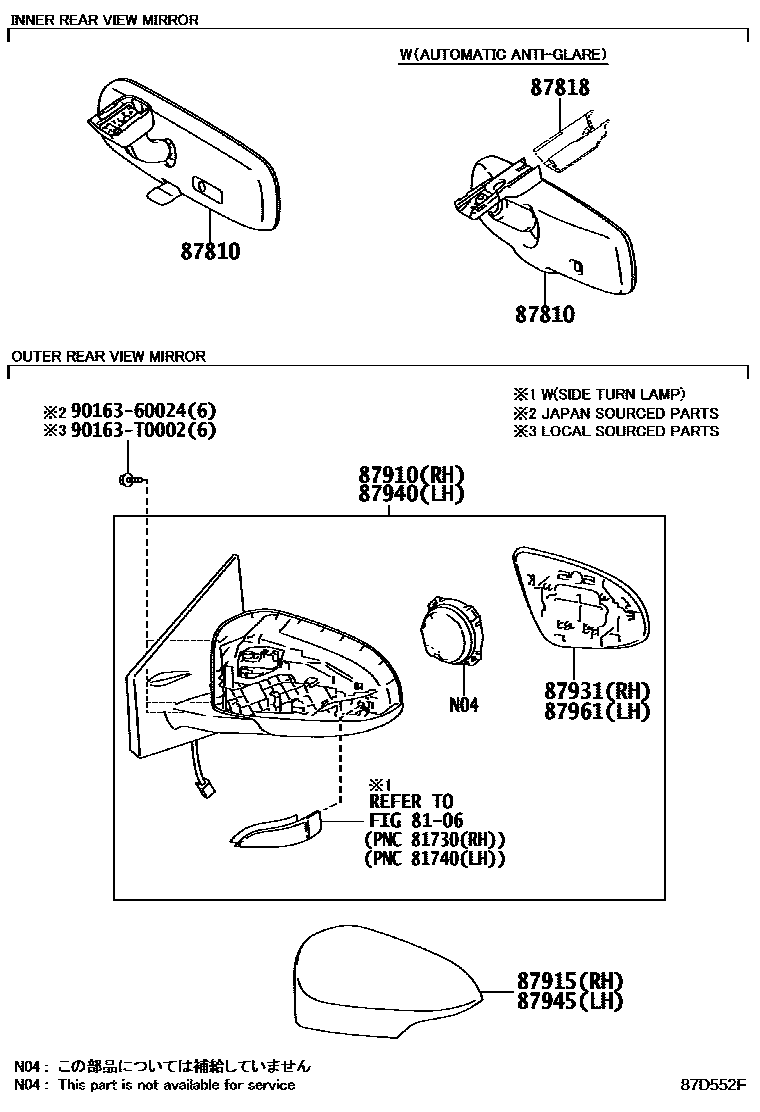

Toyota YARIS — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
ACTIVE SAFETY PACKAGE-WITH
G PACKAGE
G PACKAGE&ACTIVE SAFETY PACKAGE-WITH
87818COVER, INNER RR VIEW MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,E-SPORT PACKAGE(FOR LATIN AMERICA)
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,E-SPORT PACKAGE
PAINT REQ.
PAINT REQ.; PAINT REQ.,G-HI PACKAGE(FOR TAIWAN)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE& W(SIDE TURN LAMP)
NO PAINT REQ.; NO PAINT REQ.,BRUNEI SPEC
NO PAINT REQ.,ECO PACKAGE; NO PAINT REQ.,J PACKAGE
ECO PACKAGE
87915COVER, OUTER MIRROR, RH
main87915-06910supersedes 87915-0D520iNCP15#..(GCC,GEN,PH,VN)..G; NCP15#..GCC..R; NCP15#..LHD..GEN..R201403-201606
PAINT REQ.; PAINT REQ.,E-SPORT PACKAGE; PAINT REQ.,E-SPORT PACKAGE(FOR LATIN AMERICA)
PAINT REQ.; PAINT REQ.,G-HI PACKAGE(FOR TAIWAN)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE& W(SIDE TURN LAMP)
SPORT PACKAGE(*RCL(LED TYPE))
PAINT REQ.
PAINT REQ.
PAINT REQ.; PAINT REQ.,BRUNEI SPEC
NO PAINT REQ.,ECO PACKAGE
E-SPORT PACKAGE(GRADE MARK(S))
87931OUTER MIRROR, RH
BRUNEI SPEC
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,E-SPORT PACKAGE(FOR LATIN AMERICA)
NO PAINT REQ.; NO PAINT REQ.,E-SPORT PACKAGE
PAINT REQ.
PAINT REQ.; PAINT REQ.,G-HI PACKAGE(FOR TAIWAN)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE& W(SIDE TURN LAMP)
NO PAINT REQ.; NO PAINT REQ.,BRUNEI SPEC
NO PAINT REQ.,ECO PACKAGE; NO PAINT REQ.,J PACKAGE
ECO PACKAGE
87945COVER, OUTER MIRROR, LH
main87945-06910supersedes 87945-0D520iNCP15#..(GCC,GEN,PH,VN)..G; NCP15#..GCC..R; NCP15#..LHD..GEN..R201403-201606
PAINT REQ.; PAINT REQ.,E-SPORT PACKAGE; PAINT REQ.,E-SPORT PACKAGE(FOR LATIN AMERICA)
PAINT REQ.; PAINT REQ.,G-HI PACKAGE(FOR TAIWAN)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE& W(SIDE TURN LAMP)
SPORT PACKAGE(*RCL(LED TYPE))
PAINT REQ.
PAINT REQ.; PAINT REQ.,BRUNEI SPEC
ECO PACKAGE
E-SPORT PACKAGE(GRADE MARK(S))
87961MIRROR OUTER, LH
9016360024
main90163-60024
90163T0002
main90163-T0002
11 parts on this diagram · 2 diagrams in section
MIRROR for Toyota YARIS
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota YARIS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER RR VIEW MIRROR, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
