Toyota YARIS — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-28140i202401-202501

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-K0310i202005-202401

NO PAINT REQ.

main87910-K0070i202105-202401

NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACKMONITOR-WITH(*BGM)&LANE CHANGE ASSIST-WITH

87915COVER, OUTER MIRROR, RH

main87915-K0010-A0i202401-202501

SUPER WHITE 2,040

main87915-K0010-A1i202005-202208

WHITE PEARL CS.,070,##

main87915-K0010-A2i202005-202105

LANE CHANGE ASSIST-WITH,WHITE,2KC ,2NE; PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&LANE CHANGE ASSIST-WITH,WHITE,2KC ,2NE; WHITE,2KC ,2NE,##

main87915-K0010-A3i202401

PLATINUM WHITE PEARL MC.,089

main87915-K0010-B0i202005-202208

SILVER ME.,1F7,##

main87915-K0010-B1i202401

SILVER ME.,1L0

main87915-K0010-B2i202401

MASSIVE GRAY,1L6

main87915-K0010-C0i202401

BLACK,040 ,089 ,1L0 ,1L6 ,202 ,2RV ,2SQ ,2SR ,2SS ,3T3 ,3U6 ,3U7 ,4V8 ,8W9

main87915-K0010-D0i202005-202105

BORDEAUX M.M,3R9,##; LANE CHANGE ASSIST-WITH,BORDEAUX M.M,3R9; PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&LANE CHANGE ASSIST-WITH,BORDEAUX M.M,3R9

main87915-K0010-D1i202005-202401

RED MC.,3T3,##

main87915-K0010-D2i202005-202401

ICE PINK ME.,3U6,##

main87915-K0010-D3i202005-202401

CORAL CS.,3U7,##

main87915-K0010-E0i202401

AVANT-GARDE BRONZE ME.,4V8

main87915-K0010-G0i202005-202208

THERMO-TECT LIME GREEN,6W7,##

main87915-K0010-J0i202005-202401

DK.BLUE M.M.,8W7,##

main87915-K0010-J1i202005-202401

CYAN METALLIC,8W9,##

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-K0310i202005-202207

NO PAINT REQ.

8791BBSTAY, OUTER MIRROR, RH

main8791B-K0310×2i202401

8791CSEAL, OUTER MIRROR

main8791C-K0310×2i202006-202207

87931OUTER MIRROR, RH

main87931-K0310i202005-202401

main87931-K0070i202105-202401

PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*BGM)&LANE CHANGE ASSIST-WITH

87939COVER, OUTER MIRROR HOLE, RH

main87939-K0310i202005-202207

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-K0370i202005-202401

NO PAINT REQ.

main87940-K0070supersedes 87940-K0370i202401-202501

NO PAINT REQ.,S PACKAGE&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST)

87945COVER, OUTER MIRROR, LH

main87945-K0010-A0i202401-202501

SUPER WHITE 2,040

main87945-K0010-A1i202005-202208

WHITE PEARL CS.,070,##

main87945-K0010-A2i202005-202105

LANE CHANGE ASSIST-WITH,WHITE,2KC ,2NE; PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&LANE CHANGE ASSIST-WITH,WHITE,2KC ,2NE; WHITE,2KC ,2NE,##

main87945-K0010-A3i202401

PLATINUM WHITE PEARL MC.,089

main87945-K0010-B0i202005-202208

SILVER ME.,1F7,##

main87945-K0010-B1i202401-202501

SILVER ME.,1L0

main87945-K0010-B2i202401

MASSIVE GRAY,1L6

main87945-K0010-C0i202401

BLACK,040 ,089 ,1L0 ,1L6 ,202 ,2RV ,2SQ ,2SR ,2SS ,3T3 ,3U6 ,3U7 ,4V8 ,8W9

main87945-K0010-D0i202005-202105

BORDEAUX M.M,3R9,##; LANE CHANGE ASSIST-WITH,BORDEAUX M.M,3R9; PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&LANE CHANGE ASSIST-WITH,BORDEAUX M.M,3R9

main87945-K0010-D1i202401-202501

RED MC.,3T3

main87945-K0010-D2i202005-202401

ICE PINK ME.,3U6,##

main87945-K0010-D3i202401

CORAL CS.,3U7

main87945-K0010-E0i202401

AVANT-GARDE BRONZE ME.,4V8

main87945-K0010-G0i202005-202208

THERMO-TECT LIME GREEN,6W7,##

main87945-K0010-J0i202005-202401

DK.BLUE M.M.,8W7,##

main87945-K0010-J1i202005-202401

CYAN METALLIC,8W9,##

87946RETRACTOR, OUTER MIRROR, RH

main87946-K0310i202005-202401

main87946-K0070supersedes 87946-K0310i202005-202207

LANE CHANGE ASSIST-WITH

87948COVER, OUTER MIRROR HOLE, LH

main87948-K0370i202401-202501

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-K0370i202005-202207

NO PAINT REQ.

8794BBSTAY, OUTER MIRROR, LH

main8791B-K0310×2i202005-202207

87961MIRROR OUTER, LH

main87961-K0370i202005-202401

main87961-K0070i202105-202401

PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*BGM)&LANE CHANGE ASSIST-WITH

87966RETRACTOR, OUTER MIRROR, LH

main87966-K0370i202005-202401

main87966-K0070i202005-202105

PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&LANE CHANGE ASSIST-WITH

9006701004

main90067-01004

9016360024

main90163-60024

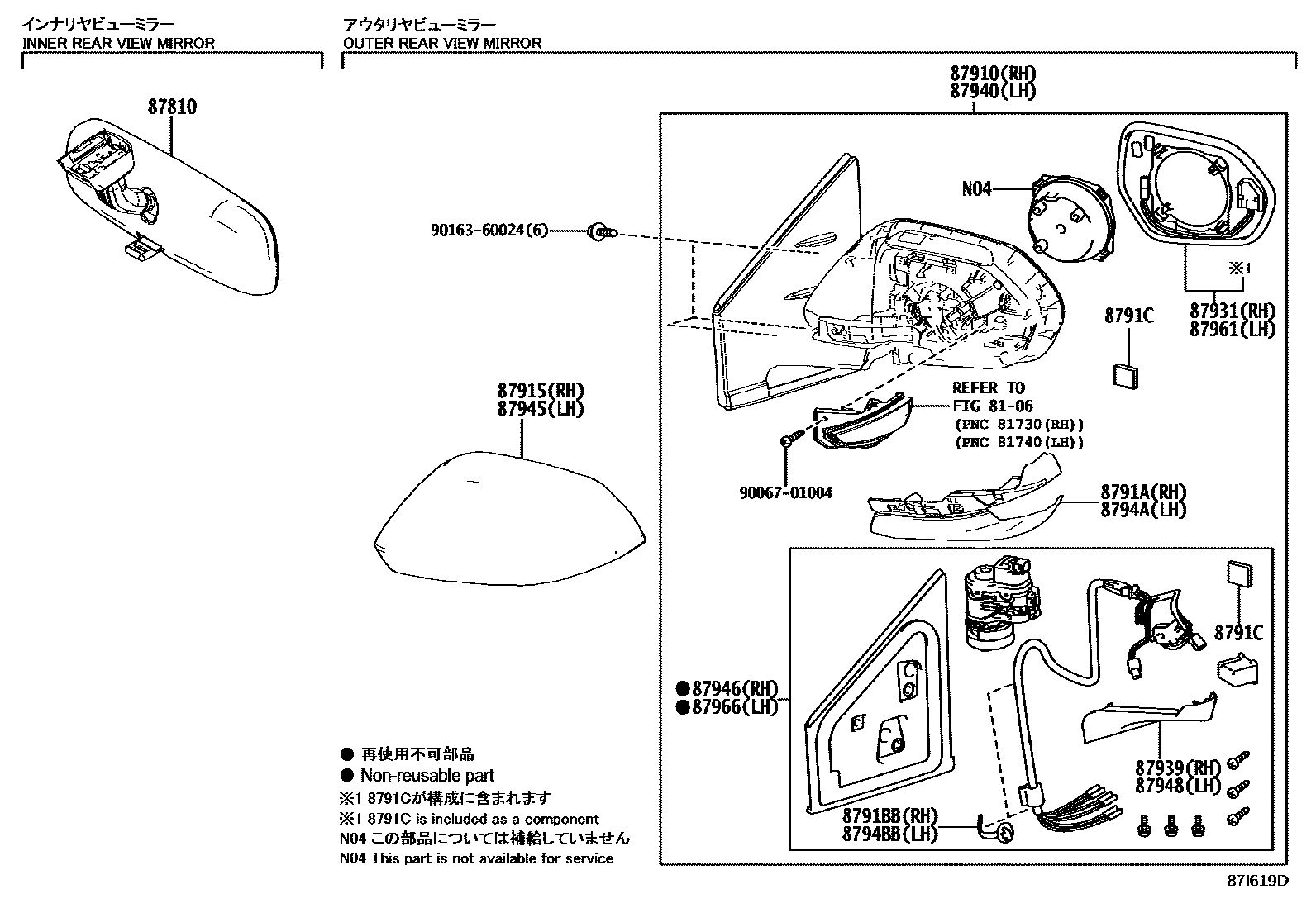

19 parts on this diagram · 2 diagrams in section

MIRROR for Toyota YARIS

This section contains 19 genuine Toyota parts for the MIRROR system of the Toyota YARIS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, COVER, OUTER MIRROR, RH NO.2.
