Toyota YARIS — METER

0001 1COMBINATION METER 0002 1COMBINATION METER 0003 1HEAD-UP DISPLAY

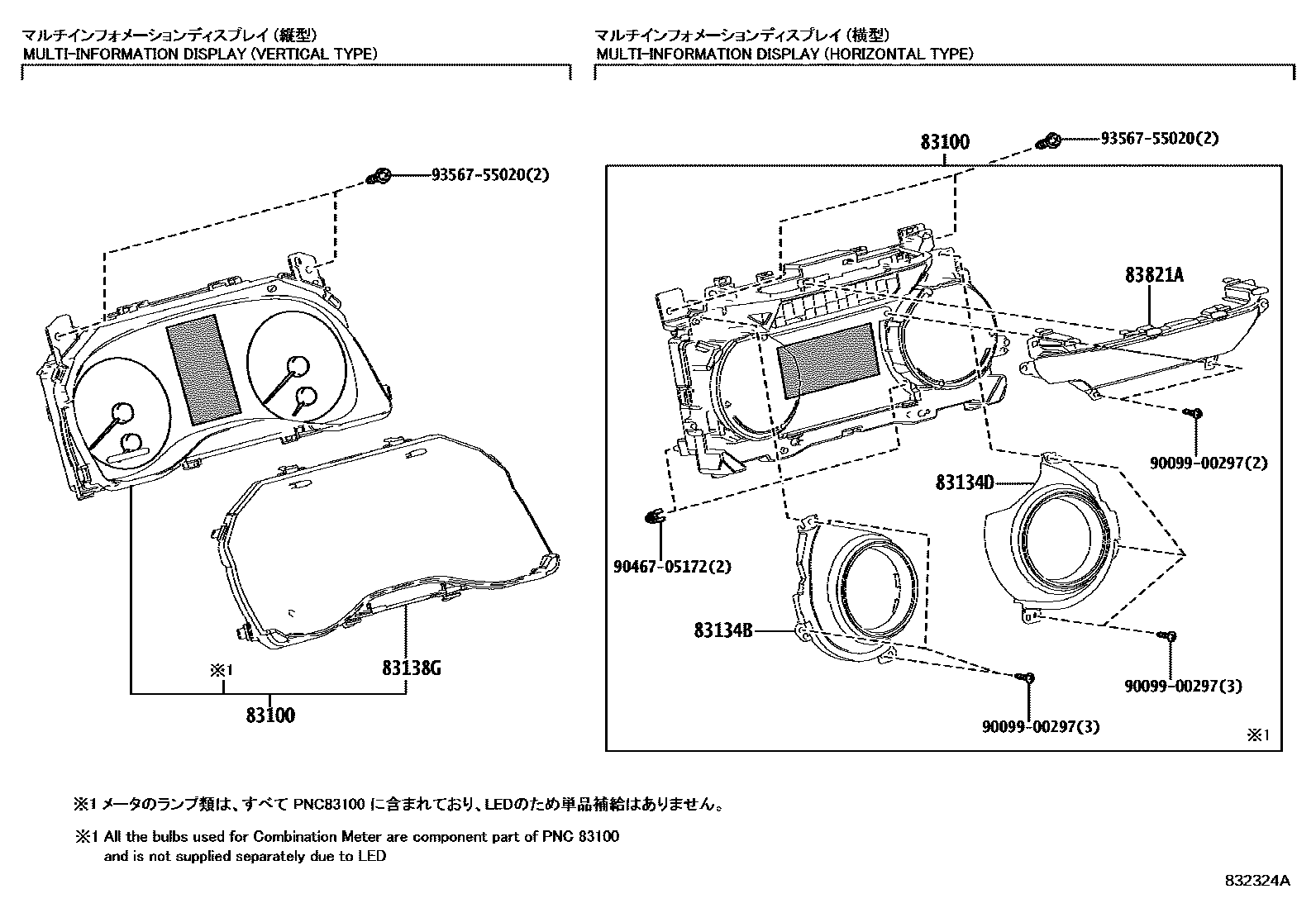

83100METER ASSY, COMBINATION

main83800-5D400iMXPA10..6F202105-202401

DENSO

main83800-5D410iMXPH10202105-202401

DENSO

main83800-5D800iMXPA10202401-202402

DENSO,*614

sub83800-5D801

main83800-5D801iMXPA10202402-202407

DENSO,*614

sub83800-5D802

main83800-5D802iMXPA10202407-202501

DENSO

main83800-5D830iMXPH10202401-202406

DENSO,*614

sub83800-5D831

main83800-5D831iMXPH10202407

DENSO

main83800-K0020iMXPA10202005-202007

DENSO

sub83800-K0021

main83800-K0021iMXPA10202008-202104

DENSO

sub83800-5D400

main83800-K0040iMXPH10202005-202007

DENSO

sub83800-K0041

main83800-K0041iMXPH10202008-202104

DENSO

sub83800-5D410

83134BCOVER, COMBINATION METER, NO.2

83134DCOVER, COMBINATION METER, NO.3

83138GGLASS, COMBINATION METER

main83852-5D790iMXPA10202401-202501

main83852-K0020iMXPA10..6F202005-202401

83821ACOVER, COMBINATION METER, NO.1

9009900297

main90099-00297

9046705172

main90467-05172

9356755020

main93567-55020

8 parts on this diagram · 3 diagrams in section
