Toyota YARIS — METER

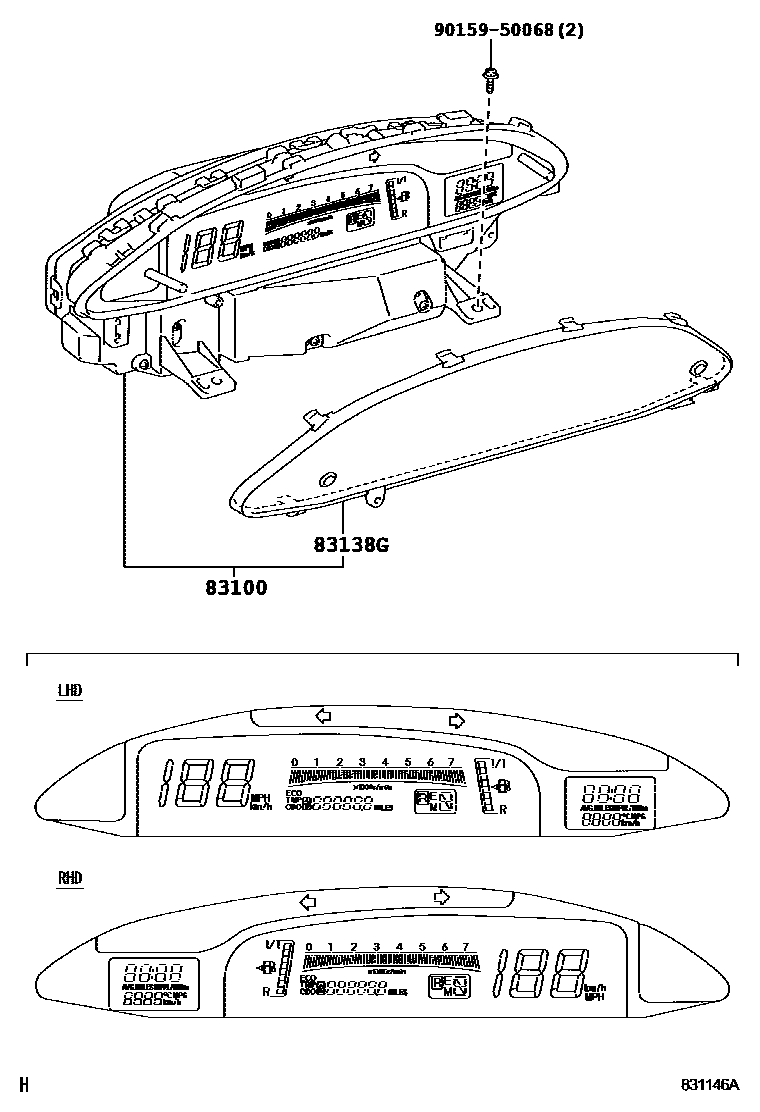

Parts diagram

83100METER ASSY, COMBINATION

main83800-52B20i200508-200711

main83800-52B21i200808-201107

main83800-52B40i200508-200808

main83800-52B90i200508-200802

main83800-52C00i200508-200808

main83800-52Q70i200808-201107

main83800-52Q90i200808-201107

main83800-52R10i200802-200808

main83800-52R11i200808-201107

main83800-52W80i200711-200808

83138GGLASS, COMBINATION METER

main83852-52A00i200808-201107

main83852-52A00i200508-200808

SPEEDOMETER-W/O(TACHO) ANALOG MILE/H,KM/H

main83852-52A80i200508-200903

main83852-52A81i200903-201107

9015950068

main90159-50068

3 parts on this diagram · 2 diagrams in section

METER for Toyota YARIS

This section contains 4 genuine Toyota parts for the METER system of the Toyota YARIS. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, CLOCK ASSY.
