Toyota YARIS — IGNITION COIL & SPARK PLUG / GLOW PLUG

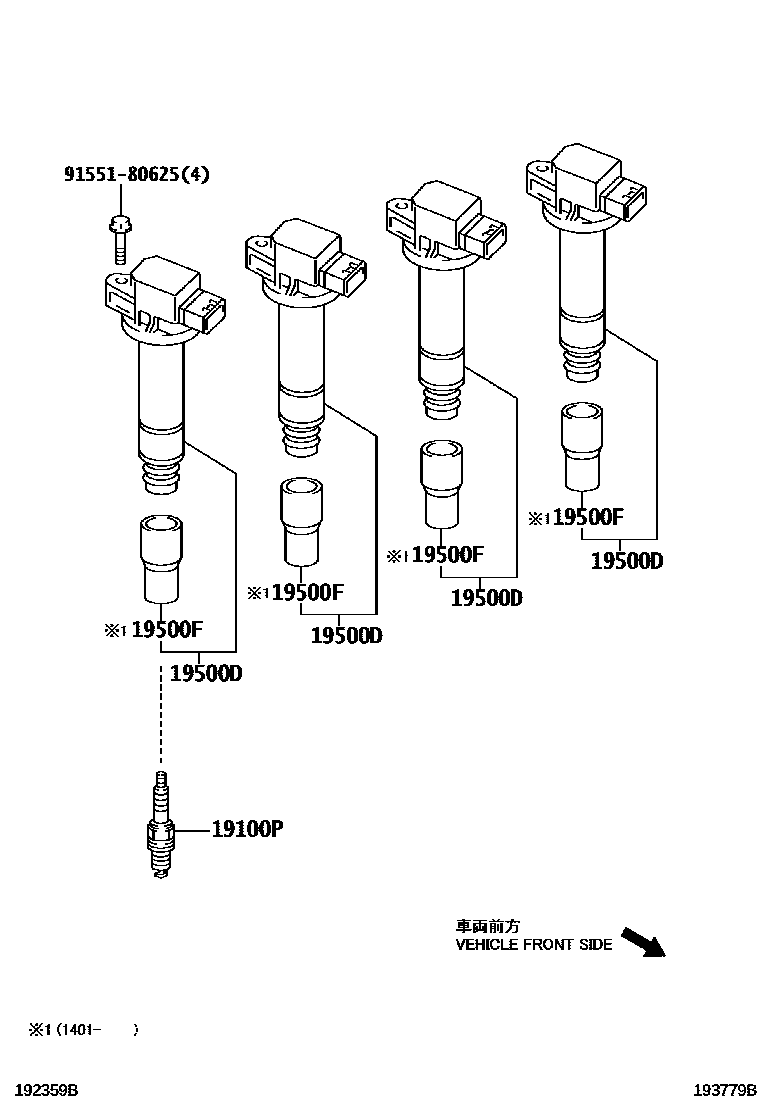

Parts diagram
19100PPLUG, SPARK
main90919-01164×4i201108-201407
K16R-U11
main90919-01176×4i201108-201407
K16R-U
main90919-01240×4i201609-201701
SK16R11
19500DCOIL, IGNITION, NO.1
main90919-02265×4i201108-201407
19500FCAP, PLUG
main90919-11009×4i201401-201407
9155180625
main91551-80625

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota YARIS

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota YARIS. Key components include: PLUG, SPARK, COIL, IGNITION, NO.1, CAP, PLUG.
