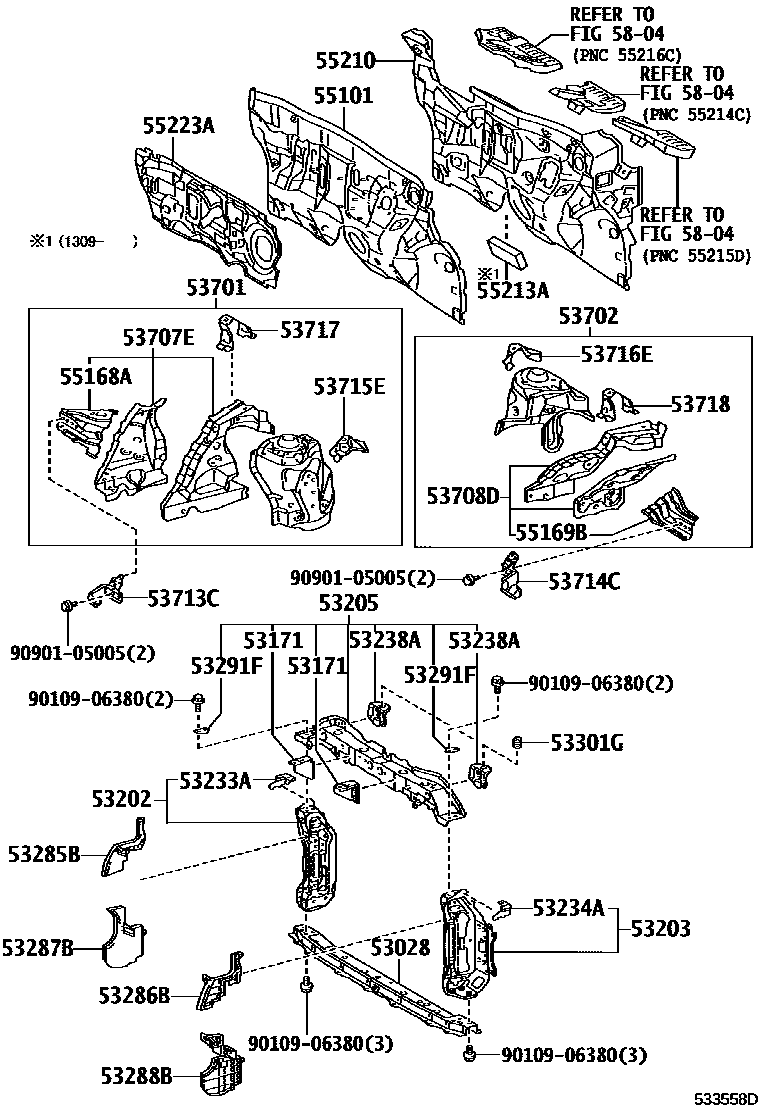

Toyota YARIS — FRONT FENDER APRON & DASH PANEL
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
53171RETAINER, RADIATOR SUPPORT
RH
LH
RH
LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53233ABRACKET, HEADLAMP, NO.1 RH
53234ABRACKET, HEADLAMP, NO.1 LH
53238ABRACKET, HOOD BUMPER MOUNTING
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53291FPLATE, RADIATOR SUPPORT
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55213APAD, DASH PANEL SILENCER
5804
9010906380
main90109-06380
9090105005
main90901-05005
33 parts on this diagram · 8 diagrams in section
