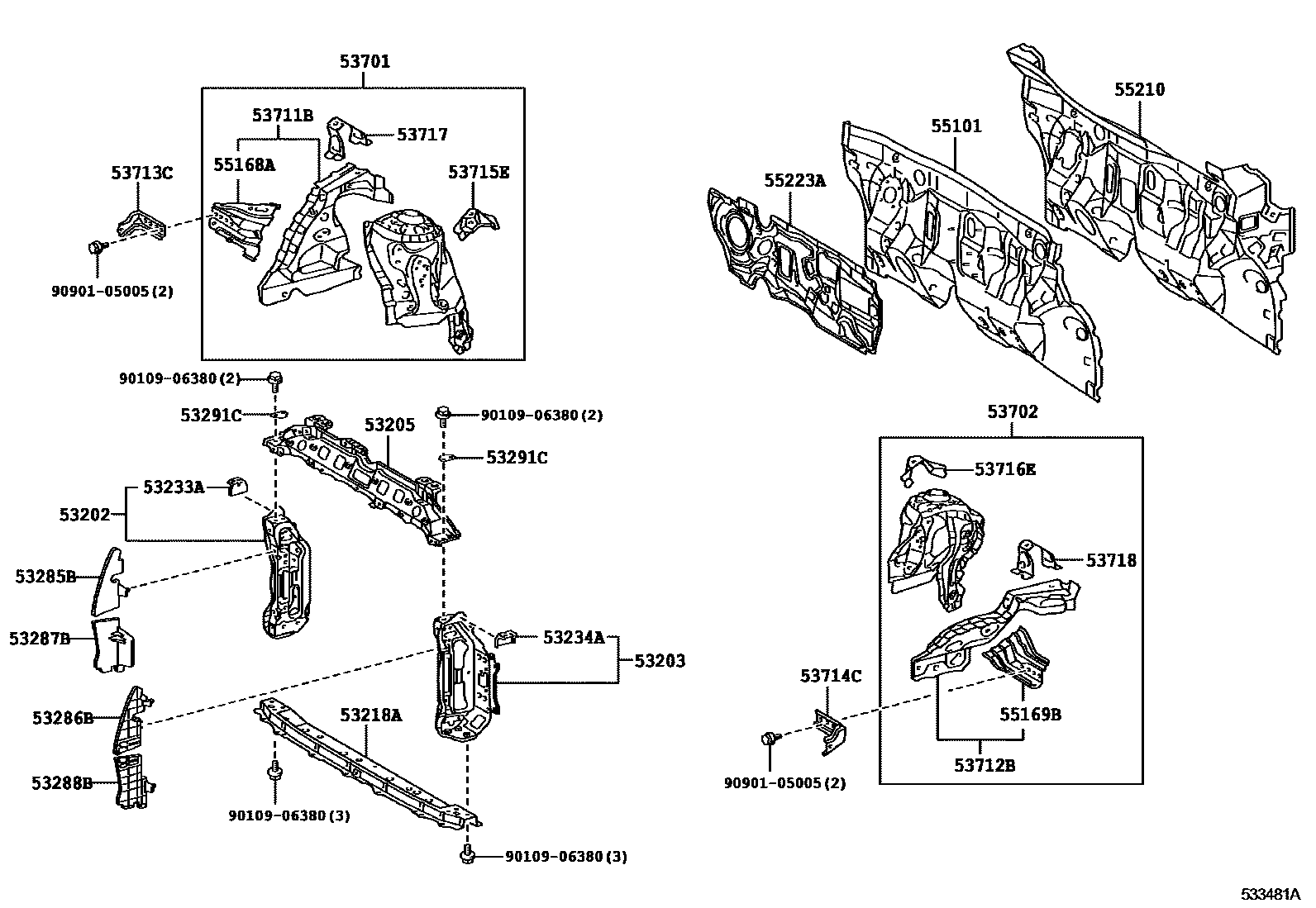

Toyota YARIS — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52901iNCP9#200508-200808

main53202-52905iNCP9#200808-201010

main53202-52910iNCP9#201011-201107

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52901iNCP9#200508-200808

main53203-52903iNCP9#200808-201010

main53203-52908iNCP9#201011-201107

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52090iNCP9#200508-200808

53218ASUPPORT, RADIATOR, LOWER

main53028-52070iNCP9#200808-201107

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-52010iNCP9#200508-200808

main53233-52030iNCP9#200808-201107

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-52020iNCP9#200508-200808

main53234-52040iNCP9#200808-201107

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52170iNCP9#..ARL,GEN200508-200808

main53285-52180iNCP90..GCC200508-200808

main53285-52280iNCP9#..ARL,GEN200808-201107

main53285-52310iNCP9#..GCC200808-201107

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52100iNCP9#..ARL,GEN200508-200808

main53286-52120iNCP90..GCC200508-200808

main53286-52220iNCP9#..ARL,GEN200808-201107

main53286-52250iNCP9#..GCC200808-201107

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52010iNCP9#..ARL,GEN200508-200808

main53287-52030iNCP90..GCC200508-200808

main53287-52090iNCP9#..GCC200808

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52010iNCP9#..ARL,GEN200508-200808

main53288-52030iNCP90..GCC200508-200808

main53288-52090iNCP9#..GCC200808

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-52070×2iNCP9#200508-200808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52150iNCP9#200508-200808

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52150iNCP9#200508-200808

53711BAPRON, FRONT FENDER, FRONT RH

main53707-52030iNCP9#200508-200808

53712BAPRON, FRONT FENDER, FRONT LH

main53708-52030iNCP9#200808-201107

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52010iNCP9#200808-201107

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52020iNCP9#200508-200808

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030iNCP9#200508-200808

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030iNCP9#200508-200808

53717PLATE, FENDER APRON, RH

main53717-52080iNCP9#200508-200808

53718PLATE, FENDER APRON, LH

main53718-52080iNCP9#200508-200808

55101PANEL SUB-ASSY, DASH

main55101-52481iNCP9#..RHD..4FC200508-200808

main55101-52490iNCP90..LHD..5F200508-200808

main55101-52500iNCP9#..LHD..4FC200808-201108

main55101-52690iNCP9#..RHD..5F200508-200808

sub55101-52471

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130iNCP9#200508-200808

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130iNCP9#200508-200808

55210INSULATOR ASSY, DASH PANEL

main55210-52170iNCP9#..RHD200508-200604

main55210-52171iNCP9#..RHD200808-200908

main55210-52172iNCP9#..RHD200909-201107

sub55210-52173

main55210-52180iNCP90..LHD200508-200808

sub55210-52181

55223AINSULATOR, DASH PANEL, OUTER

main55223-52080iNCP9#..RHD..4FC200508-200806

main55223-52090iNCP90..LHD..4FC200508-200806

main55223-52100iNCP9#..RHD..4FC200807-200808

sub55223-52101

main55223-52110iNCP90..LHD..4FC200807-200808

9010906380

main90109-06380

9090105005

main90901-05005

28 parts on this diagram · 5 diagrams in section
