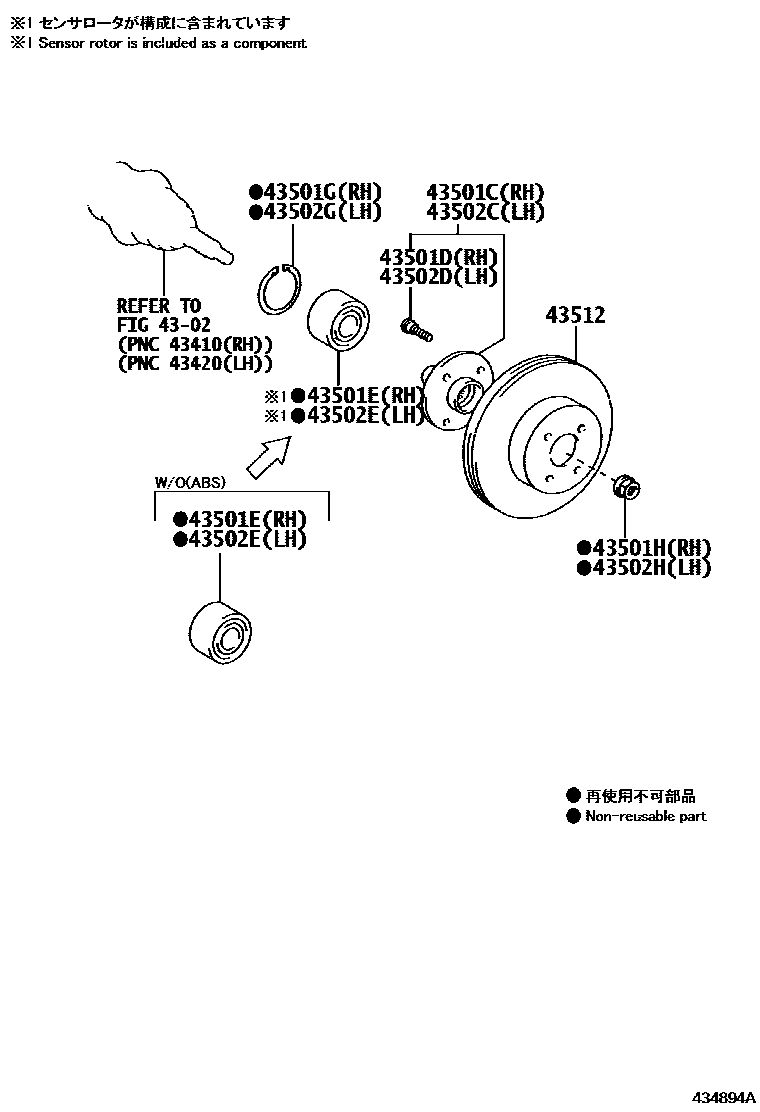

Toyota YARIS — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52030i200808

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i200601-200808

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079supersedes 90363-40082i200601-200808

ABS-WITH(W/0 BRAKE ASSIST)

main90363-40082i200708-200808

GCC BUSINESS PACKAGE

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003i200601-200808

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200601-200808

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52030i200808

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i200808

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079supersedes 90363-40082i200601-200808

ABS-WITH(W/0 BRAKE ASSIST)

main90363-40082i200808-201108

GCC BUSINESS PACKAGE

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003i200601-200808

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200601-200808

43512DISC, FRONT

main43512-52120×2i200601-200808

12 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota YARIS

This section contains 12 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota YARIS. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
