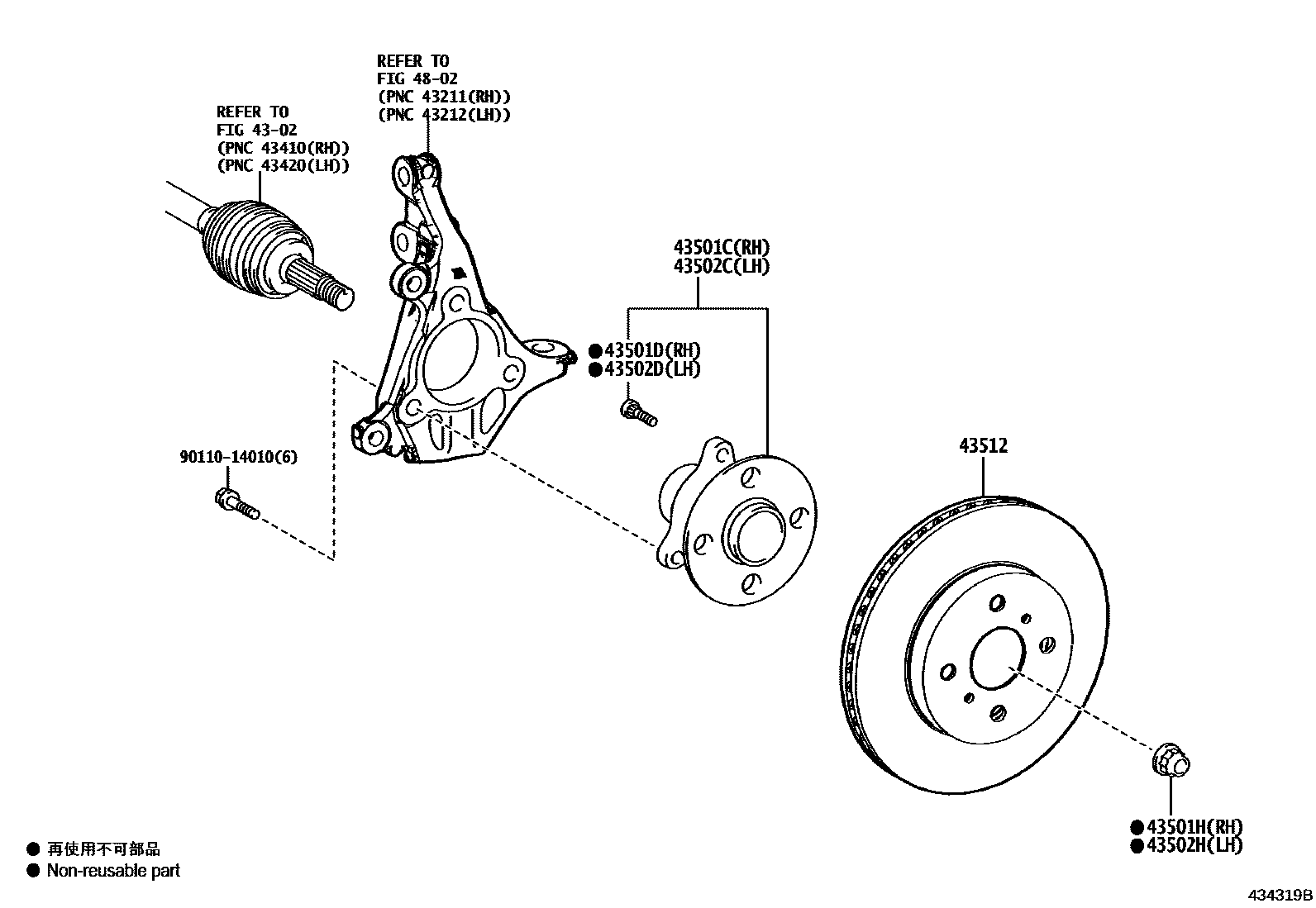

Toyota YARIS — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-K0020iMXPA10..6F202005-202501

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMXPA10..6F202005-202501

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMXPA10..6F202005-202501

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-K0020iMXPA10..6F202005-202501

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMXPA10..6F202005-202501

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMXPA10..6F202005-202501

43512DISC, FRONT

main43512-K0010iMXPA10..6F202005-202501

4802

9011014010

main90110-14010

10 parts on this diagram · 1 diagram in section
