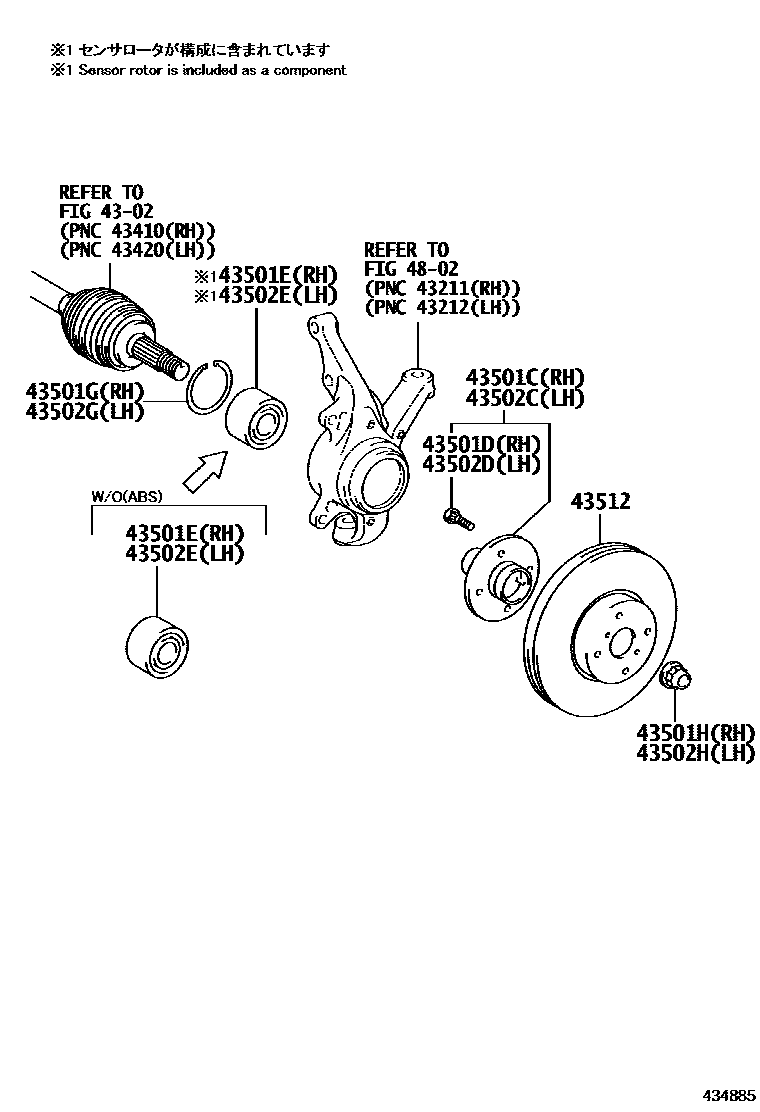

Toyota YARIS — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52030i201108-201407

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i201108-201407

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079i201407-201609

main90369-40009i201610-201701

main90363-40082i201108-201407

ABS-WITHOUT

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003i201108-201407

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201108-201407

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52030i201407-201701

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i201407-201701

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079i201407-201609

main90369-40009i201610-201701

main90363-40082i201108-201407

ABS-WITHOUT

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003i201108-201407

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201108-201407

43512DISC, FRONT

main43512-52120×2i201108-201407

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota YARIS

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota YARIS. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
