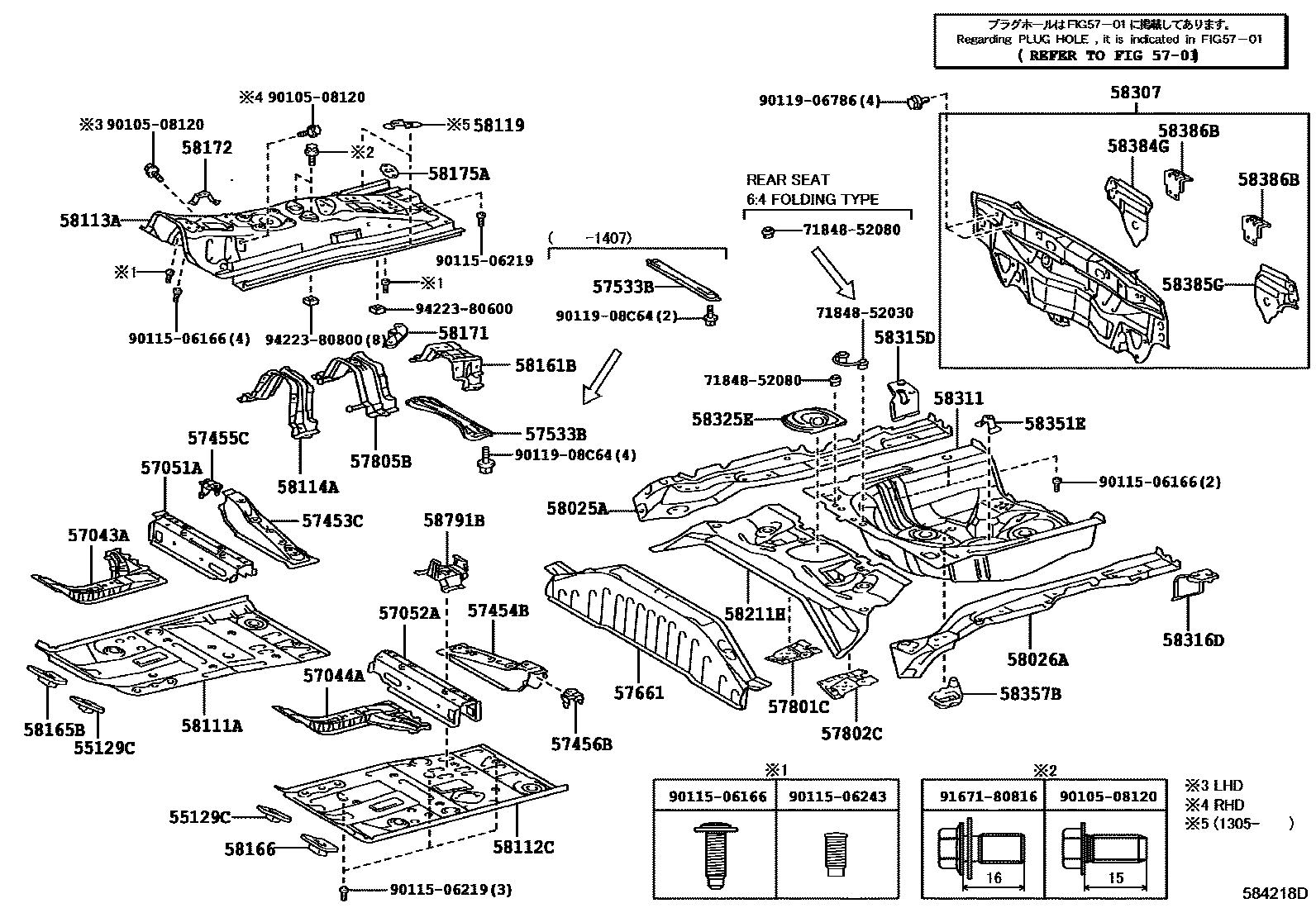

Toyota YARIS — FLOOR PAN & LOWER BACK PANEL
55129CCOVER, DASH PANEL HOLE
RH
LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57533BBRACE, FRONT FLOOR, CENTER
57661PANEL, REAR FLOOR SIDE, FRONT RH
57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH
57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58119PLATE, FRONT FLOOR SIDE, FRONT
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58211HPAN, CENTER FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58357BBRACKET, ACTUATOR COVER, NO.3 RH
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58791BCARRIER, JACK
7184852030ORNAMENT, FRONT SEAT BRACKET, LH
main71848-52030
7184852080ORNAMENT, FRONT SEAT BRACKET, LH
main71848-52080
9010508120
main90105-08120
9011506166
main90115-06166
9011506219
main90115-06219
9011506243
main90115-06243
9011906786
main90119-06786
9011908C64
main90119-08C64
9167180816
main91671-80816
9422380600
main94223-80600
9422380800
main94223-80800
51 parts on this diagram · 1 diagram in section
