Toyota YARIS — CONSOLE BOX & BRACKET

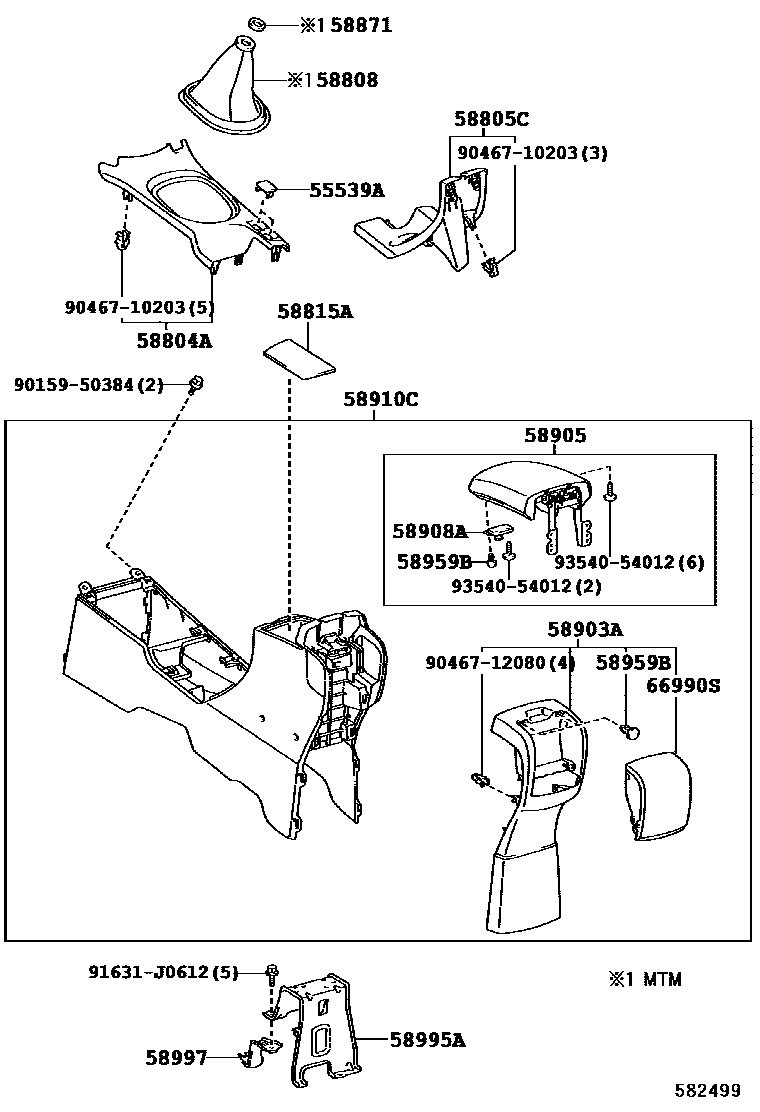

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-52060-B0i200601-201112
DK.GRAY,TRIM1#
sub55539-52060
main55539-52060-C0i201112-201607
BLACK,TRIM1#
sub55539-52060
main55539-52060-E0i200601-201607
GREGE,TRIM4#
sub55539-52060
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-52010-B0i200601-200904
DK.GRAY,TRIM1#
sub58804-52011
main58804-52010-E0i200601-200904
GREGE,TRIM4#
sub58804-52011
main58804-52011-B0i200905-201307
DK.GRAY,TRIM1#
main58804-52011-E0i200905-201307
GREGE,TRIM4#
main58804-52020-B0i200601-200904
DK.GRAY,TRIM1#
sub58804-52021
main58804-52020-E0i200601-200904
GREGE,TRIM4#
sub58804-52021
main58804-52021-B0i200905-201307
DK.GRAY,TRIM1#
main58804-52021-E0i200905-201307
GREGE,TRIM4#
main58804-52030-B0i200601-200904
DK.GRAY,TRIM1#
sub58804-52031
main58804-52030-E0i200601-200904
GREGE,TRIM4#
sub58804-52031
main58804-52031-B0i200905-201607
DK.GRAY,TRIM1#
main58804-52031-E0i200905-201607
GREGE,TRIM4#
main58804-52040-B0i200601-200904
DK.GRAY,TRIM1#
sub58804-52041
main58804-52040-E0i200601-200904
GREGE,TRIM4#
sub58804-52041
main58804-52041-B0i200905-201607
DK.GRAY,TRIM1#
main58804-52041-E0i200905-201607
GREGE,TRIM4#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-52020-B0i200601-200604
DK.GRAY,TRIM1#
sub58805-52021
main58805-52020-E0i200601-200604
GREGE,TRIM4#
sub58805-52021
main58805-52021-B0i200605-201607
DK.GRAY,TRIM1#
main58805-52021-E0i200605-201607
GREGE,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-52070-B0i200601-200808
DK.GRAY,TRIM1#,4#
main58808-52070-B0i200808-201607
DK.GRAY,TRIM1#
main58808-52070-E0i200808-201607
ASH BROWN,TRIM4#
58815ACARPET, CONSOLE BOX
main58815-52060i200601-201006
sub58815-52061
58871CUSHION, CONSOLE BOX
main58871-20060i200601-200808
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-52010-B0i200601-201607
DK.GRAY,TRIM1#
main58903-52010-E0i200601-201607
GREGE,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-52010-B0i200601-201106
DK.GRAY,TRIM1#
sub58905-52011
main58905-52010-E0i200601-201106
GREGE,TRIM4#
sub58905-52011
main58905-52011-B0i201107-201607
DK.GRAY,TRIM1#
main58905-52011-E0i201107-201607
GREGE,TRIM4#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-12080i201107
main58908-32021i200601-201106
sub58908-12080
58910CBOX ASSY, CONSOLE, REAR
main58910-52050-B0i200601-201106
DK.GRAY,TRIM1#
sub58910-52051
main58910-52050-E0i200601-201106
GREGE,TRIM4#
sub58910-52051
main58910-52051-B0i201107-201607
DK.GRAY,TRIM1#
main58910-52051-E0i201107-201607
GREGE,TRIM4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060i200601-200808
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-52020i200601-200808
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
main58997-52010i200601-200808
66990SCONSOLE BOX CUP HOLDER
main66990-52010-B0i200601-201607
DK.GRAY,TRIM1#
main66990-52010-E0i200601-201607
GREGE,TRIM4#
9015950384
main90159-50384
9046710203
main90467-10203
9046712080
main90467-12080
91631J0612
main91631-J0612
9354054012
main93540-54012

19 parts on this diagram · 1 diagram in section
