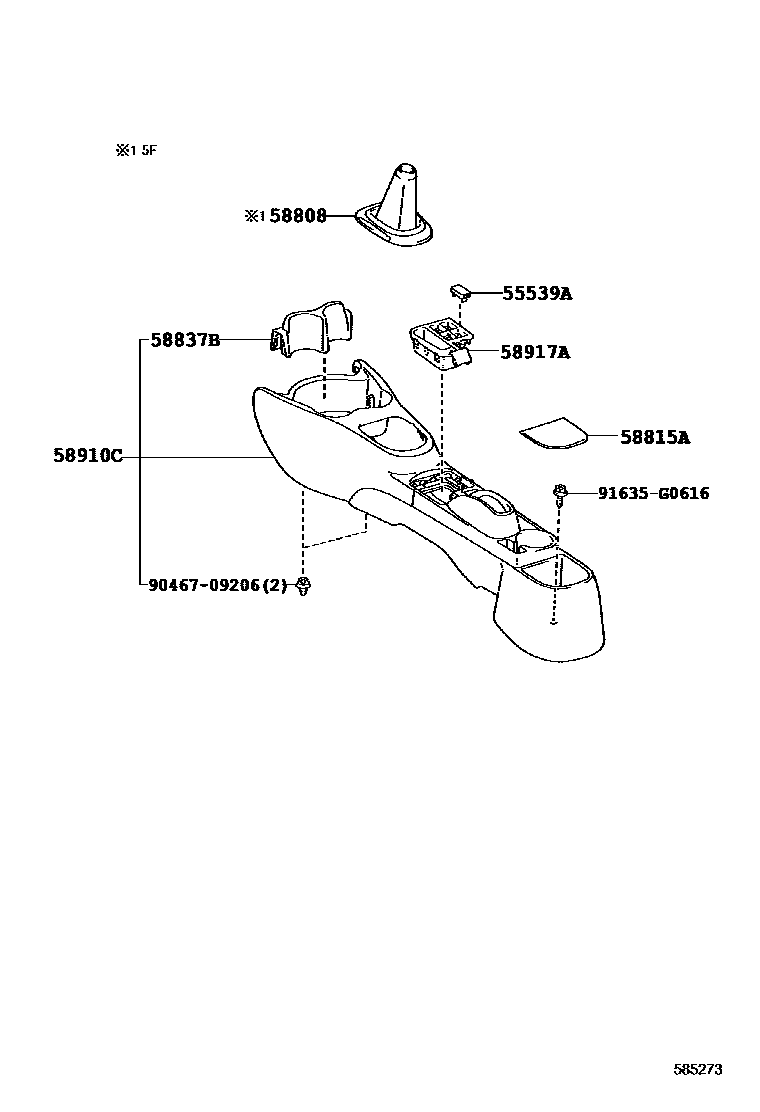

Toyota YARIS — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52070-C0iNCP13#201407-201507

BLACK,TRIM2#,4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52150-C0iNCP130..5F201407-201701

BLACK,TRIM2#,4#

main58808-52220-C0iNCP131..5F201407-201701

BLACK,TRIM2#,4#

main58808-52160-C0iNCP131..5D..5F..GEN201108-201407

S PACKAGE,BLACK,TRIM1#

main58808-52180-C0iNCP131..3D..5F..ARL201108-201407

S PACKAGE,BLACK,TRIM1#

main58808-52230-C0supersedes 58808-52240-C0iNCP131..5F201407-201701

S PACKAGE,BLACK,TRIM2#

main58808-52250-C0supersedes 58808-52240-C0iNCP131..5F201701

S PACKAGE,BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-52100iNCP13#201108-201407

58837BBOX, CONSOLE CUP HOLDER

main58837-52020-C0iNCP13#201108-201407

BLACK,TRIM1#

58910CBOX ASSY, CONSOLE, REAR

main58910-52120-C0iNCP13#201108-201407

BLACK,TRIM1#

main58910-52260-C0iNCP13#201407-201701

BLACK,TRIM2#,4#

58917ACOVER, CONSOLE BOX, REAR

main58917-52110-C0iNCP13#201108-201407

BLACK,TRIM1#

9046709206

main90467-09206

91635G0616

main91635-G0616

8 parts on this diagram · 1 diagram in section
