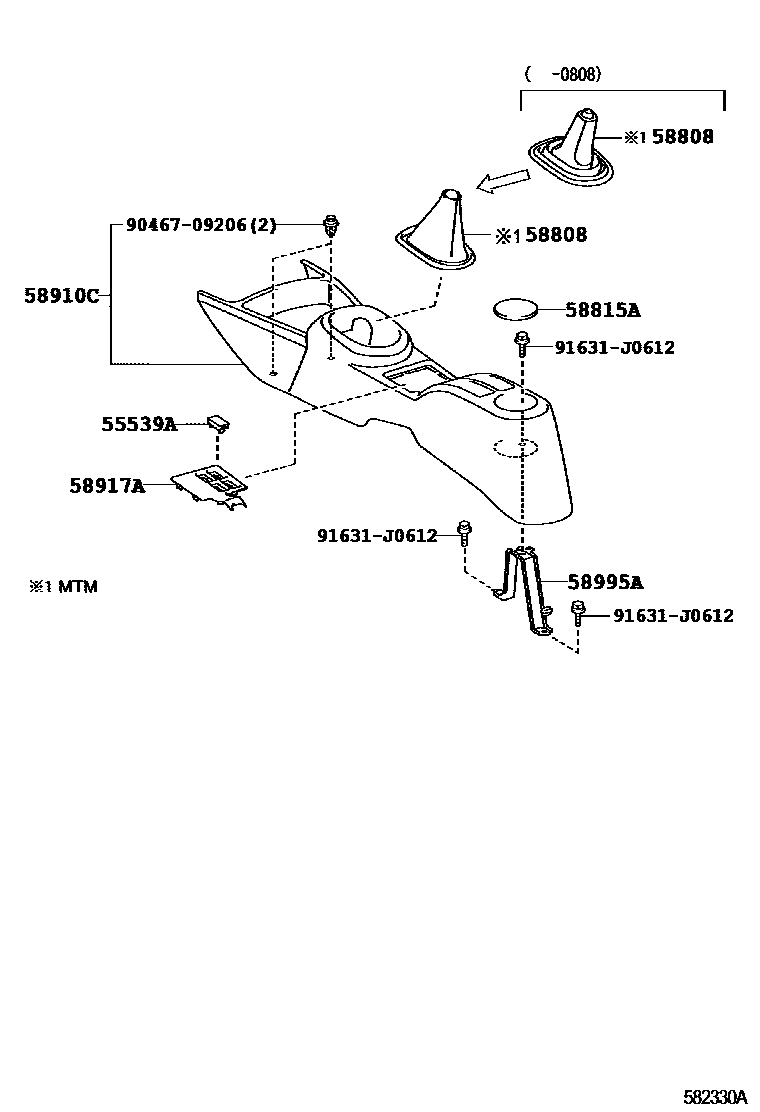

Toyota YARIS — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-B0i200508-200704

DK.GRAY,TRIM18,19

main55539-52070-B0i200705-201012

DK.GRAY,TRIM1#

main55539-52070-B0i200808-201012

STEERING WHEEL-LEAT.3SP,A/BST.SW B&AUDIO-AM/FM CD 6SPEAKER EXTRA W(BLUE TOOTH),DK.GRAY,TRIM1#

main55539-52070-B0i200808-201012

POWER DOOR LOCK-W(DRIVER+PASSENGER),DK.GRAY,TRIM1#

main55539-52070-B0i200808-201012

AUDIO-AM/FM CD 4SPEAKER EXTRA,DK.GRAY,TRIM1#

main55539-52070-B0i200808-201012

POWER DOOR LOCK-W(DRIVER+PASSENGER)&POWER WINDOW-WITH(FRONT & REAR),DK.GRAY,TRIM1#

main55539-52070-C0i201012-201107

STEERING WHEEL-LEAT.3SP,A/BST.SW B&AUDIO-AM/FM CD 6SPEAKER EXTRA W(BLUE TOOTH),BLACK,TRIM1#

main55539-52070-C0i201012-201107

TIRE & DISK WHEEL-185/60R15 5.5J ALUMINUM,BLACK,TRIM1#

main55539-52070-C0i201012-201107

TIRE & DISK WHEEL-185/60R15 5.5J BLACK,BLACK,TRIM1#

main55539-52070-C0i201012-201107

POWER DOOR LOCK-W(DRIVER+PASSENGER),BLACK,TRIM1#

main55539-52070-C0i201012-201107

AUDIO-AM/FM CD 4SPEAKER EXTRA,BLACK,TRIM1#

main55539-52070-C0i201012-201107

BLACK,TRIM1#

main55539-52070-C0i201012-201107

POWER DOOR LOCK-W(DRIVER+PASSENGER)&POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52060-B1i200508-200808

DK.GRAY,TRIM18,19

main58808-52090-B0i200808-200911

DK.GRAY,TRIM1#

main58808-52170-B0i200911-201107

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-52050i200508-201105

main58815-52110i201106-201107

58910CBOX ASSY, CONSOLE, REAR

main58910-52020-B0i200508-200808

DK.GRAY,TRIM18,19

main58910-52020-B0i200808-201107

DK.GRAY,TRIM1#

58917ACOVER, CONSOLE BOX, REAR

main58917-52040-B0i200508-200808

DK.GRAY,TRIM18,19

main58917-52040-B0i200808-200901

DK.GRAY,TRIM1#

main58917-52041-B0i200902-201107

DK.GRAY,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-52010i200508-201107

9046709206

main90467-09206

91631J0612

main91631-J0612

8 parts on this diagram · 1 diagram in section
