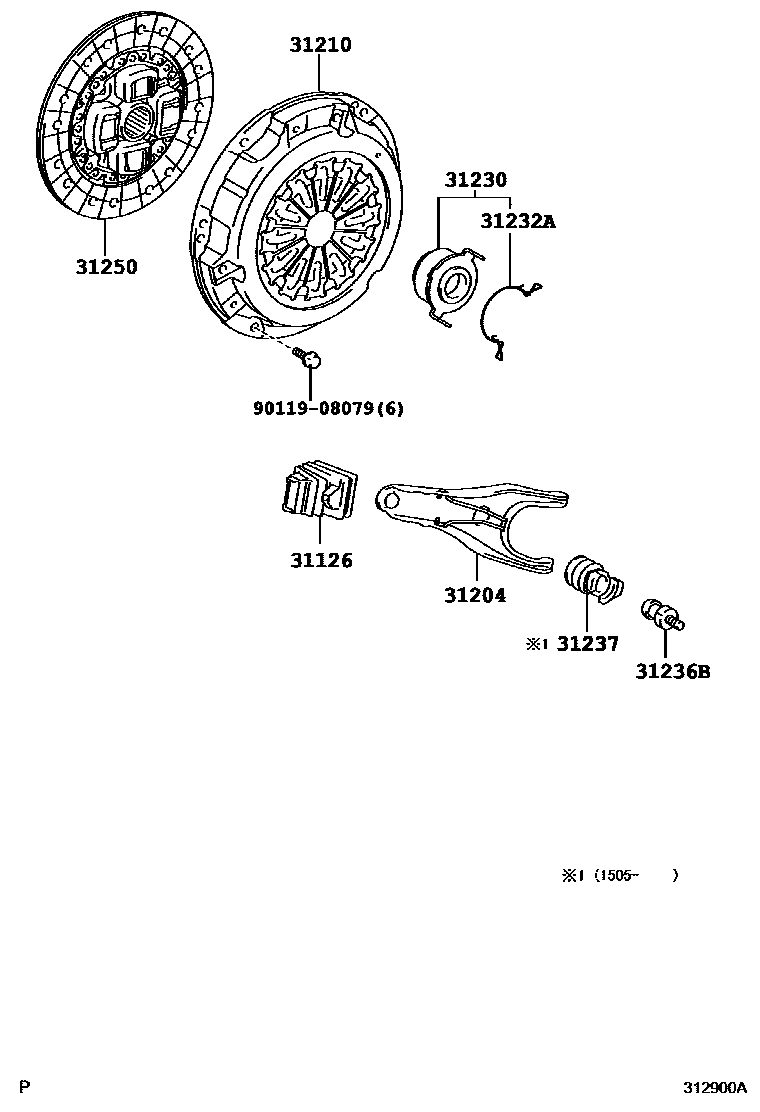

Toyota YARIS — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP13#..5F201108-201407

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP130..5F201701-201709

main31204-52070iNCP130..5F201709-201711

31210COVER ASSY, CLUTCH

main31210-12282iNCP130..5F201108-201403

main31210-52052iNCP131..5F201108-201203

main31210-52053iNCP131..5F201204-201404

main31210-52180iNCP131..5F201404-201407

main31210-52190iNCP130..5F201701

31230BEARING ASSY, CLUTCH RELEASE

main31230-12181iNCP13#..5F201407-201701

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP13#..5F201108-201407

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP13#..5F201701

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-52010iNCP13#..5F201701

31250DISC ASSY, CLUTCH

main31250-12393iNCP130..5F201407-201701

main31250-52050iNCP131..5F201407-201701

9011908079

main90119-08079

9 parts on this diagram · 2 diagrams in section
