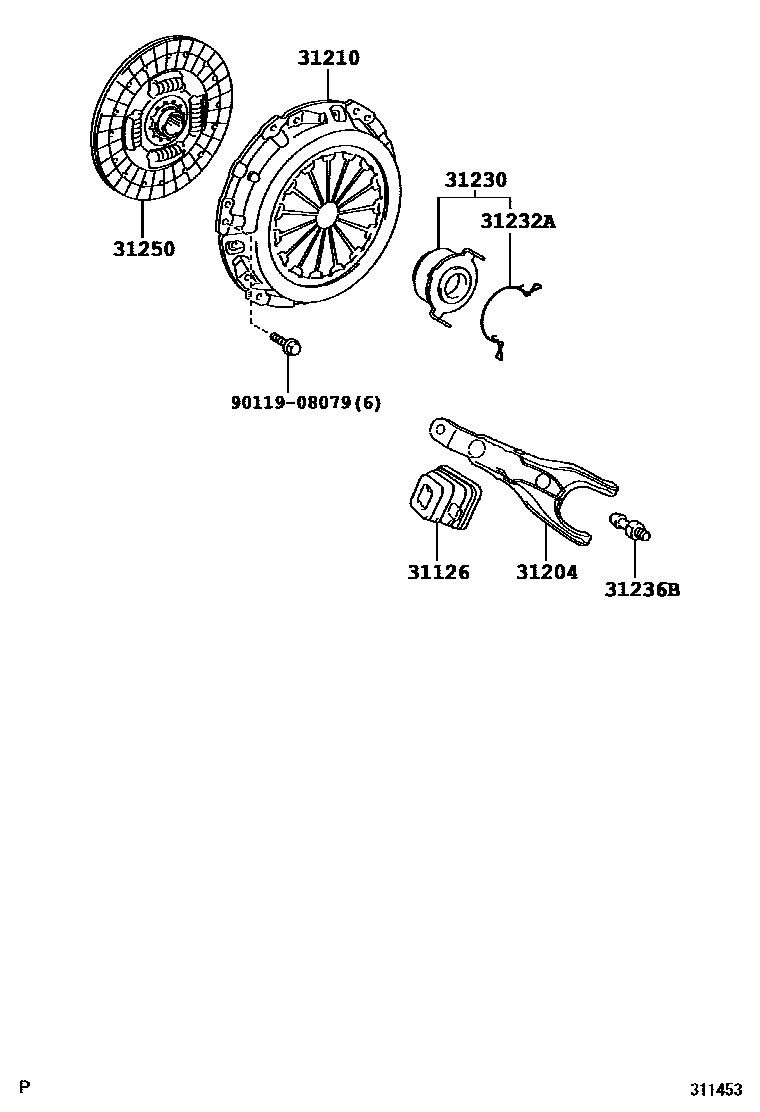

Toyota YARIS — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP9#..5F200808

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP9#..5F200808-201108

31210COVER ASSY, CLUTCH

main31210-12210iNCP90..5F200508-200607

main31210-12280iNCP90..5F200608-200711

main31210-12281iNCP90..5F200712-200807

main31210-12282iNCP90..5F200808-201108

main31210-52050iNCP91..5F200508-200602

main31210-52051iNCP91..5F200603-200702

main31210-52052iNCP91..5F200703-200808

sub31210-52053

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP9#..5F200508-200808

main31230-12181iNCP9#..5F200812

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP9#..5F200508-200808

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP9#..5F200508-200808

31250DISC ASSY, CLUTCH

main31250-12392iNCP90..5F200508-200808

main31250-12393iNCP90..5F200901

main31250-52050iNCP91..5F200808

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
