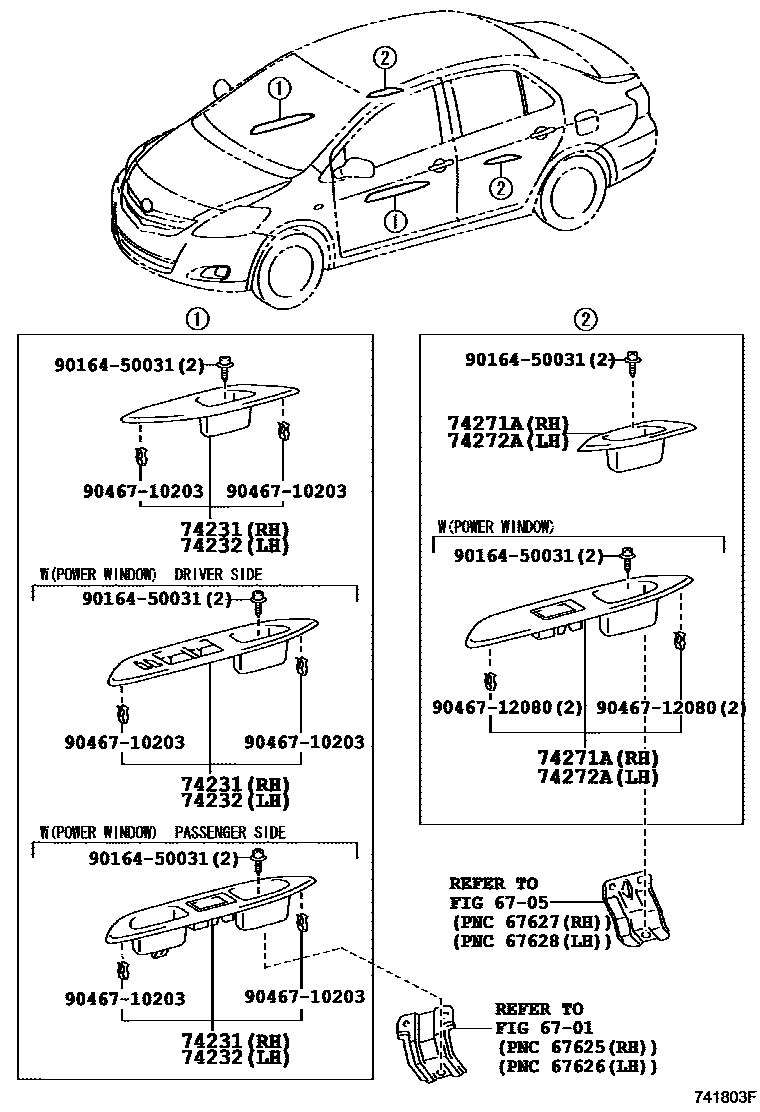

Toyota YARIS — ARMREST & VISOR
6701FRONT DOOR PANEL & GLASS
6705REAR DOOR PANEL & GLASS
74231PANEL, FRONT ARMREST BASE, UPPER RH
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
SILVER
POWER DOOR LOCK-WITH,DK.GRAY,TRIM1#,4#
POWER DOOR LOCK-WITH,ASH BROWN,TRIM4#
POWER DOOR LOCK-WITH&DOOR INSIDE HANDLE-PLATING,DK.GRAY,TRIM1#,4#
DOOR INSIDE HANDLE-PLATING,DK.GRAY,TRIM1#,4#
POWER DOOR LOCK-WITH,DK.GRAY,TRIM1#
POWER DOOR LOCK-WITH,ASH BROWN,TRIM4#
POWER DOOR LOCK-WITH&DOOR INSIDE HANDLE-PLATING,DK.GRAY,TRIM1#,4#
DOOR INSIDE HANDLE-PLATING,SILVER
POWER DOOR LOCK-WITH&DOOR INSIDE HANDLE-PLATING,SILVER
74232PANEL, FRONT ARMREST BASE, UPPER LH
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
SILVER
POWER DOOR LOCK-WITH,DK.GRAY,TRIM1#
POWER DOOR LOCK-WITH,ASH BROWN,TRIM4#
POWER DOOR LOCK-WITH&DOOR INSIDE HANDLE-PLATING,DK.GRAY,TRIM1#,4#
DOOR INSIDE HANDLE-PLATING,DK.GRAY,TRIM1#,4#
POWER DOOR LOCK-WITH,DK.GRAY,TRIM1#,4#
POWER DOOR LOCK-WITH,ASH BROWN,TRIM4#
POWER DOOR LOCK-WITH&DOOR INSIDE HANDLE-PLATING,DK.GRAY,TRIM1#,4#
DOOR INSIDE HANDLE-PLATING,SILVER
POWER DOOR LOCK-WITH&DOOR INSIDE HANDLE-PLATING,SILVER
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
SILVER
DOOR INSIDE HANDLE-PLATING,DK.GRAY,TRIM1#,4#
DOOR INSIDE HANDLE-PLATING,SILVER
POWER DOOR LOCK-WITH,DK.GRAY,TRIM1#
POWER DOOR LOCK-WITH,ASH BROWN,TRIM4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
SILVER
DOOR INSIDE HANDLE-PLATING,DK.GRAY,TRIM1#,4#
DOOR INSIDE HANDLE-PLATING,SILVER
POWER DOOR LOCK-WITH,DK.GRAY,TRIM1#
POWER DOOR LOCK-WITH,ASH BROWN,TRIM4#
9016450031
main90164-50031
9046710203
main90467-10203
9046712080
main90467-12080
9 parts on this diagram · 2 diagrams in section
ARMREST & VISOR for Toyota YARIS
This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota YARIS. Key components include: FRONT DOOR PANEL & GLASS, REAR DOOR PANEL & GLASS, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH.
