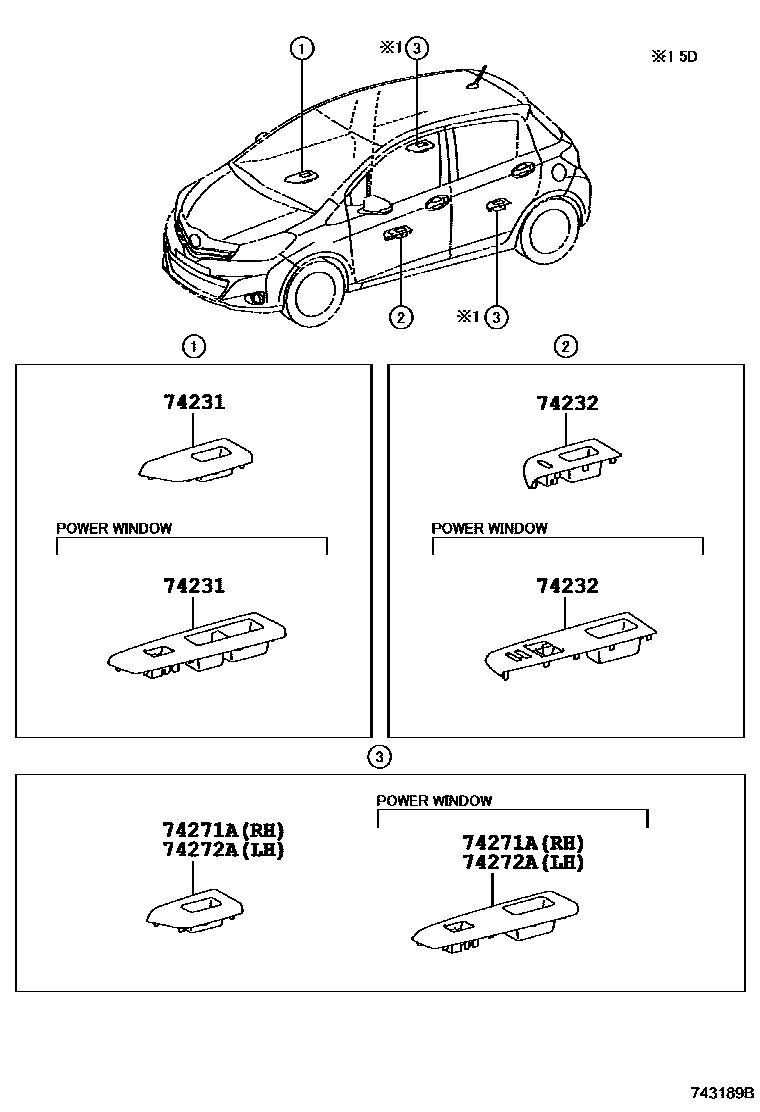

Toyota YARIS — ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
BLACK,TRIM1#
POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP),BLACK,TRIM1#
POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP),BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
SILVER METALLIC,TRIM2#,4#
BLACK,TRIM2#
74232PANEL, FRONT ARMREST BASE, UPPER LH
POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP),BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM2#
SILVER METALLIC,TRIM2#,4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&POWER WINDOW-FRONT & REAR(DRIVER ONETOUCH UP/DOWN),BLACK,TRIM1#
POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP),BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#,4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
BLACK,TRIM1#
POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP),BLACK,TRIM1#
POWER DOOR LOCK-W(*DRS),KEY CYLINDER:W(*DRP)&POWER WINDOW-FRONT & REAR(DRIVER ONETOUCH UP/DOWN),BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM2#
4 parts on this diagram · 4 diagrams in section
