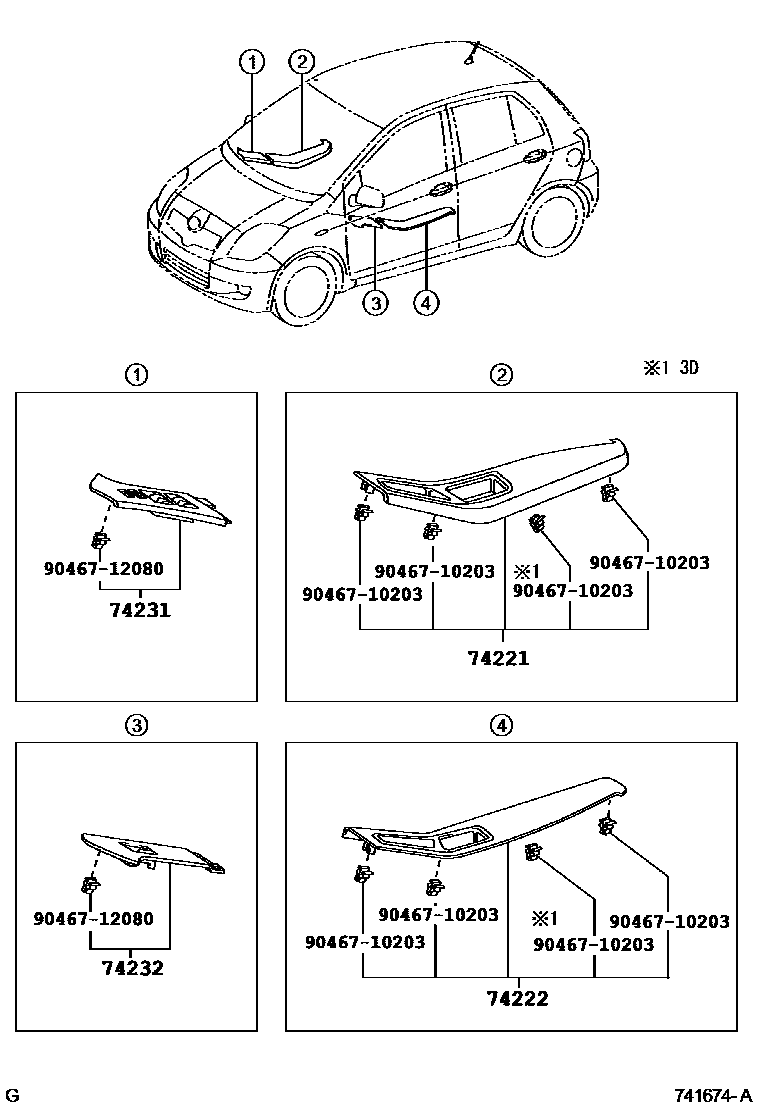

Toyota YARIS — ARMREST & VISOR

74221COVER, DOOR ARMREST, RH

main74221-52010-B0i200808-201107

GRAY,TRIM18

main74221-52010-B1i200808-201107

DK.GRAY,TRIM18

main74221-52020-B0i200508-200808

GRAY,TRIM18,19

74222COVER, DOOR ARMREST, LH

main74222-52010-B0i200808-201107

GRAY,TRIM18

main74222-52010-B1i200808-201107

DK.GRAY,TRIM18

main74222-52020-B0i200508-200808

GRAY,TRIM18,19

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52310-B0i201002-201107

GRAY,TRIM1#; POWER DOOR LOCK-WITHOUT,GRAY,TRIM1#

main74231-52310-B1i200808-200812

DK.GRAY,TRIM18

main74231-52290-B0i200903-201107

GRAY,TRIM1#; POWER DOOR LOCK-WITHOUT,GRAY,TRIM1#

main74231-52290-B1i200809-200812

POWER DOOR LOCK-W(DRIVER+PASSENGER),DK.GRAY,TRIM18

main74231-52300-B0i200508-200808

POWER DOOR LOCK-WITH,GRAY,TRIM18,19

main74231-52320-B0i200508-200808

POWER DOOR LOCK-WITH,GRAY,TRIM18,19

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52230-B0i200508-200808

GRAY,TRIM18,19

main74232-52230-B1i200808-200812

DK.GRAY,TRIM18

main74232-52220-B0i200903-201107

GRAY,TRIM1#; POWER DOOR LOCK-WITHOUT,GRAY,TRIM1#

main74232-52220-B1i200809-200812

POWER DOOR LOCK-W(DRIVER+PASSENGER),DK.GRAY,TRIM18

main74232-52240-B0i200808-201107

POWER DOOR LOCK-W(DRIVER+PASSENGER)&POWER WINDOW-WITH(FRONT & REAR),GRAY,TRIM1#; POWER DOOR LOCK-W(DRIVER+PASSENGER),GRAY,TRIM1#; POWER WINDOW-WITH(FRONT & REAR),GRAY,TRIM1#

main74232-52250-B0i200508-200808

POWER DOOR LOCK-WITH,GRAY,TRIM18,19

9046710203

main90467-10203

9046712080

main90467-12080

6 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota YARIS

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota YARIS. Key components include: COVER, DOOR ARMREST, RH, COVER, DOOR ARMREST, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH.
