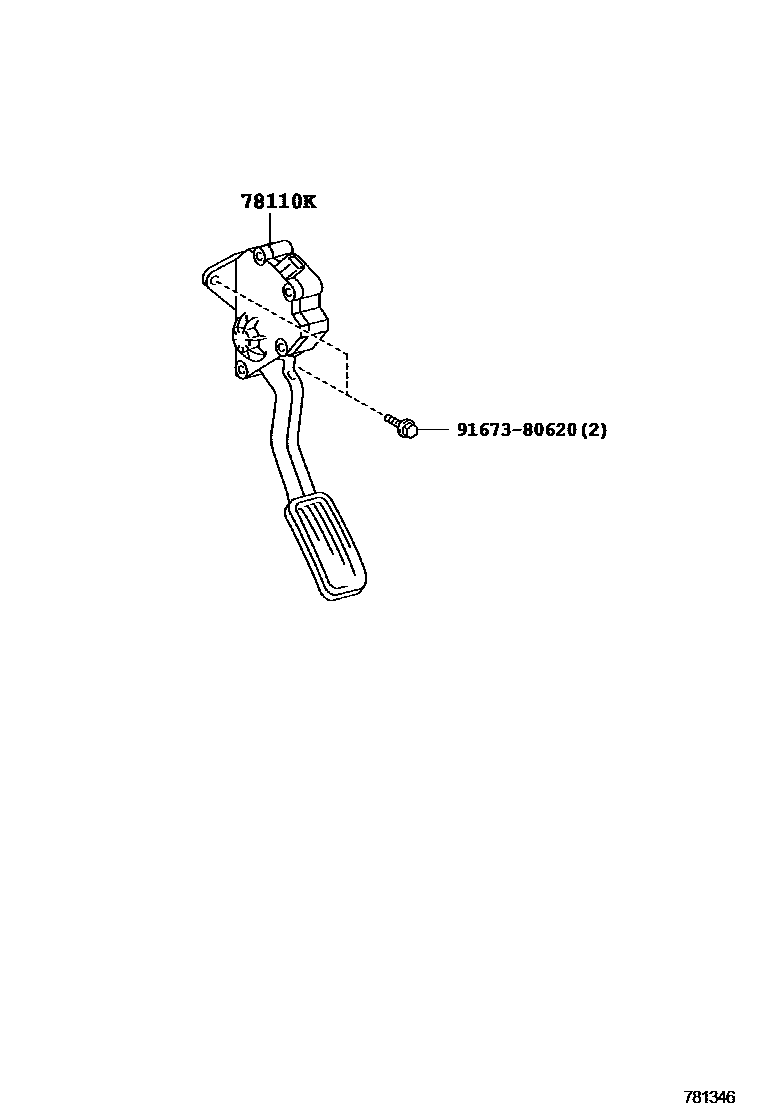

Toyota YARIS — ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-52033iNCP13#..RHD201108-201212

main78110-52053iNCP13#..LHD201108-201407

sub78110-52200

main78110-52100iNCP13#..RHD201301-201407

sub78110-52210

main78110-52110iNCP13#201407-201601

main78110-52220iNCP13#201602-201701

9167380620

main91673-80620

2 parts on this diagram · 2 diagrams in section
