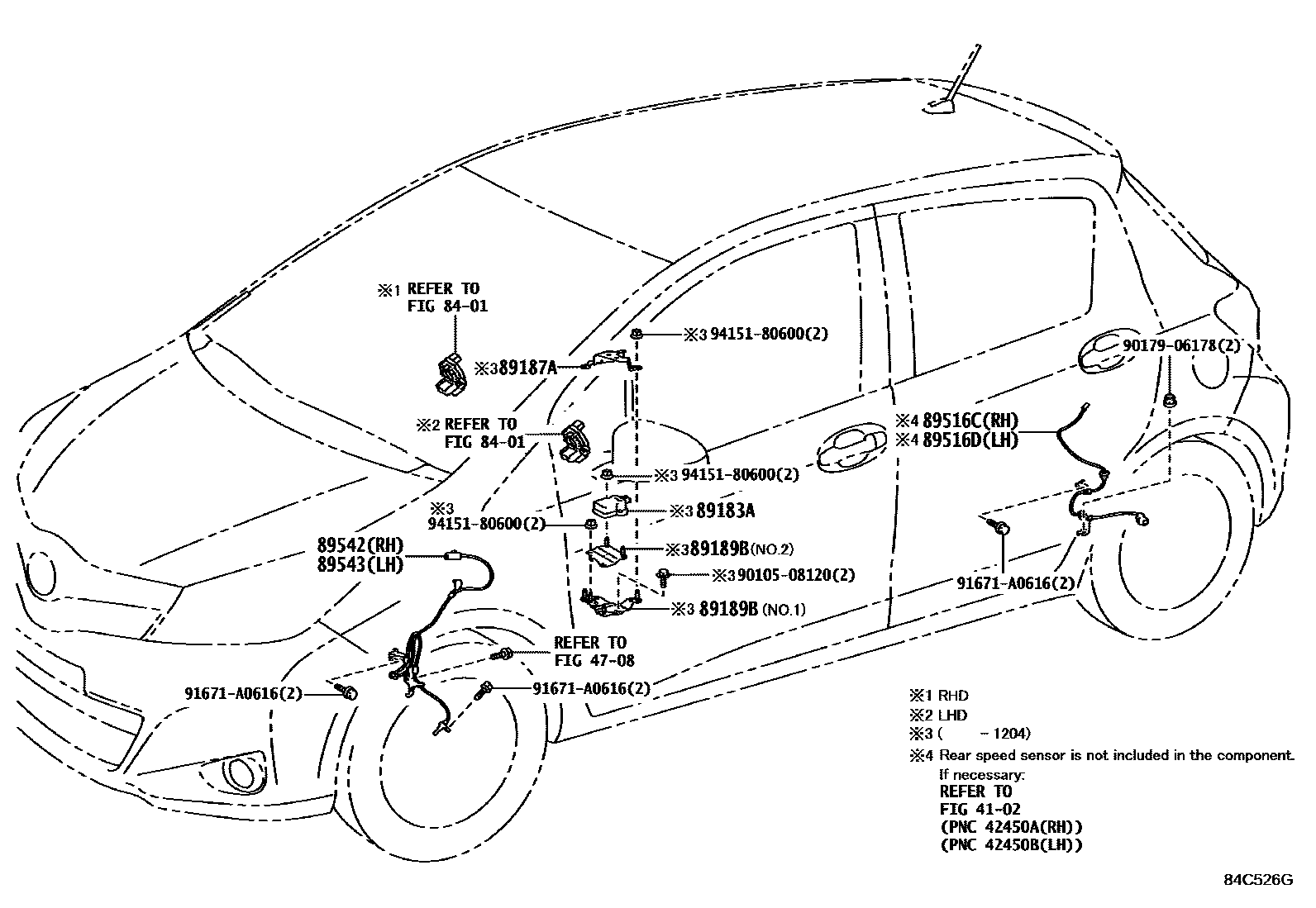

Toyota YARIS — ABS & VSC

4102

4708

8401

89183ASENSOR, YAWRATE

main89183-48030iNCP13#..ARL201108-201204

89187APROTECTOR, YAWRATE SENSOR

main89187-52030iNCP13#..ARL201108-201204

89189BBRACKET, YAWRATE SENSOR

main89189-52010iNCP13#..ARL201108-201204

NO.1

main89189-52020iNCP13#..ARL201108-201204

NO.2

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-52130iNCP13#201108-201701

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-52140iNCP13#201108-201701

89542SENSOR, SPEED, FRONT RH

main89542-52090iNCP13#201108-202001

89543SENSOR, SPEED, FRONT LH

main89543-52090iNCP13#201108-202001

9010508120

main90105-08120

9017906178

main90179-06178

91671A0616

main91671-A0616

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
