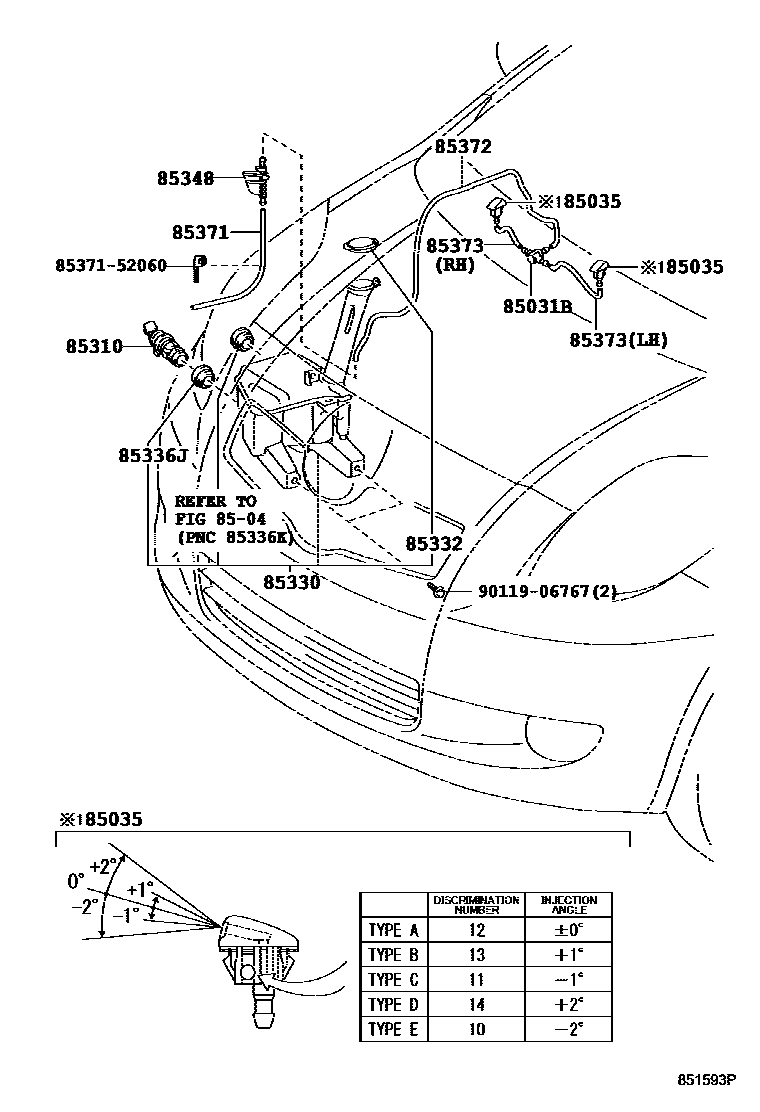

Toyota YARIS (JPP) — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-30080i200508

85035NOZZLE SUB-ASSY, WASHER

main85381-52250×2i200508

TYPE A:REFER ILLUST.

main85381-52280×2i200508

TYPE B:REFER ILLUST.

main85381-52290×2i200508

TYPE C:REFER ILLUST.

main85381-52300×2i200508

TYPE D:REFER ILLUST.

main85381-52310×2i200508

TYPE E:REFER ILLUST.

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i200808-201106

85330JAR ASSY, WINDSHIELD WASHER

main85315-52190i200508

85332CAP, WINDSHIELD WASHER JAR

main85316-52190i200508

85336JPROTECTOR, WASHER JAR

main85336-60300i200508

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85385-52361i200508

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200508

L=1450(*H,L=720)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200508

L=1450(*H,L=510); L=1450(*H,L=780)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i200808-201106

L=1450(*H,L=180),LH,RH

main90099-33299i200508

L=1000(*H,L=315),LH

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

9011906767

main90119-06767

13 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota YARIS (JPP)

This section contains 13 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota YARIS (JPP). Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
