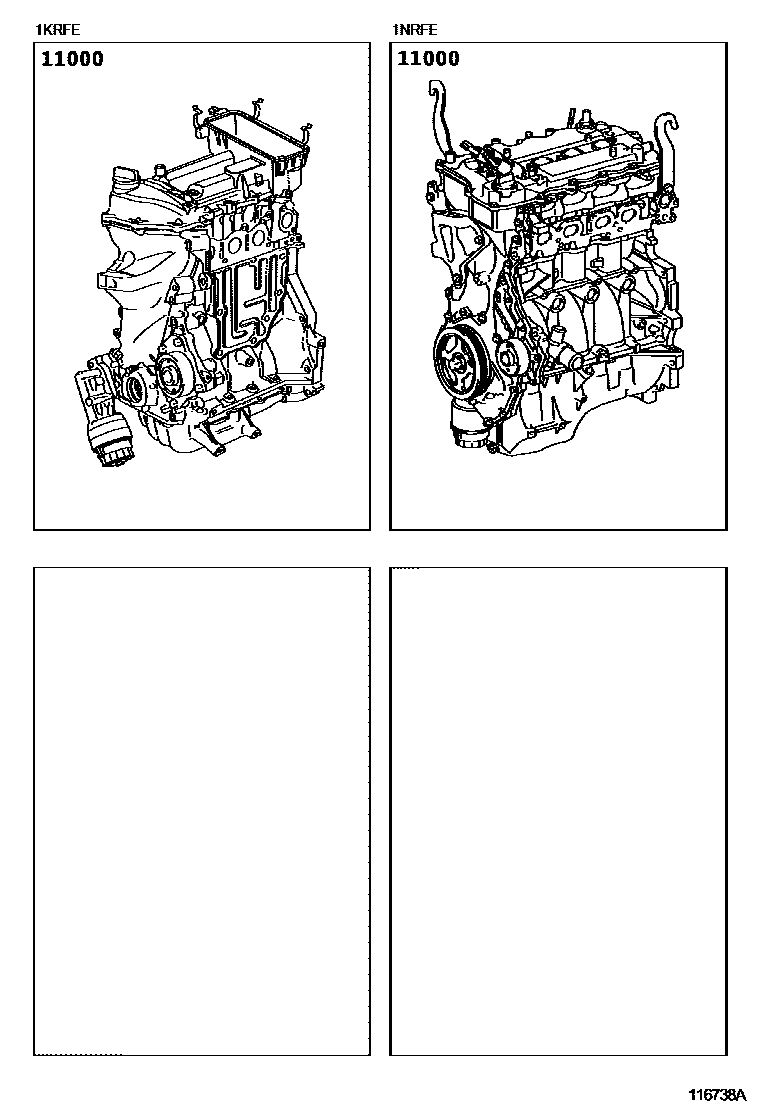

Toyota YARIS (JPP) — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-40260i1KRFE..KSP130201108-201208

sub19000-40261

main19000-47190supersedes 19000-47200i1NRFE..NSP130201208-201301

main19000-47191i1NRFE..NSP130201301-201308

main19000-47310i1NRFE..NSP130201308

main19000-47180supersedes 19000-47170i1NRFE..NSP130..6F201108-201208

WITHOUT(STOP & START SYSTEM)

sub19000-47181

1 parts on this diagram · 1 diagram in section
