Toyota YARIS (JPP) — HEATING & AIR CONDITIONING - SET

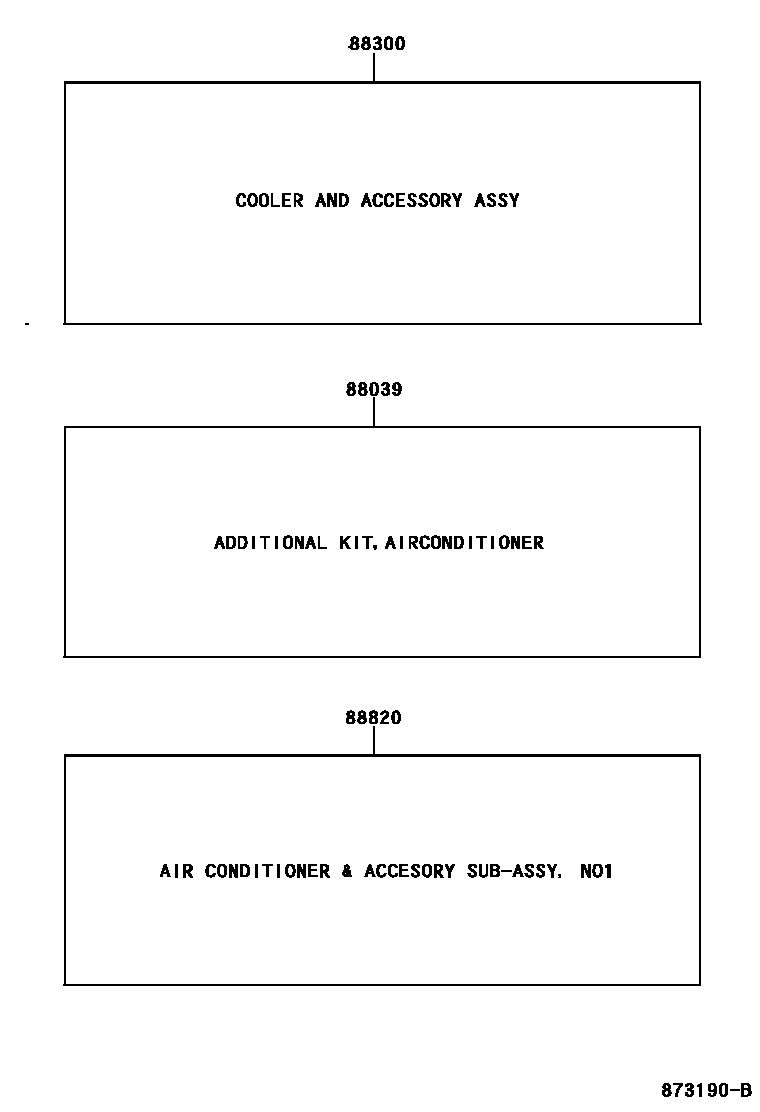

Parts diagram
88039ADDITIONAL KIT,AIRCONDITIONER
main88300-52340i199911-200212
main88300-52350i199912-200008
W(BOOST VENTILATOR)
88300COOLER & ACCESSORY ASSY
main88300-52030i199901-200008
main88300-52031i200008-200212
main88300-52040i199901-200008
W(FREE TRONIC OR POWER STEERING)
main88300-52041i200008-200212
W(FREE TRONIC OR POWER STEERING)
main88300-52050i199901-200008
main88300-52051i200008-200212
main88300-52060i199901-200008
W(FREE TRONIC OR POWER STEERING)
main88300-52061i200008-200212
W(FREE TRONIC OR POWER STEERING)
main88300-52070i199912-200008
W(BOOST VENTILATOR)
main88300-52071i200008-200212
W(BOOST VENTILATOR)
main88300-52080i199901-200008
W(BOOST VENTILATOR); W(BOOST VENTILATOR) & W(FREE TRONIC OR POWER STEERING)
main88300-52081i200008-200212
W(BOOST VENTILATOR & POWER STEERING) OR W(BOOST VENTILATOR & FREE TRONIC); W(BOOST VENTILATOR) & W(FREE TRONIC OR POWER STEERING)
main88300-52090i199908-200008
main88300-52091i200008-200212
main88300-52092i200212-200308
main88300-52093i200308
main88300-52120i199908-200008
main88300-52121i200008-200212
main88300-52122i200212-200308
main88300-52123i200308
main88300-52140i199908-200008
W(BOOST VENTILATOR)
main88300-52141i200008-200212
W(BOOST VENTILATOR)
main88300-52360i200110-200212
main88300-52361i200212-200308
main88300-52362i200308-200312
main88300-52363i200312
main88300-52370i200110-200212
main88300-52371i200212-200308
main88300-52372i200308-200312
main88300-52373i200312
main88300-52380i200110-200212
W(BOOST VENTILATOR)
main88300-52381i200212-200308
W(BOOST VENTILATOR)
main88300-52382i200308-200312
W(BOOST VENTILATOR)
main88300-52383i200312
W(BOOST VENTILATOR)
88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
main88820-52040i200008-200212
main88820-52041i200307
main88820-52050i200212-200307
main88820-52051i200307
main88820-52100i200212-200301
main88820-52101i200301
main88820-52110i200110-200212
main88820-52111i200301
main88820-52120i200212-200301
W(BOOST VENTILATOR)
main88820-52121i200301
W(BOOST VENTILATOR)

3 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota YARIS (JPP)

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota YARIS (JPP). Key components include: ADDITIONAL KIT,AIRCONDITIONER, COOLER & ACCESSORY ASSY, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1.
