Toyota YARIS (JPP) — FLOOR PAN & LOWER BACK PANEL

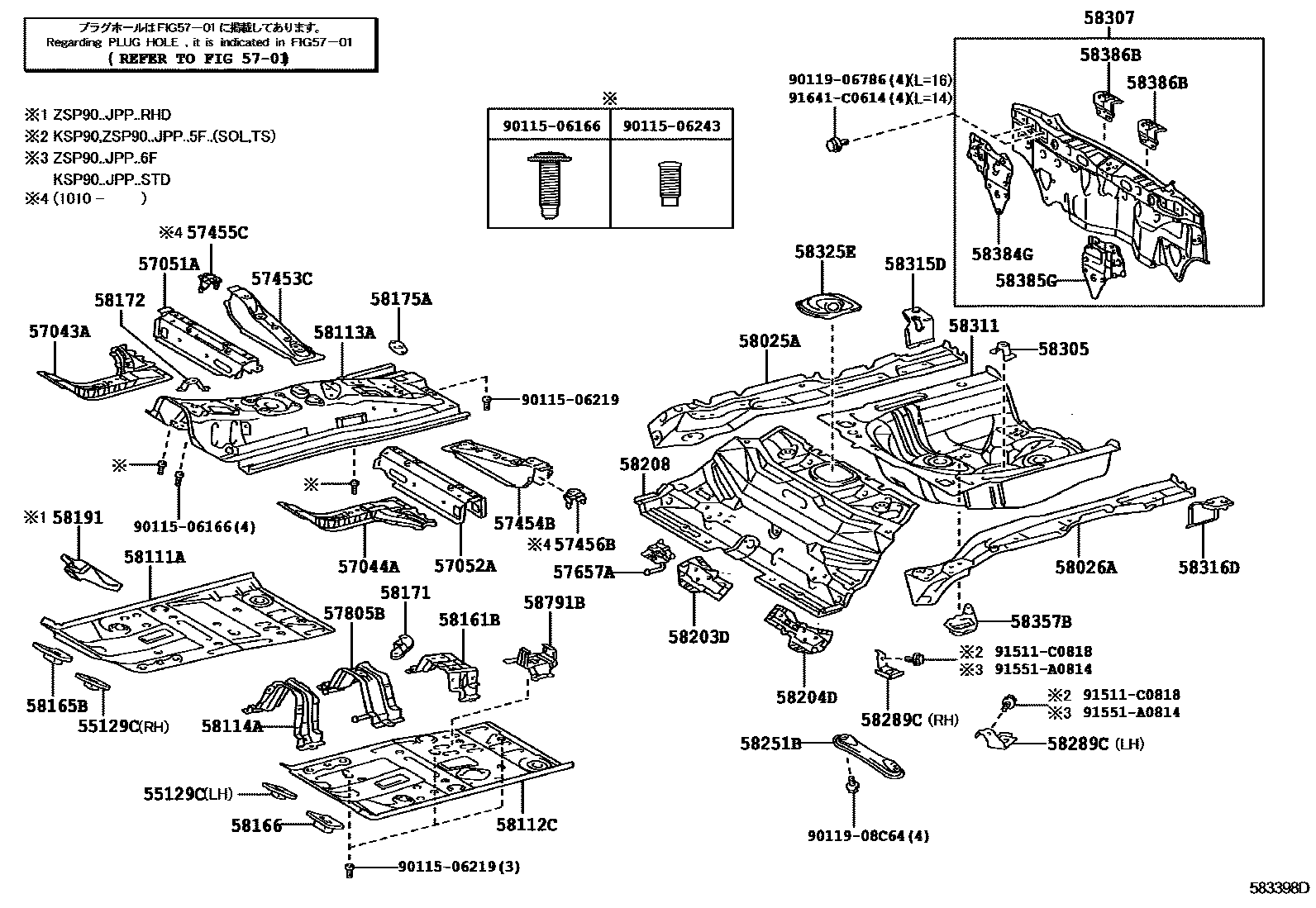

Parts diagram

55129CCOVER, DASH PANEL HOLE

main55129-52050i200508

RH

main55129-52051i200912-201106

RH

main55139-52020i200508

LH

main55139-52021i200912-201106

LH

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-52020i200508

main57043-52021i201009-201106

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52040i200508

main57044-52041i201009-201106

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52010i200508

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52010i200508

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-52020i200508

main57453-52021i201010-201106

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-52010i200508

main57454-52011i201010-201106

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-52040i201010-201106

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-52040i201010-201106

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main51904-52010i200508

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-52130i200508

main57805-52131i201010-201106

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-52010i200508

main58025-52060i201011-201106

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-52010i200508

main58026-52090i201011-201106

58111APAN, FRONT FLOOR, RH

main58111-52160i200508

58112CPAN, FRONT FLOOR, LH

main58112-52901i200508

58113APANEL, FRONT FLOOR, CENTER

main58113-52901i200808-201106

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52070i200508

main58114-52071i201010-201106

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52070i201010-201106

main58161-52090i200508

58165BCOVER, FRONT FLOOR, RH

main58165-52010i200508

main58165-52011i200912-201106

58166COVER, FRONT FLOOR, LH

main58166-52010i200508

main58166-52011i200912-201106

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-52090i200508

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020i200508

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020i200508

58191FOOTREST, FRONT FLOOR

main58191-52070i200611

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-52060i200508

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-52060i200508

main58204-52061i201008-201106

58208PAN, CENTER FLOOR

main58211-52160i200508

58251BBRACE, FLOOR PANEL, FRONT

main58251-52020×2i200508

58289CBRACKET, FLOOR BRAKE HOSE, REAR

main58289-52030i200508

RH

main58289-52080i201010-201106

RH

main58299-52060i200808-201009

LH

main58299-52100i201010-201106

LH

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-52070i200508

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52430i200508

58311PAN, REAR FLOOR

main58311-52110i200508

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52160i200508

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52180i200508

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52050i200508

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-52030i200508

main58357-52031i201105-201106

58384GGUSSET, LOWER BACK, UPPER RH

main58384-52080i200508

58385GGUSSET, LOWER BACK, UPPER LH

main58385-52060i200508

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-52040×2i200508

58791BCARRIER, JACK

main58791-52060i200508

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

9011906786

main90119-06786

9011908C64

main90119-08C64

91511C0818

main91511-C0818

91551A0814

main91551-A0814

91641C0614

main91641-C0614

49 parts on this diagram · 1 diagram in section

FLOOR PAN & LOWER BACK PANEL for Toyota YARIS (JPP)

This section contains 49 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota YARIS (JPP). Key components include: COVER, DASH PANEL HOLE, HOLE PLUG, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH, MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH.
