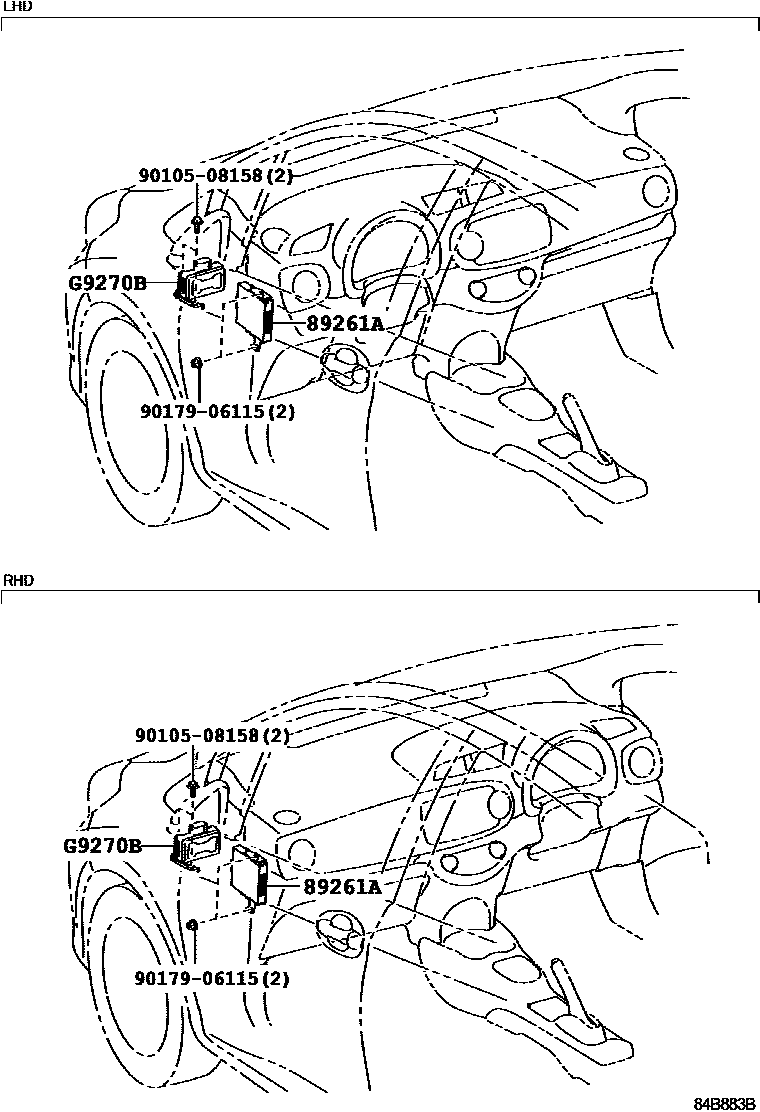

Toyota YARIS (JPP) — ECO-RUN SYSTEM

89261ACOMPUTER, ENGINE STOP AND START

main89690-52070supersedes 89690-52071i201108-201109

WITHOUT(STOP & START SYSTEM)

main89690-52071i201110-201208

WITHOUT(STOP & START SYSTEM)

main89690-52081supersedes 89690-52082i201108-201109

P/N LABEL=8969052081; WITHOUT(STOP & START SYSTEM),P/N LABEL=8969052081

main89690-52082i201110-201209

WITHOUT(STOP & START SYSTEM)

G9270BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C052030i201108-201209

WITHOUT(STOP & START SYSTEM)

9010508158

main90105-08158

9017906115

main90179-06115

4 parts on this diagram · 1 diagram in section

ECO-RUN SYSTEM for Toyota YARIS (JPP)

This section contains 4 genuine Toyota parts for the ECO-RUN SYSTEM system of the Toyota YARIS (JPP). Key components include: COMPUTER, ENGINE STOP AND START, CONVERTER ASSY, ECO RUN VEHICLE.
