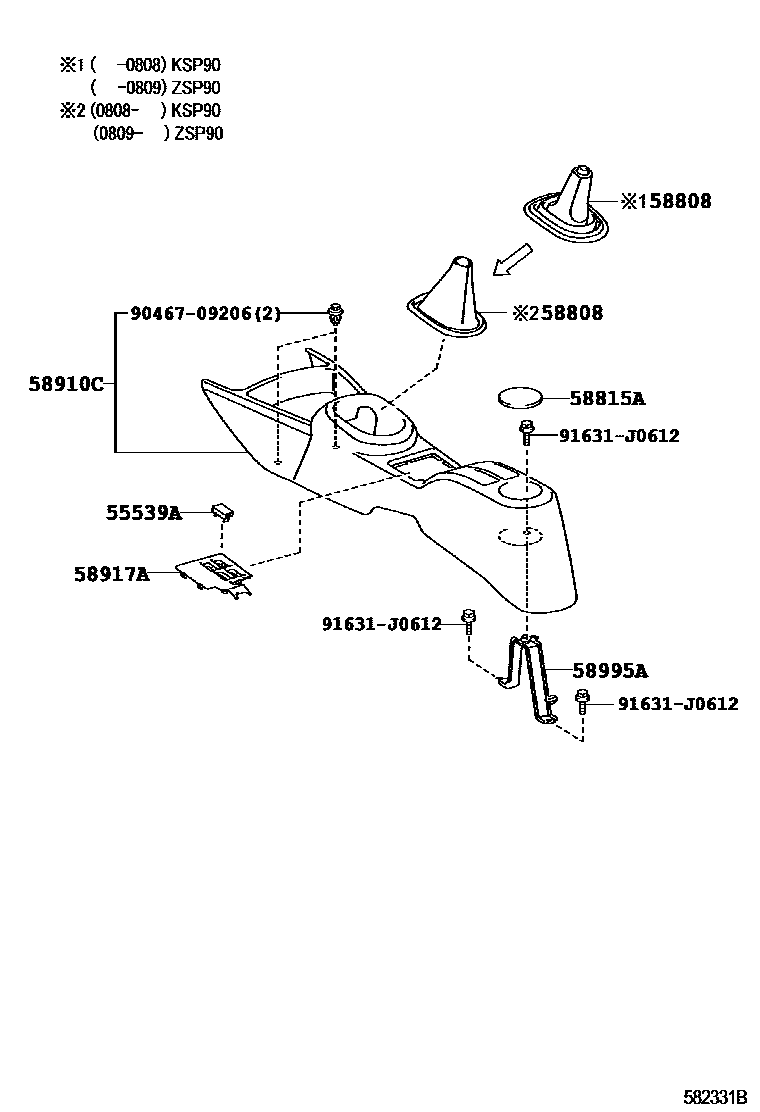

Toyota YARIS (JPP) — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
main55539-52060-B0×4supersedes 55539-52070-B0iKSP90..JPP..LHD..SOL; KSP90..JPP..LHD..STD; KSP90..JPP..SOL; KSP90..JPP..STD200508-200704
COLD SPEC=W(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; COLD SPEC=W(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM18,19; COLD SPEC=W/O(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; COLD SPEC=W/O(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM18,19; DK.GRAY,TRIM1#; DK.GRAY,TRIM18,19; POWER DOOR LOCK-WITHOUT,DK.GRAY,TRIM1#; POWER WINDOW-WITH(FRONT ONLY = ONE TOUCH TYPE),DK.GRAY,TRIM1#
main55539-52070-B0×4supersedes 55539-52070-C0iKSP90..JPP..LHD..SOL; KSP90..JPP..SOL; ZSP90..JPP..5F; ZSP90..JPP..LHD..5F200705
COLD SPEC=W(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; COLD SPEC=W(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM18,19; COLD SPEC=W/O(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; COLD SPEC=W/O(REAR HEATER DUCT)&SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM18,19; DK.GRAY,TRIM1#; DK.GRAY,TRIM18,19
AUDIO-RADIOLESS 4SPEAKER MULTI,BLACK,TRIM1#; BLACK,TRIM1#; POWER DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT&AUDIO-RADIOLESS 4SPEAKER MULTI,BLACK,TRIM1#; POWER DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT,BLACK,TRIM1#; POWER WINDOW-WITHOUT&AUDIO-RADIOLESS 4SPEAKER MULTI,BLACK,TRIM1#; POWER WINDOW-WITHOUT,BLACK,TRIM1#
58808COVER SUB-ASSY, SHIFTING HOLE
DK.GRAY,TRIM1#; DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
58815ACARPET, CONSOLE BOX
58910CBOX ASSY, CONSOLE, REAR
DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
58917ACOVER, CONSOLE BOX, REAR
DK.GRAY,TRIM1#; DK.GRAY,TRIM18,19
DK.GRAY,TRIM1#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9046709206
main90467-09206
91631J0612
main91631-J0612
8 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota YARIS (JPP)
This section contains 8 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota YARIS (JPP). Key components include: COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, BOX ASSY, CONSOLE, REAR, COVER, CONSOLE BOX, REAR.
