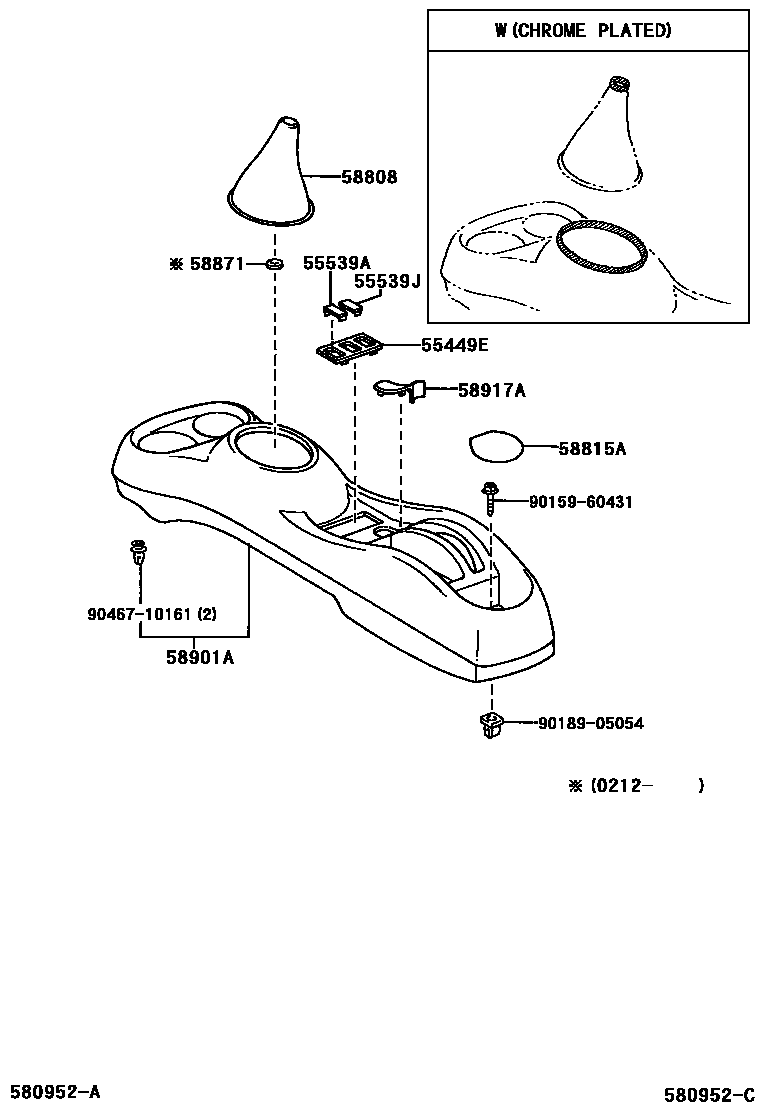

Toyota YARIS (JPP) — CONSOLE BOX & BRACKET
55449EBASE, SWITCH
main55449-52010-B0iNCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD)199901-200212
MD.GRAY,TRIM1#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
main55449-52010-G0iNCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD)199901-200212
MIST GREEN,TRIM7#
55539ACOVER, SPARE SWITCH HOLE
MD.GRAY,TRIM1#
main55539-32010-G3iNCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD)199901-200212
MIST GREEN,TRIM7#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
MD.GRAY,TRIM98
55539JCOVER, SPARE SWITCH HOLE
MD.GRAY,TRIM1#
main55539-32010-G3iNCP10,NLP10,SCP10..JPP..LHD..SOL;NCP10,NLP10,SCP10..JPP..(LUNA,TRSTD)199901-200212
MIST GREEN,TRIM7#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
MD.GRAY,TRIM98
58808COVER SUB-ASSY, SHIFTING HOLE
W(FREE TRONIC),BLUE GRAY,TRIM1#
W(FREE TRONIC),MIST GREEN,TRIM7#
BLUE GRAY,TRIM1#
DK.GRAY,TRIM97,98,99
MIST GREEN,TRIM7#
BLACK,TRIM9#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM97,98,99
58815ACARPET, CONSOLE BOX
58871CUSHION, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
MD.GRAY,TRIM1#
SHADOW GRAY,TRIM9#
DK.GRAY,TRIM97,98,99
MIST GREEN,TRIM7#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; REFER TO ILLUSTRATION : W(CHROME PLATED),DK.GRAY,TRIM97,98,99
58917ACOVER, CONSOLE BOX, REAR
MD.GRAY,TRIM1#
SHADOW GRAY,TRIM9#
DK.GRAY,TRIM9#; DK.GRAY,TRIM97,98; DK.GRAY,TRIM97,98,99
MIST GREEN,TRIM7#
9015960431
main90159-60431
9018905054
main90189-05054
9046710161
main90467-10161
11 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota YARIS (JPP)
This section contains 11 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota YARIS (JPP). Key components include: BASE, SWITCH, COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX.
