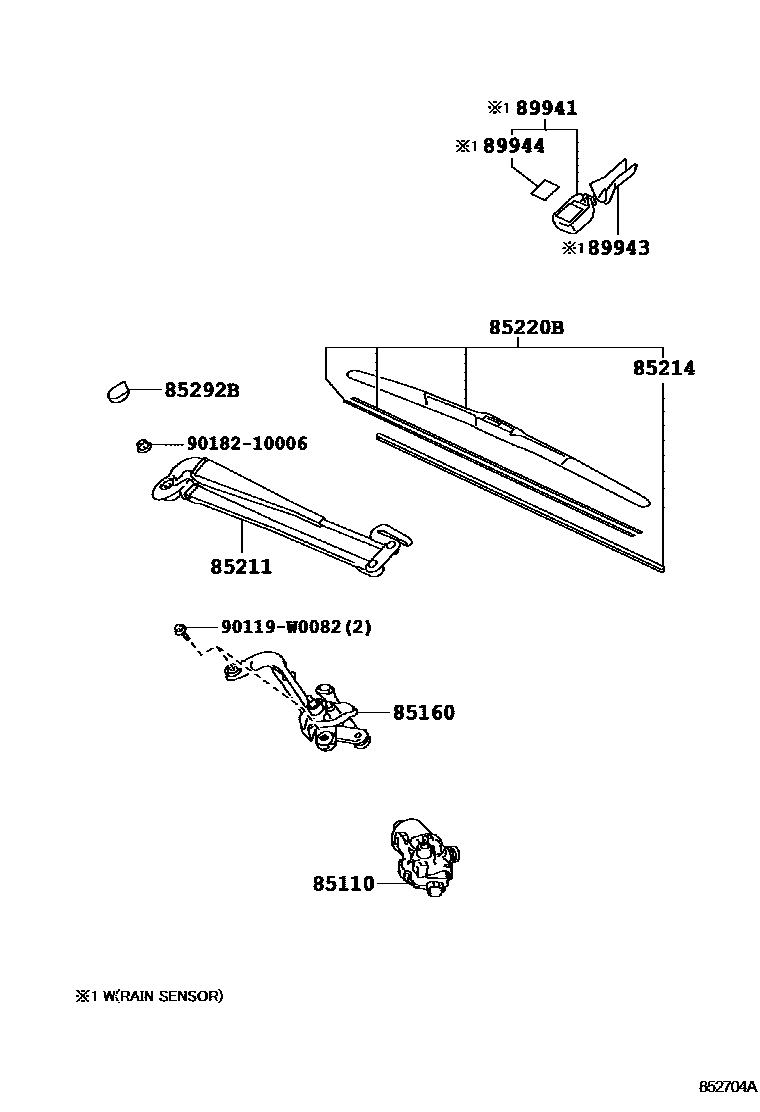

Toyota YARIS/HYBRID(FRP) — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D190iKSP130,NHP130,NLP130,NSP130..LHD201107

sub85110-0D191

main85110-0D200iKSP130,NHP130,NLP130,NSP130..RHD201107

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D180iKSP130,NHP130,NLP130,NSP130..LHD201107

main85150-0D190iKSP130,NHP130,NLP130,NSP130..RHD201107

85211ARM, FRONT WIPER

main85211-0D160iNHP130..RHD201107-201205

sub85211-0D161

main85211-0D161iKSP130,NHP130,NLP130,NSP130..RHD201205-201306

main85211-0D240iKSP130,NHP130,NLP130,NSP130..RHD201306

main85221-0D160iKSP130,NLP130,NSP130..LHD201107-201205

sub85221-0D161

main85221-0D161iKSP130,NHP130,NLP130,NSP130..LHD201205-201306

main85221-0D250iKSP130,NHP130,NLP130,NSP130..LHD201306

85214RUBBER, WIPER BLADE, NO.1

main85214-0D210iKSP130,NLP130,NSP130201107-201205

main85214-0D310iKSP130,NHP130,NLP130,NSP130201205

85220BBLADE, FRONT WIPER

main85212-0D100iNHP130..RHD201107-201205

main85212-0D102iKSP130,NHP130,NLP130,NSP130..RHD201205

main85222-0D120iNHP130..LHD201107-201205

main85222-0D122iKSP130,NHP130,NLP130,NSP130..LHD201205

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010iKSP130,NHP130,NLP130,NSP130201107-201306

main85292-52060iKSP130,NHP130,NLP130,NSP130..RHD201306

main85292-52070iKSP130,NHP130,NLP130,NSP130..LHD201306

89941SENSOR, RAIN

main89941-0D010

89943COVER, RAIN SENSOR

main89943-02010

89944TAPE, RAIN SENSOR

main89944-02010

90119W0082

main90119-W0082

9018210006

main90182-10006

11 parts on this diagram · 1 diagram in section
