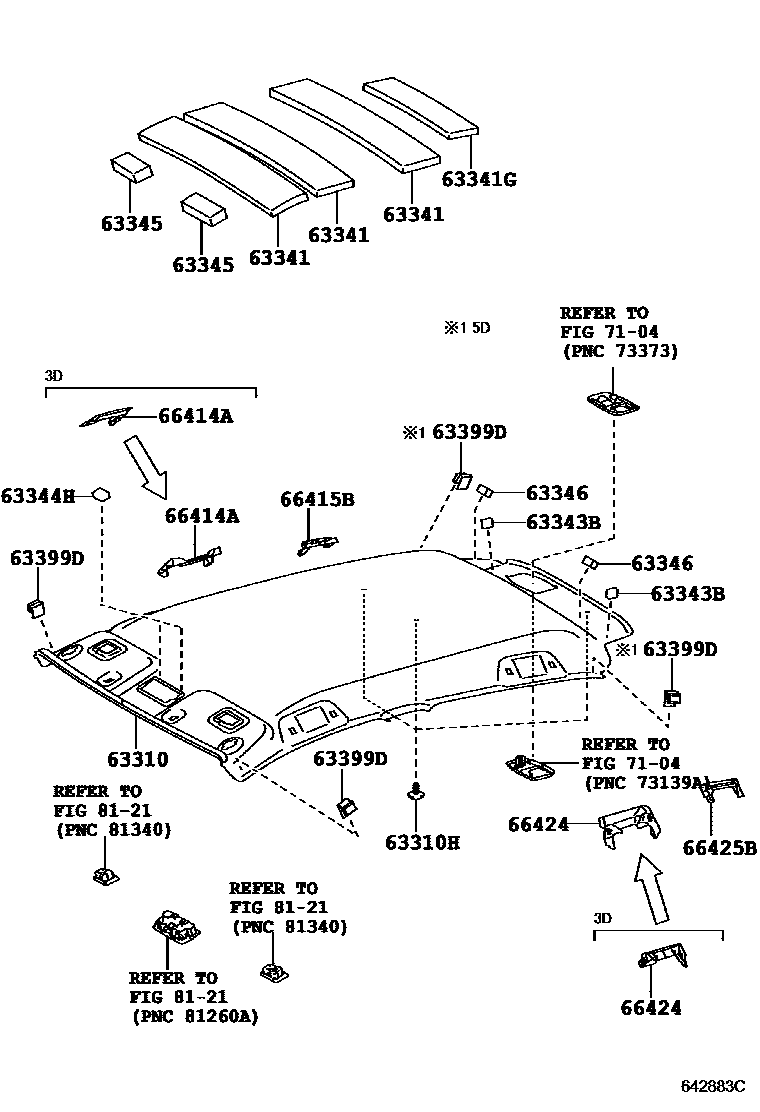

Toyota YARIS/HYBRID(FRP) — ROOF HEADLINING & SILENCER PAD

0001 1W(SRS CURTAIN SHIELD AIR BAG)0002 1W/O(SRS CURTAIN SHIELD AIR BA0003 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-0D430-B0iKSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STD)201107-201407

LT.GRAY,TRIM1#

sub63310-0D431

sub63344-0D050

main63310-0D440-B0iKSP130,NHP130,NLP130,NSP130..5D..(LOUNG,STYLE)201107-201407

LT.GRAY,TRIM1#

sub63310-0D441

sub63344-0D050

main63310-0D460-B0iKSP130,NLP130,NSP130..3D..(ACTIV,STD)201107-201407

LT.GRAY,TRIM1#

sub63310-0D461

sub63344-0D050

main63310-0D470-B0iKSP130,NLP130,NSP130..3D..(LOUNG,STYLE)201107-201407

LT.GRAY,TRIM1#

sub63310-0D471

sub63344-0D050

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B0iNHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE201107-201407

MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1#

sub90467-05164

main90467-05164-B0iNHP130..LOUNG;NLP130,NSP130..ACTIV,LOUNG,STYLE201107-201407

LT.GRAY,TRIM1#

sub90467-05164

63341PAD, ROOF SILENCER, NO.1

main63341-0D140iKSP130,NHP130,NLP130,NSP130201107

63341GPAD, ROOF SILENCER

main63343-0D090iKSP130,NHP130,NLP130,NSP130201107

63343BPAD, ROOF SILENCER, REAR

main63344-0D020iKSP130,NHP130,NLP130,NSP130201107

T25X15X30

63344HPAD, ROOF SILENCER, NO.4

63345PAD, ROOF SILENCER, NO.5

main63345-0D040iKSP130,NHP130,NLP130,NSP130201107

63346PAD, ROOF SILENCER, NO.6

main63346-0D020iKSP130,NHP130,NLP130,NSP130201107

T20X20X30

main63346-0D020iKSP130,NHP130,NLP130,NSP130201107

MOON ROOF-WITH(PANORAMIC ROOF)

63399DCLIP, ROOF HEADLINING

main63399-52020iKSP130,NLP130,NSP130..3D201107

66414ASPACER, SIDE RAIL, REAR RH

main66414-0D190iKSP130,NHP130,NLP130,NSP130..5D201107

main66414-0D200iKSP130,NLP130,NSP130..3D201107

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-0D010iKSP130,NHP130,NLP130,NSP130201107

66424SPACER, SIDE RAIL, REAR LH

main66424-0D190iKSP130,NHP130,NLP130,NSP130..5D201107

main66424-0D200iKSP130,NLP130,NSP130..3D201107

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-0D010iKSP130,NHP130,NLP130,NSP130201107

7104

8121

15 parts on this diagram · 3 diagrams in section
