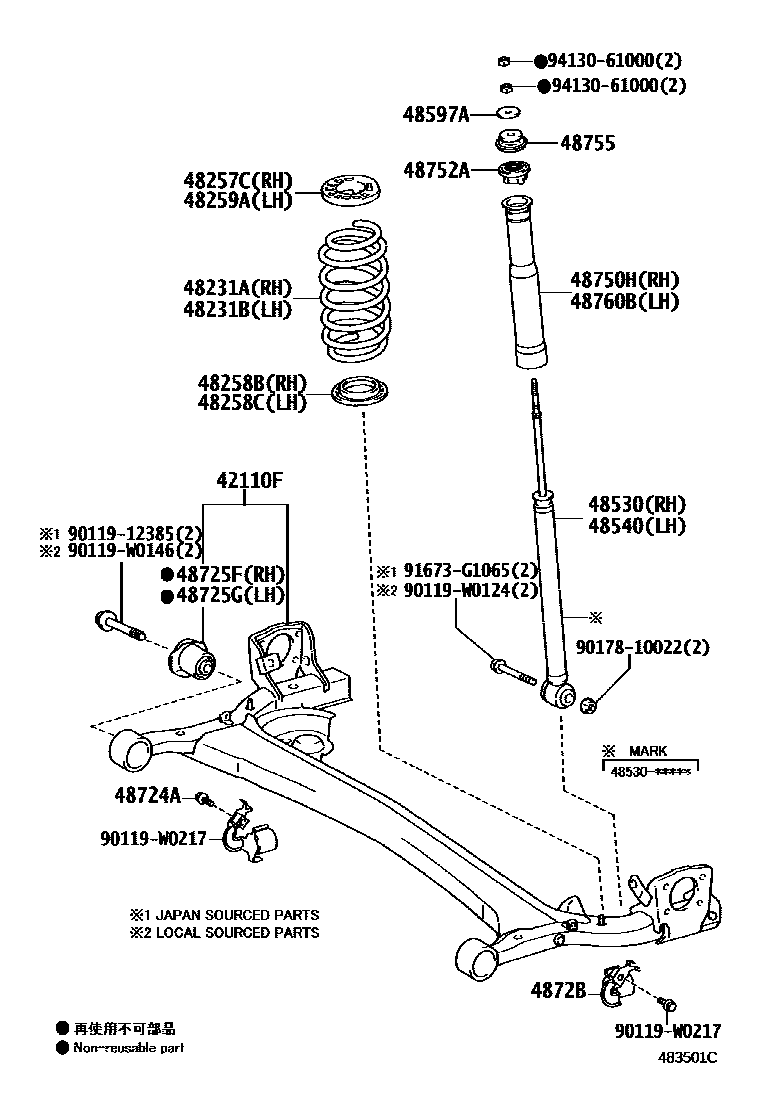

Toyota YARIS/HYBRID(FRP) — REAR SPRING & SHOCK ABSORBER
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0D310
MARK 48530-0D440,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
MARK 48530-0D440,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
MARK 48530-0D440,MOON ROOF-WITH(PANORAMIC ROOF)
MARK 48530-0D440
MARK 48530-0D450,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF)
MARK 48530-0D450
MARK 48530-0D450,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM
MARK 48530-0D450,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
MARK 48530-0D840
MARK 48530-0D850
MARK 48530-0D850,TIRE & DISC WHEEL-175/65R14, 5J, STEEL, BLACK
MARK 48530-0D850,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK
MARK 48530-0D850,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM
MARK 48530-0D850,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)
MARK 48530-0D860
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-0D310
MARK 48530-0D440,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
MARK 48530-0D440
MARK 48530-0D440,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
MARK 48530-0D440,MOON ROOF-WITH(PANORAMIC ROOF)
MARK 48530-0D450,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM
MARK 48530-0D450,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
MARK 48530-0D450,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF)
MARK 48530-0D450
MARK 48530-0D840
MARK 48530-0D850
MARK 48530-0D850,TIRE & DISC WHEEL-175/65R14, 5J, STEEL, BLACK
MARK 48530-0D850,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK
MARK 48530-0D850,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM
MARK 48530-0D850,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)
MARK 48530-0D860
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48724ADAMPER, REAR AXLE BEAM DYNAMIC
REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
4872BDAMPER, RR AXLE BEAM DYNAMIC, LH
REAR WHEEL BRAKE-DISK(BUILT-IN)&TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
9011912385
main90119-12385
90119W0124
main90119-W0124
90119W0146
main90119-W0146
90119W0217
main90119-W0217
9017810022
main90178-10022
91673G1065
main91673-G1065
9413061000
main94130-61000
25 parts on this diagram · 1 diagram in section
