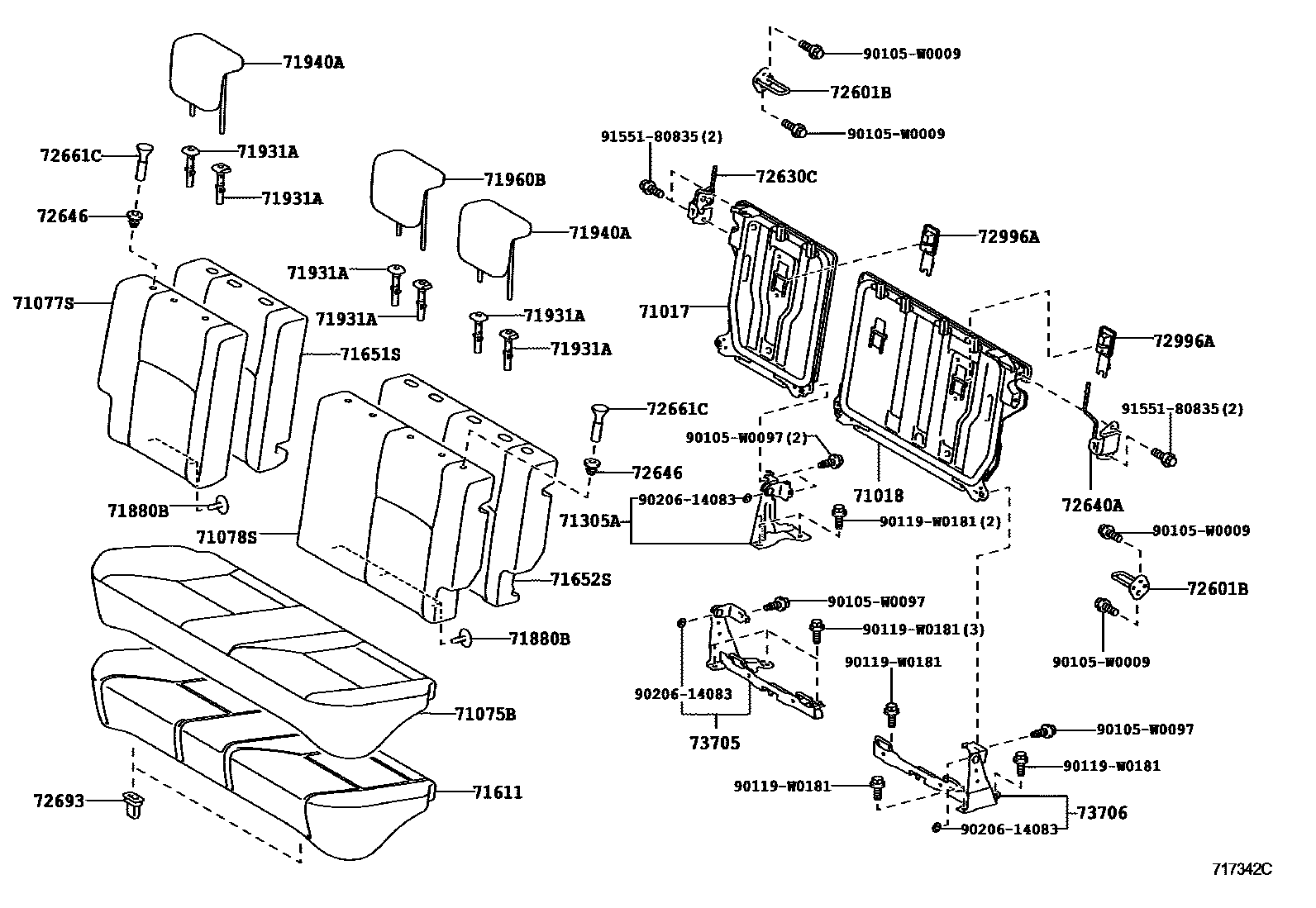

Toyota YARIS/HYBRID(FRP) — REAR SEAT & SEAT TRACK

0001 1 0002 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0D250iKSP130,NHP130,NLP130,NSP130201107-201208

N1 PACKAGE&ENTRY GRADE

main71017-0D250iNSP130..LHD..CVFC..ACTIV201107-201208

N1 PACKAGE

main71017-0D251iKSP130,NLP130,NSP130..ACTIV,STD201208-201407

N1 PACKAGE

main71017-0D251iKSP130,NHP130,NLP130,NSP130201208-201407

N1 PACKAGE&ENTRY GRADE

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0D100iKSP130,NHP130,NLP130,NSP130201107-201208

N1 PACKAGE

main71018-0D100iKSP130,NHP130,NLP130,NSP130201107-201208

N1 PACKAGE&ENTRY GRADE

main71018-0D101iNSP130..LHD..CVFC..ACTIV201208-201407

N1 PACKAGE

main71018-0D101iKSP130,NHP130,NLP130,NSP130201208-201407

N1 PACKAGE&ENTRY GRADE

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0D820-C0iKSP130,NLP130,NSP130..STD201107-201303

BLACK,TRIM1#

sub71075-0D821

main71075-0D820-C0iKSP130,NLP130,NSP130..STD201107-201303

N1 PACKAGE,BLACK,TRIM1#

sub71075-0D821

main71075-0D820-C0iKSP130,NLP130,NSP130..STD201107-201303

ENTRY GRADE,BLACK,TRIM1#

sub71075-0D821

main71075-0D821-C0iNSP130..CVFC..ACTIV201303-201407

ENTRY GRADE,BLACK,TRIM1#

main71075-0D821-C0iKSP130,NLP130,NSP130..STD201303-201407

N1 PACKAGE,BLACK,TRIM1#

main71075-0D821-C0iKSP130,NLP130,NSP130..STD201303-201407

BLACK,TRIM1#

main71075-0D830-C0iKSP130,NLP130,NSP130..ACTIV201107-201303

BLACK,TRIM1#

main71075-0D830-C0iKSP130,NLP130,NSP130..ACTIV201107-201303

N1 PACKAGE,BLACK,TRIM1#

main71075-0D830-C0iKSP130,NLP130,NSP130..ACTIV201107-201303

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main71075-0D832-C2iKSP130,NLP130,NSP130..ACTIV201303-201407

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main71075-0D832-C2iNSP130..LHD..CVFC..ACTIV201303-201407

N1 PACKAGE,BLACK,TRIM1#

main71075-0D832-C2iNSP130..LHD..CVFC..ACTIV201303-201407

BLACK,TRIM1#

main71075-0D840-B0iKSP130,NLP130,NSP130..LOUNG201107-201303

GRAY/BLACK,TRIM1#

sub71075-0D841

main71075-0D841-B0iKSP130,NLP130,NSP130..LOUNG201303-201407

GRAY/BLACK,TRIM1#

main71075-0D850-C0iNLP130,NSP130..STYLE201107-201303

BLACK,TRIM1#

sub71075-0D851

main71075-0D851-C0iNLP130,NSP130..STYLE201303-201407

BLACK,TRIM1#

main71075-0DA10-C1iNHP130..ACTIV201204-201311

BLACK,TRIM1#

sub71075-0DA12

main71075-0DA10-C1iNHP130..ACTIV201204-201311

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

sub71075-0DA12

main71075-0DA12-C1iNHP130..LOUNG201311-201407

BLACK,TRIM1#

main71075-0DA12-C1iNHP130..ACTIV201311-201407

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

main71075-0DA20-C0iNHP130..LOUNG201204-201311

BLACK,TRIM1#

sub71075-0DA22

main71075-0DA22-C0iNHP130..LOUNG201311-201407

BLACK,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0DA90-C0iKSP130,NLP130,NSP130..STD201107-201303

N1 PACKAGE,BLACK,TRIM1#

main71077-0DA90-C0iKSP130,NLP130,NSP130..STD201107-201303

BLACK,TRIM1#

main71077-0DA90-C0iKSP130,NLP130,NSP130..STD201107-201303

ENTRY GRADE,BLACK,TRIM1#

main71077-0DA91-C0iKSP130,NLP130,NSP130..STD201303-201407

HV ENTRY PACKAGE,BLACK,TRIM1#

main71077-0DA91-C0iNSP130..CVFC..ACTIV201303-201407

BLACK,TRIM1#

main71077-0DA91-C0iNSP130..CVFC..ACTIV201303-201407

N1 PACKAGE,BLACK,TRIM1#

main71077-0DA91-C0iNSP130..CVFC..ACTIV201303-201407

ENTRY GRADE,BLACK,TRIM1#

main71077-0DA91-C0iNSP130..CVFC..ACTIV201303-201407

HV SIMPLE PACKAGE,BLACK,TRIM1#

main71077-0DB00-C0iKSP130,NLP130,NSP130..ACTIV201107-201303

N1 PACKAGE,BLACK,TRIM1#

main71077-0DB00-C0iKSP130,NLP130,NSP130..ACTIV201107-201303

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main71077-0DB00-C0iKSP130,NLP130,NSP130..ACTIV201107-201303

BLACK,TRIM1#

main71077-0DB00-C3iKSP130,NLP130,NSP130..ACTIV201303-201304

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main71077-0DB00-C3iKSP130,NLP130,NSP130..ACTIV201303-201304

BLACK,TRIM1#

main71077-0DB00-C3iKSP130,NLP130,NSP130..ACTIV201303-201304

N1 PACKAGE,BLACK,TRIM1#

main71077-0DB02-C3iNSP130..LHD..CVFC..ACTIV201304-201407

N1 PACKAGE,BLACK,TRIM1#

main71077-0DB02-C3iNSP130..LHD..CVFC..ACTIV201304-201407

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main71077-0DB02-C3iKSP130,NLP130,NSP130..ACTIV201304-201407

BLACK,TRIM1#

main71077-0DB10-B0iKSP130,NLP130,NSP130..LOUNG201107-201303

GRAY/BLACK,TRIM1#

main71077-0DB11-B0iKSP130,NLP130,NSP130..LOUNG201303-201407

GRAY/BLACK,TRIM1#

main71077-0DB20-C0iNLP130,NSP130..STYLE201107-201303

BLACK,TRIM1#

main71077-0DB20-C1iNHP130..ACTIV201204-201303

BLACK,TRIM1#

main71077-0DB20-C1iNHP130..LOUNG201204-201303

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

main71077-0DB21-C0iNLP130,NSP130..STYLE201303-201407

BLACK,TRIM1#

main71077-0DB21-C1iNHP130..LOUNG201303-201407

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

main71077-0DB21-C1iNHP130..LOUNG201303-201407

BLACK,TRIM1#

main71077-0DB40-C1iNHP130..LOUNG201204-201303

BLACK,TRIM1#

main71077-0DB41-C1iNHP130..LOUNG201303-201407

BLACK,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0D420-C0iKSP130,NLP130,NSP130..STD201107-201303

BLACK,TRIM1#

main71078-0D420-C0iKSP130,NLP130,NSP130..STD201107-201303

N1 PACKAGE,BLACK,TRIM1#

main71078-0D420-C0iKSP130,NLP130,NSP130..STD201107-201303

ENTRY GRADE,BLACK,TRIM1#

main71078-0D421-C0iNHP130..ACTIV201303-201407

ENTRY GRADE,BLACK,TRIM1#

main71078-0D421-C0iKSP130,NLP130,NSP130..STD201303-201407

BLACK,TRIM1#

main71078-0D421-C0iKSP130,NLP130,NSP130..STD201303-201407

N1 PACKAGE,BLACK,TRIM1#

main71078-0D421-C0iKSP130,NLP130,NSP130..STD201303-201407

HV SIMPLE PACKAGE,BLACK,TRIM1#

main71078-0D421-C0iKSP130,NLP130,NSP130..STD201303-201407

HV ENTRY PACKAGE,BLACK,TRIM1#

main71078-0D430-C0iNSP130..LHD..CVFC..ACTIV201107-201303

N1 PACKAGE,BLACK,TRIM1#

main71078-0D430-C0iNSP130..LHD..CVFC..ACTIV201107-201303

BLACK,TRIM1#

main71078-0D430-C0iKSP130,NLP130,NSP130..ACTIV201107-201303

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main71078-0D432-C3iKSP130,NLP130,NSP130..ACTIV201303-201407

BLACK,TRIM1#

main71078-0D432-C3iNSP130..LHD..CVFC..ACTIV201303-201407

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main71078-0D432-C3iNSP130..LHD..CVFC..ACTIV201303-201407

N1 PACKAGE,BLACK,TRIM1#

main71078-0D440-B0iKSP130,NLP130,NSP130..LOUNG201107-201303

GLAY/BLACK,TRIM1#

main71078-0D441-B0iKSP130,NLP130,NSP130..LOUNG201303-201407

GRAY/BLACK,TRIM1#

main71078-0D450-C0iNLP130,NSP130..STYLE201107-201303

BLACK,TRIM1#

main71078-0D450-C1iNHP130..ACTIV201204-201303

BLACK,TRIM1#

main71078-0D450-C1iNHP130..LOUNG201204-201303

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

main71078-0D451-C0iNLP130,NSP130..STYLE201303-201407

BLACK,TRIM1#

main71078-0D451-C1iNHP130..ACTIV201303-201407

BLACK,TRIM1#

main71078-0D451-C1iNHP130..ACTIV201303-201407

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

main71078-0D470-C1iNHP130..LOUNG201204-201303

BLACK,TRIM1#

main71078-0D471-C1iNHP130..LOUNG201303-201407

BLACK,TRIM1#

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-0D020iKSP130,NLP130,NSP130201107

71611PAD, REAR SEAT CUSHION

main71503-0D190iKSP130,NLP130,NSP130201107-201407

N1 PACKAGE

main71503-0D190iKSP130,NLP130,NSP130201107-201407

N1 PACKAGE&ENTRY GRADE

main71503-0D210iNHP130201204-201407

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0D220iKSP130,NHP130,NLP130,NSP130201107-201407

N1 PACKAGE

main71651-0D220iKSP130,NHP130,NLP130,NSP130201107-201407

N1 PACKAGE&ENTRY GRADE

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0D140iKSP130,NLP130,NSP130..ACTIV,STD201107-201407

N1 PACKAGE&ENTRY GRADE

main71652-0D140iKSP130,NHP130,NLP130,NSP130201107-201407

N1 PACKAGE

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-05161-C0iKSP130,NHP130,NLP130,NSP130201107-201407

N1 PACKAGE,BLACK,TRIM1#

sub90467-05161

main90467-05161-C0iKSP130,NHP130,NLP130,NSP130201107-201407

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

sub90467-05161

main90467-05161-C0iKSP130,NLP130,NSP130..ACTIV,STD201107-201407

BLACK,TRIM1#

sub90467-05161

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-C0iKSP130,NHP130,NLP130,NSP130201107-201407

W(LOCK),BLACK,TRIM1#

sub71930-44020

sub71930-02370

main71930-44020-C0iKSP130,NHP130,NLP130,NSP130201107-201407

W(LOCK),N1 PACKAGE,BLACK,TRIM1#

sub71930-44020

sub71930-02370

main71930-44020-C0iKSP130,NHP130,NLP130,NSP130201107-201407

W(LOCK),N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

sub71930-44020

sub71930-02370

main71931-47010-C0iKSP130,NHP130,NLP130,NSP130201107-201407

W/O(LOCK),BLACK,TRIM1#

sub71931-47010

sub71931-42020

71940AHEADREST ASSY, REAR SEAT

main71940-0D660-C0iKSP130,NLP130,NSP130..ACTIV,STD201107-201301

N1 PACKAGE,BLACK,TRIM1#

sub71940-0D660

main71940-0D660-C0iNHP130..ACTIV;KSP130,NLP130,NSP130201107-201301

BLACK,TRIM1#

sub71940-0D660

main71940-0D660-C0iNHP130..ACTIV;KSP130,NLP130,NSP130201107-201301

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

sub71940-0D660

main71940-0D660-C2iNHP130..LOUNG201301-201407

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

sub71940-0D660

main71940-0D660-C2iNHP130..ACTIV;KSP130,NLP130,NSP130201301-201407

BLACK,TRIM1#

sub71940-0D660

main71940-0D660-C2iNHP130..ACTIV;KSP130,NLP130,NSP130201301-201407

N1 PACKAGE,BLACK,TRIM1#

sub71940-0D660

main71940-0D660-C2iNHP130..ACTIV;KSP130,NLP130,NSP130201301-201407

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

sub71940-0D660

main71940-0D680-C0iNHP130..LOUNG201204-201301

BLACK,TRIM1#

sub71940-0D680

main71940-0D680-C2iNHP130..LOUNG201301-201407

BLACK,TRIM1#

sub71940-0D680

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0D150-C0iNSP130..LHD..CVFC..ACTIV201107-201301

N1 PACKAGE,BLACK,TRIM1#

main71960-0D150-C0iNHP130..ACTIV;KSP130,NLP130,NSP130201107-201301

BLACK,TRIM1#

main71960-0D150-C0iNHP130..ACTIV;KSP130,NLP130,NSP130201107-201301

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main71960-0D150-C2iNHP130..ACTIV;KSP130,NLP130,NSP130201301-201407

N1 PACKAGE,BLACK,TRIM1#

main71960-0D150-C2iNHP130..ACTIV;KSP130,NLP130,NSP130201301-201407

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main71960-0D150-C2iNHP130..LOUNG201301-201407

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

main71960-0D150-C2iKSP130,NLP130,NSP130..ACTIV,STD201301-201407

BLACK,TRIM1#

main71960-0D210-C0iNHP130..LOUNG201204-201301

BLACK,TRIM1#

sub71960-0D210

main71960-0D210-C2iNHP130..LOUNG201301-201407

BLACK,TRIM1#

sub71960-0D210

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-0D030iKSP130,NHP130,NLP130,NSP130201107

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-0D060iNSP130..LHD..CVFC..ACTIV201107-201208

N1 PACKAGE&ENTRY GRADE

main72630-0D060iKSP130,NHP130,NLP130,NSP130201107-201208

N1 PACKAGE

main72630-0D150iKSP130,NHP130,NLP130,NSP130201208-201312

N1 PACKAGE

sub72630-52170

main72630-0D150iKSP130,NHP130,NLP130,NSP130201208-201312

N1 PACKAGE&ENTRY GRADE

sub72630-52170

main72630-52170iKSP130,NHP130,NLP130,NSP130201401-201407

N1 PACKAGE

main72630-52170iKSP130,NHP130,NLP130,NSP130201401-201407

N1 PACKAGE&ENTRY GRADE

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-0D060iKSP130,NHP130,NLP130,NSP130201107-201208

N1 PACKAGE

main72640-0D060iKSP130,NHP130,NLP130,NSP130201107-201208

N1 PACKAGE&ENTRY GRADE

main72640-0D150iKSP130,NHP130,NLP130,NSP130201208-201312

N1 PACKAGE

sub72640-52170

main72640-0D150iKSP130,NHP130,NLP130,NSP130201208-201312

N1 PACKAGE&ENTRY GRADE

sub72640-52170

main72640-52170iKSP130,NLP130,NSP130..ACTIV,STD201401-201407

N1 PACKAGE&ENTRY GRADE

main72640-52170iKSP130,NHP130,NLP130,NSP130201401-201407

N1 PACKAGE

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-0D020-C0iKSP130,NHP130,NLP130,NSP130201107-201207

BLACK,TRIM1#

main72646-0D020-C0iKSP130,NHP130,NLP130,NSP130201107-201207

N1 PACKAGE,BLACK,TRIM1#

main72646-0D020-C0iKSP130,NHP130,NLP130,NSP130201107-201207

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main72646-0D021-C0iKSP130,NHP130,NLP130,NSP130201208-201407

BLACK,TRIM1#

sub72646-0D021

main72646-0D021-C0iKSP130,NHP130,NLP130,NSP130201208-201407

N1 PACKAGE,BLACK,TRIM1#

sub72646-0D021

main72646-0D021-C0iKSP130,NHP130,NLP130,NSP130201208-201407

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

sub72646-0D021

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-0D040-C0iKSP130,NHP130,NLP130,NSP130201107-201207

BLACK,TRIM1#

main72661-0D040-C0iKSP130,NHP130,NLP130,NSP130201107-201207

N1 PACKAGE,BLACK,TRIM1#

main72661-0D040-C0iKSP130,NHP130,NLP130,NSP130201107-201207

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

main72661-0D041-C0iKSP130,NLP130,NSP130..ACTIV,STD201208-201407

N1 PACKAGE,BLACK,TRIM1#

sub72661-0D041

main72661-0D041-C0iNSP130..LHD..CVFC..ACTIV201208-201407

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

sub72661-0D041

main72661-0D041-C0iNSP130..LHD..CVFC..ACTIV201208-201407

BLACK,TRIM1#

sub72661-0D041

72693HOOK, REAR SEAT CUSHION LOCK

main72693-0D040iKSP130,NHP130,NLP130,NSP130201109

72996ACOVER, REAR SEATBACK

main72996-0D010-C0iKSP130,NHP130,NLP130,NSP130201107-201407

BLACK,TRIM1#

sub72996-0D010

main72996-0D010-C0iNSP130..LHD..CVFC..ACTIV201107-201407

N1 PACKAGE&ENTRY GRADE,BLACK,TRIM1#

sub72996-0D010

main72996-0D010-C0iNSP130..LHD..CVFC..ACTIV201107-201407

N1 PACKAGE,BLACK,TRIM1#

sub72996-0D010

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73075-0D020iNHP130201204

main73705-0D140iKSP130,NLP130,NSP130201107

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-0D010iKSP130,NLP130,NSP130201107

90105W0009

main90105-W0009

90105W0097

main90105-W0097

90119W0181

main90119-W0181

9020614083

main90206-14083

9155180835

main91551-80835

27 parts on this diagram · 2 diagrams in section
