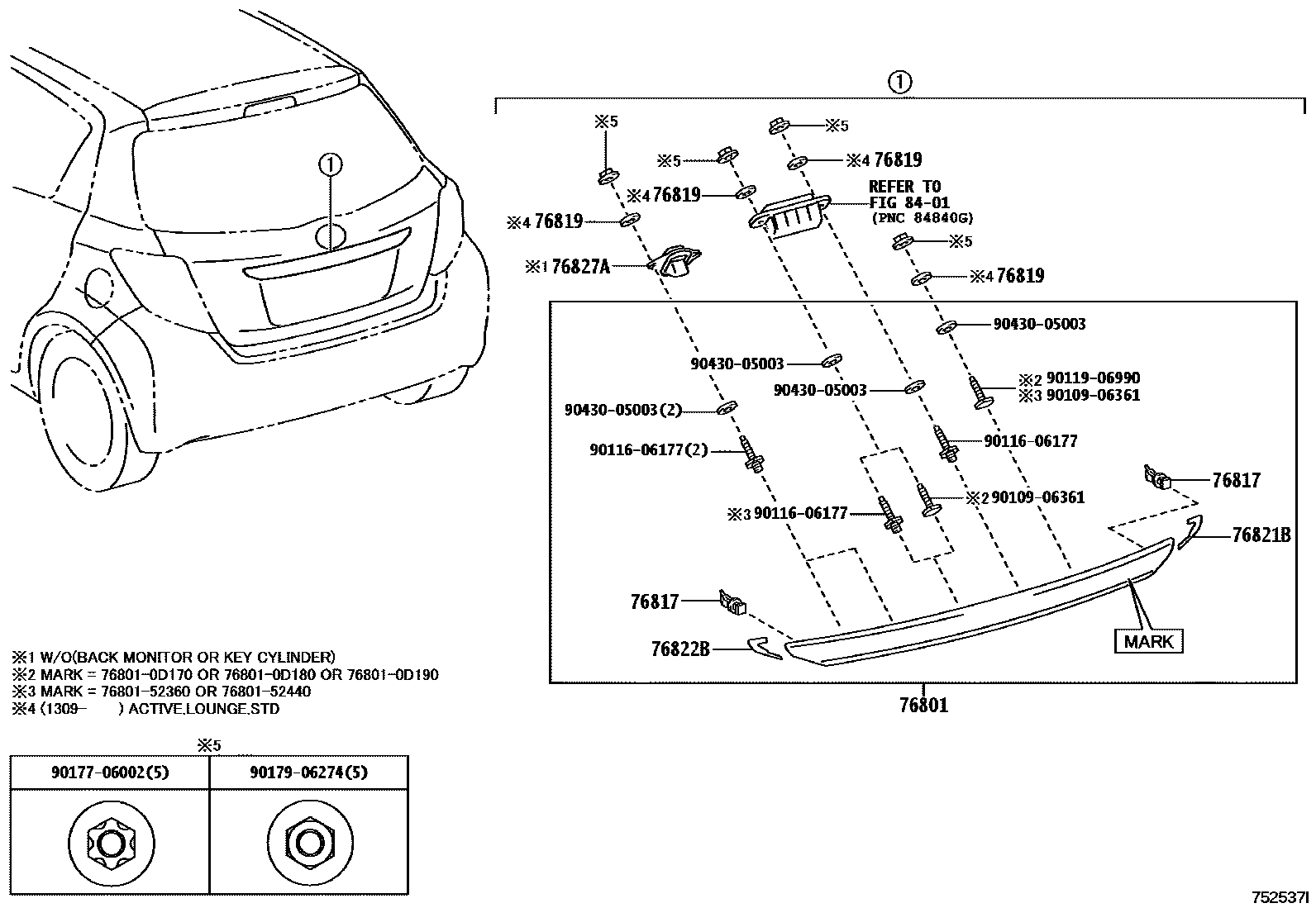

Toyota YARIS/HYBRID(FRP) — REAR MOULDING
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
NO PAINT REQ.
NO PAINT REQ.,HV ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT
NO PAINT REQ.,HV SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT
PLATED
PLATED,LWR.BACK & BACK DR.GARN.-WITH(CHROME PLATED)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
sub76801-0D192
PLATED,LWR.BACK & BACK DR.GARN.-WITH(CHROME PLATED)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
sub76801-0D192
PLATED
PLATED,LWR.BACK & BACK DR.GARN.-WITH(CHROME PLATED)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
PLATED,LWR.BACK & BACK DR.GARN.-WITH(CHROME PLATED)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
PAINT REQ.,LWR.BACK & BACK DR.GARN.-WITH(PAINTED)&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
sub76801-0D916
sub90177-06002
PAINT REQ.,LWR.BACK & BACK DR.GARN.-WITH(PAINTED)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
sub76801-0D916
sub90177-06002
76817CLIP, BACK DOOR OUTSIDE GARNISH
76819SEAL, BACK DOOR OUTSIDE GARNISH
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
76827ARETAINER, BACK DOOR GARNISH, NO.2
8401
9010906361
main90109-06361
9011606177
main90116-06177
9011906990
main90119-06990
9017706002
main90177-06002
9017906274
main90179-06274
9043005003
main90430-05003
13 parts on this diagram · 1 diagram in section
