Toyota YARIS/HYBRID(FRP) — PARTIAL ENGINE ASSEMBLY

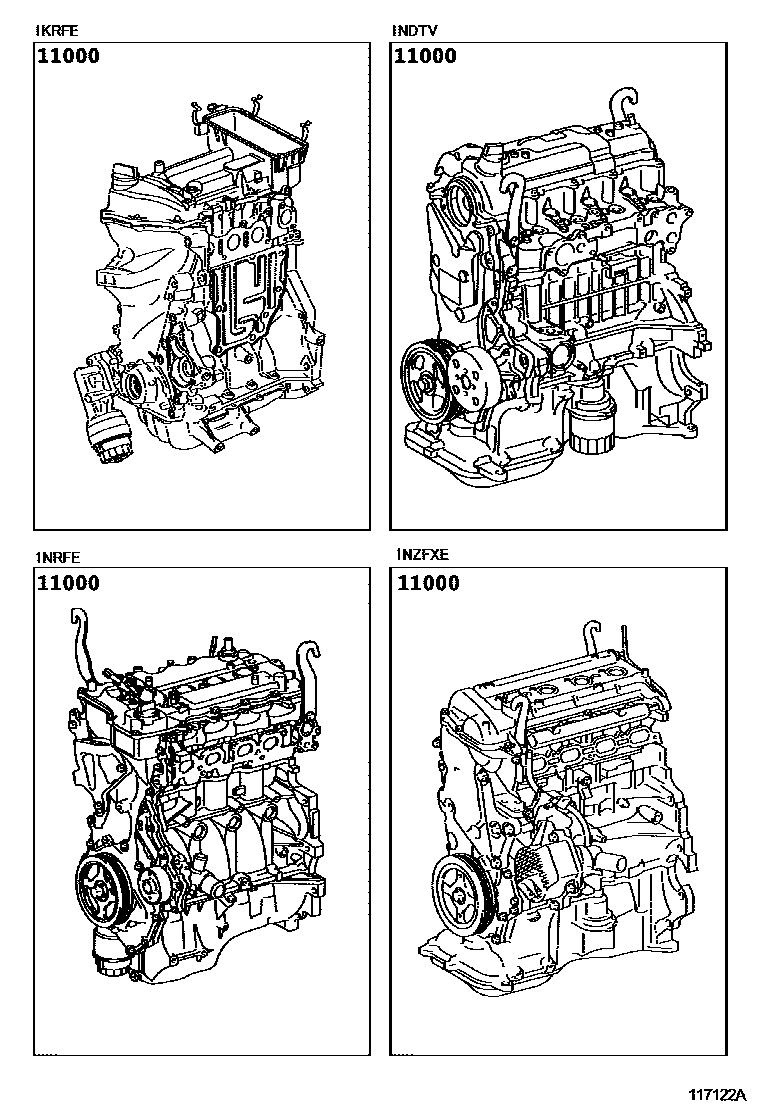

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0N050i201107-201202
sub19000-0N051
sub16262-0N011
main19000-0N051i201202-201405
sub19000-0N052
main19000-0N052i201405
main19000-0Q050i201107
*138
main19000-21D00i201204-201306
REFER11-05:PNC 11452
sub19000-21D01
sub11452-21040
main19000-21D01i201306
REFER11-05:PNC 11452
main19000-40260i201107-201311
*132
sub19000-40261
main19000-40261i201311
*132
sub19000-0Q050
main19000-47170i201107-201301
sub19000-47171
main19000-47171i201301-201308
main19000-47200i201107-201301
sub19000-47201
main19000-47201i201301-201308
main19000-47320i201308
main19000-47330i201308

1 parts on this diagram · 1 diagram in section
