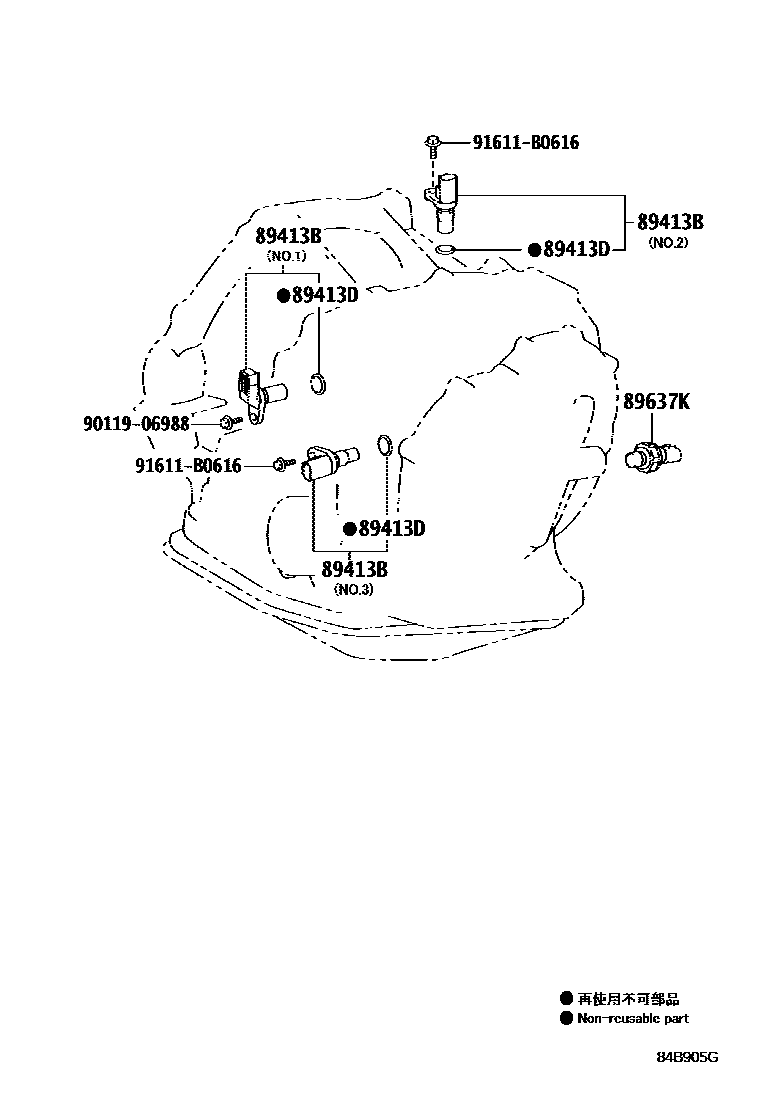

Toyota YARIS/HYBRID(FRP) — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-12020iNSP130..CVFC201107-201407

NO.1

main89413-22010iNLP130..6FS201107-201407

main89413-28010iNSP130..CVFC201107-201407

NO.2

sub89413-28011

main89413-60020iNSP130..CVFC201107-201407

NO.3

sub89413-60021

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iNLP130..6FS201107

89637KSENSOR, OIL PRESSURE

main89637-63010iNSP130..CVFC201107-201407

9011906988

main90119-06988

91611B0616

main91611-B0616

5 parts on this diagram · 2 diagrams in section
