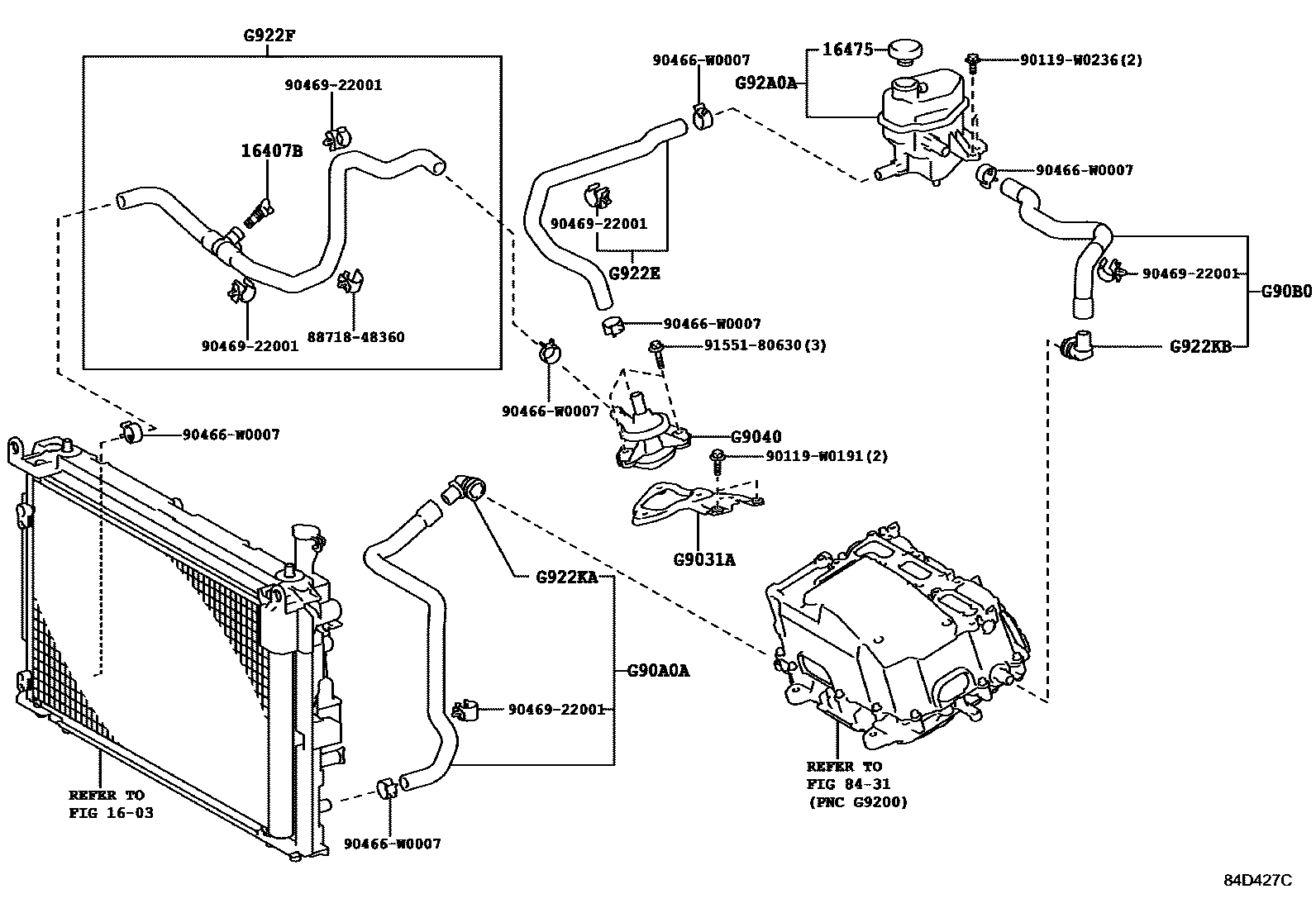

Toyota YARIS/HYBRID(FRP) — INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i1NZFXE..NHP130201204

16475CAP, RESERVE TANK

main16475-51010i1NZFXE..NHP130201204

sub16475-28140

8431

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914152010iNHP130201204-201211

subG9141-52011

mainG914152011iNHP130201212

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052010iNHP130201204-201407

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A052010iNHP130201204

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B052010iNHP130201204

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E52010iNHP130201204

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F52020iNHP130201204

G922KACONNECTOR, HYBRID WATER HOSE, NO.1

mainG922K33030iNHP130201204

G922KBCONNECTOR, HYBRID WATER HOSE, NO.2

mainG922K52010iNHP130201204

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A052010iNHP130201204

subG92A0-52011

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

90119W0191

main90119-W0191

90119W0236

main90119-W0236

90466W0007

main90466-W0007

9046922001

main90469-22001

9155180630

main91551-80630

19 parts on this diagram · 1 diagram in section
