Toyota YARIS/HYBRID(FRP) — HEATING & AIR CONDITIONING - SET

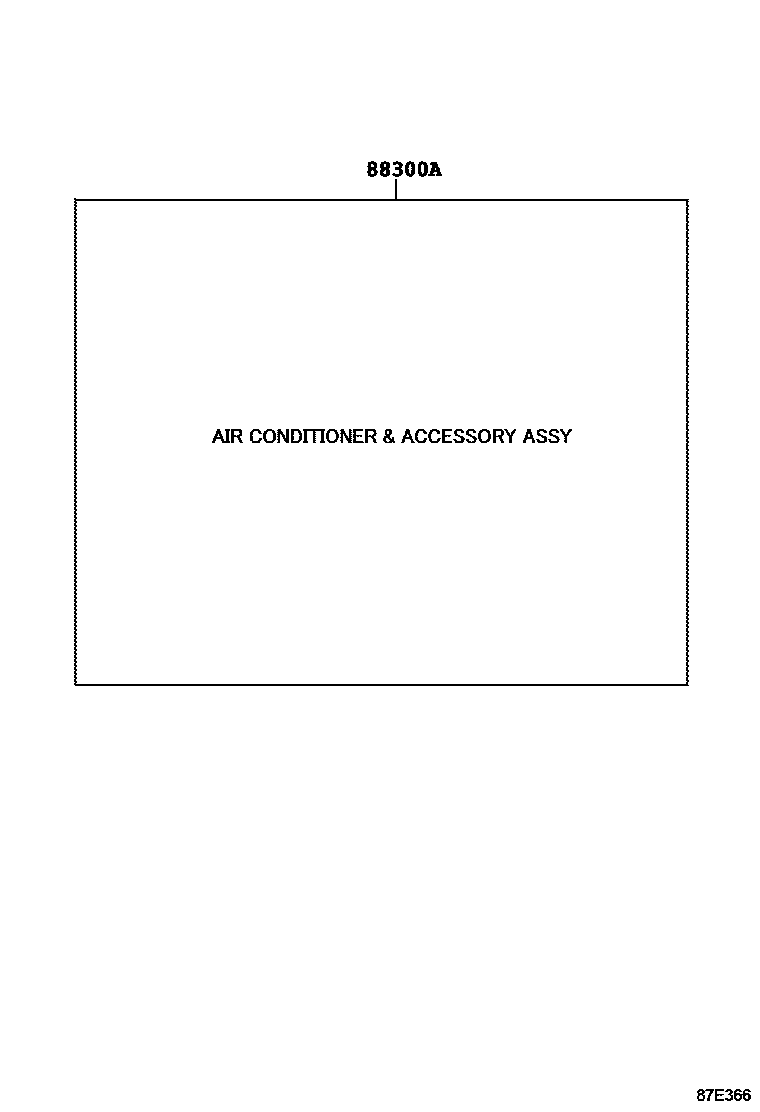

Parts diagram
88300AAIR CONDITIONER & ACCESSORY ASSY
main88300-0D440i201407-201607
FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D441i201607-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION
main88300-0D450i201407-201607
COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D451i201607-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D460i201407-201511
FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D461i201607-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION
main88300-0D470i201407-201607
COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D471i201607-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D480i201407-201511
FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D481i201607-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION
main88300-0D490i201407-201607
COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D491i201607-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D520i201407-201607
COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D521i201607-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D590i201607-201703
FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D600i201607-201703
COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D610i201607-201703
FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D630i201607-201703
FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D640i201607-201703
COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D650i201607-201703
COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88300-0D810i201703-201805
COLD AREA SPEC & W(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota YARIS/HYBRID(FRP)

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota YARIS/HYBRID(FRP). Key components include: AIR CONDITIONER & ACCESSORY ASSY.
