Toyota YARIS/HYBRID(FRP) — FRONT SPRING & SHOCK ABSORBER

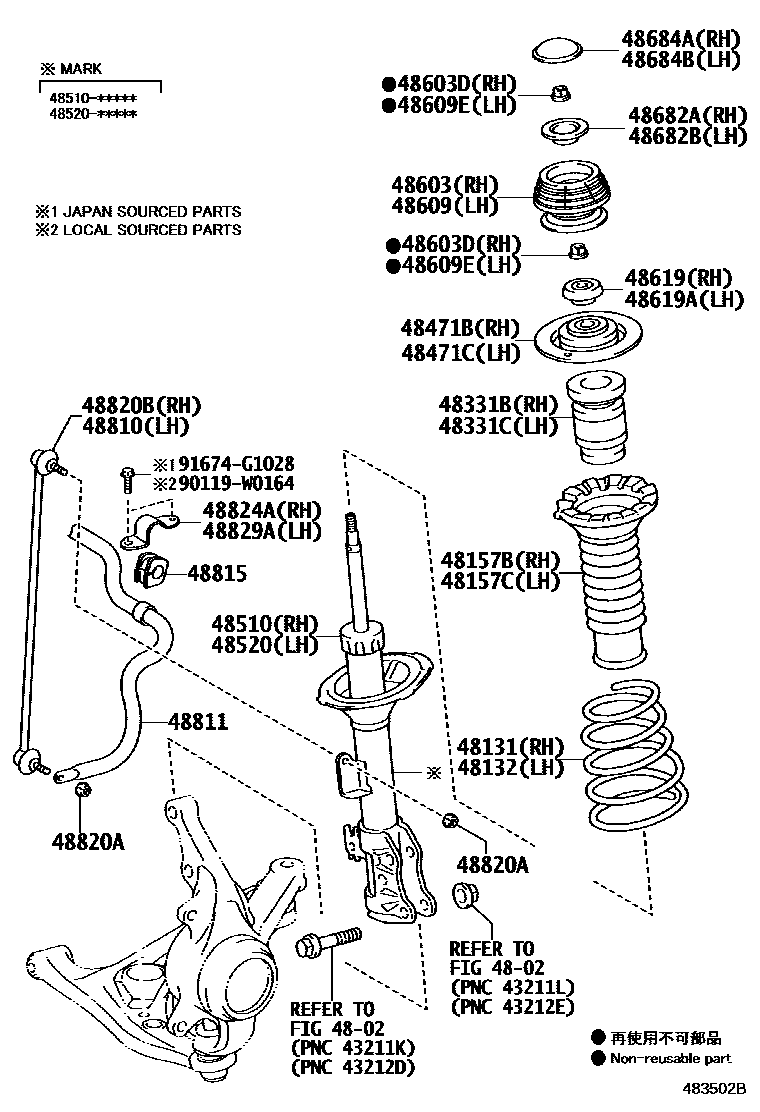

Parts diagram
4802
48131SPRING, FRONT COIL, RH
main48131-0D620i201107-201301
main48131-0D630i201107-201301
sub48131-0D631
main48131-0D660i201107-201301
TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48131-0D660i201107-201301
TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
main48131-0D660i201107-201301
MOON ROOF-WITH(PANORAMIC ROOF)
main48131-0D670i201301-201406
sub48131-0D671
main48131-0D690i201107-201301
main48131-0D700i201107-201301
MOON ROOF-WITH(PANORAMIC ROOF)
main48131-0D700i201107-201301
TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
main48131-0D700i201107-201301
TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48131-0D730i201204-201301
MARK=WHITE
main48131-0DB30i201301-201407
MARK=LIGHT PINK
main48131-0DB40i201301-201407
sub48131-0DB41
main48131-0DB50i201301-201407
main48131-0DB60i201301-201407
main48131-0DB70i201301-201407
48132SPRING, FRONT COIL, LH
main48131-0D620i201107-201301
main48131-0D630i201107-201301
sub48131-0D631
main48131-0D660i201107-201301
TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48131-0D660i201107-201301
TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
main48131-0D660i201107-201301
MOON ROOF-WITH(PANORAMIC ROOF)
main48131-0D670i201301-201406
sub48131-0D671
main48131-0D690i201107-201301
main48131-0D700i201107-201301
TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48131-0D700i201107-201301
TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
main48131-0D700i201107-201301
MOON ROOF-WITH(PANORAMIC ROOF)
main48131-0D730i201204-201301
MARK=WHITE
main48131-0DB30i201301-201407
MARK=LIGHT PINK
main48131-0DB40i201301-201407
sub48131-0DB41
main48131-0DB50i201301-201407
main48131-0DB60i201301-201407
main48131-0DB70i201301-201407
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-0D050i201107
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-0D050i201107
48331BBUMPER, FRONT SPRING, RH
main48331-0D150i201301
main48331-52100i201107-201301
48331CBUMPER, FRONT SPRING, LH
main48331-0D150i201301
main48331-52100i201107-201301
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48471-0D140i201307
main48471-52030i201107-201307
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48471-0D140i201307
main48471-52030i201107-201307
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-0D400i201107-201301
MARK 48510-0D400,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF)
main48510-0D400i201107-201301
MARK 48510-0D400
main48510-0D400i201107-201301
MARK 48510-0D400,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM
main48510-0D400i201107-201301
MARK 48510-0D400,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48510-0D410i201107-201301
MARK 48510-0D410
main48510-0D410i201107-201301
MARK 48510-0D410,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
main48510-0D410i201107-201301
MARK 48510-0D410,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48510-0D410i201107-201301
MARK 48510-0D410,MOON ROOF-WITH(PANORAMIC ROOF)
main48510-0D420i201107-201204
MARK 48510-0D420,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM
main48510-0D420i201107-201204
MARK 48510-0D420
main48510-0D420i201107-201204
MARK 48510-0D420,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48510-0D420i201107-201204
MARK 48510-0D420,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF)
main48510-0D421i201204-201301
MARK 48510-0D420
main48510-0D421i201204-201301
MARK 48510-0D420,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF)
main48510-0D421i201204-201301
MARK 48510-0D420,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48510-0D421i201204-201301
MARK 48510-0D420,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM
main48510-0D430i201107-201301
MARK 48510-0D430
main48510-0D430i201107-201301
MARK 48510-0D430,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
main48510-0D430i201107-201301
MARK 48510-0D430,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48510-0D430i201107-201301
MARK 48510-0D430,MOON ROOF-WITH(PANORAMIC ROOF)
main48510-0D440i201204-201301
MARK 48510-0D440
main48510-0D800i201301-201407
MARK 48510-0D800
main48510-0D810i201301-201407
MARK 48510-0D810
main48510-0D820i201301-201407
MARK 48510-0D820
main48510-0D830i201301-201407
MARK 48510-0D830
main48510-0D840i201301-201407
MARK 48510-0D840
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-0D150i201107-201301
MARK 48520-0D150,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF)
main48520-0D150i201107-201301
MARK 48520-0D150
main48520-0D150i201107-201301
MARK 48520-0D150,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM
main48520-0D150i201107-201301
MARK 48520-0D150,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48520-0D160i201107-201301
MARK 48520-0D160
main48520-0D160i201107-201301
MARK 48520-0D160,MOON ROOF-WITH(PANORAMIC ROOF)
main48520-0D160i201107-201301
MARK 48520-0D160,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48520-0D160i201107-201301
MARK 48520-0D160,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
main48520-0D170i201107-201204
MARK 48520-0D170,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM
main48520-0D170i201107-201204
MARK 48520-0D170,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48520-0D170i201107-201204
MARK 48520-0D170,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF)
main48520-0D170i201107-201204
MARK 48520-0D170
main48520-0D171i201204-201301
MARK 48520-0D171,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48520-0D171i201204-201301
MARK 48520-0D171,TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM
main48520-0D171i201204-201301
MARK 48520-0D171
main48520-0D171i201204-201301
MARK 48520-0D171,TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT)&MOON ROOF-WITH(PANORAMIC ROOF)
main48520-0D180i201107-201301
MARK 48520-0D180,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM&MOON ROOF-WITH(PANORAMIC ROOF)
main48520-0D180i201107-201301
MARK 48520-0D180
main48520-0D180i201107-201301
MARK 48520-0D180,TIRE & DISC WHEEL-195/50R16, 6J, ALUMINUM
main48520-0D180i201107-201301
MARK 48520-0D180,MOON ROOF-WITH(PANORAMIC ROOF)
main48520-0D190i201204-201301
MARK 48520-0D190
main48520-0D230i201301-201407
MARK 48520-0D230
main48520-0D240i201301-201407
MARK 48520-0D240
main48520-0D250i201301-201407
MARK 48520-0D250
main48520-0D260i201301-201407
MARK 48520-0D260
main48520-0D270i201301-201407
MARK 48520-0D270
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-0D040i201107
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90178-W0015i201107
(L)
main90179-12145i201107
(J)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-0D040i201107
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90178-W0015i201107
(L)
main90179-12145i201107
(J)
48619BEARING, STRUT MOUNTING, RH
main48619-52040i201107
48619ABEARING, STRUT MOUNTING, LH
main48619-52040i201107
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
main48682-0D021i201107
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
main48682-0D021i201107
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-52020i201107
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-52020i201107
48810LINK ASSY, FRONT STABILIZER, LH
main48820-0D010i201107
48811BAR, STABILIZER, FRONT
main48811-0D150i201107
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-0D100i201107
48820ANUT(FOR FRONT STABILIZER LINK)
main90179-12151i201107
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-0D010i201107
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-52060i201107
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-52060i201107
90119W0164
main90119-W0164
91674G1028
main91674-G1028

30 parts on this diagram · 1 diagram in section
