Toyota YARIS/HYBRID(FRP) — FRONT SEAT & SEAT TRACK

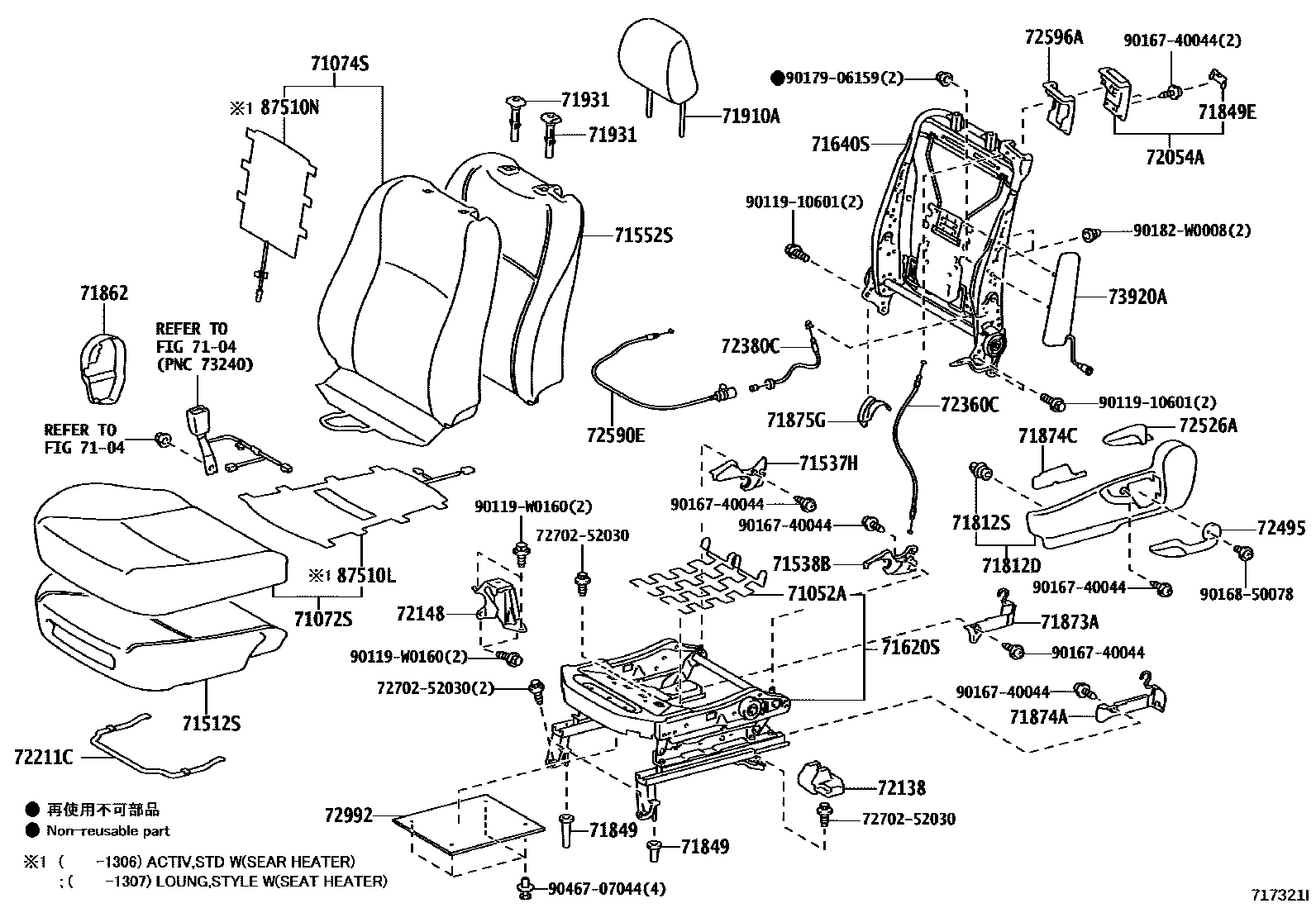

Parts diagram
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-0D060i201107-201407
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0D160-B0i201107-201112
GRAY,TRIM1#
main71072-0D161-B0i201201-201303
GRAY,TRIM1#
sub71072-0D162
main71072-0D162-B0i201303-201407
GRAY,TRIM1#
main71072-0D840-C0i201107-201112
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
main71072-0D840-C0i201107-201112
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
main71072-0D840-C0i201107-201112
BLACK,TRIM1#
main71072-0D840-C0i201107-201112
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0D841-C0i201201-201303
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
sub71072-0D842
main71072-0D841-C0i201201-201303
BLACK,TRIM1#
sub71072-0D842
main71072-0D841-C0i201201-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71072-0D842
main71072-0D841-C0i201201-201303
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
sub71072-0D842
main71072-0D842-C0i201303-201407
BLACK,TRIM1#
main71072-0D842-C0i201303-201407
HV ENTRY PACKAGE,BLACK,TRIM1#
main71072-0D842-C0i201303-201407
HV SIMPLE PACKAGE,BLACK,TRIM1#
main71072-0D842-C0i201303-201407
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
main71072-0D842-C0i201303-201407
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0D842-C0i201303-201407
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
main71072-0D870-C0i201107-201112
BLACK,TRIM1#
main71072-0D871-C0i201201-201303
BLACK,TRIM1#
main71072-0D873-C3i201303-201407
BLACK,TRIM1#
main71072-0D890-B0i201107-201112
GRAY,TRIM1#
main71072-0D891-B0i201201-201303
GRAY,TRIM1#
sub71072-0D892
main71072-0D892-B0i201303-201407
FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),GRAY,TRIM1#
main71072-0D892-B0i201303-201407
GRAY,TRIM1#
main71072-0DA10-C0i201107-201112
BLACK,TRIM1#
main71072-0DA11-C0i201201-201303
BLACK,TRIM1#
sub71072-0DA12
main71072-0DA11-C1i201204-201303
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#
sub71072-0DA12
main71072-0DA11-C1i201204-201303
BLACK,TRIM1#
sub71072-0DA12
main71072-0DA12-C0i201303-201407
FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#
main71072-0DA12-C0i201303-201407
BLACK,TRIM1#
main71072-0DA12-C1i201303-201407
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#
main71072-0DA12-C1i201303-201407
BLACK,TRIM1#
main71072-0DA51-C1i201204-201303
BLACK,TRIM1#
sub71072-0DA52
main71072-0DA52-C1i201303-201407
BLACK,TRIM1#
main71072-0DA52-C1i201303-201407
FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#
main71072-0DA70-C0i201107-201112
BLACK,TRIM1#
main71072-0DA70-C0i201107-201112
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&ENTRY GRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0DA70-C0i201107-201112
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0DA71-C0i201201-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&ENTRY GRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71072-0DA72
main71072-0DA71-C0i201201-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71072-0DA72
main71072-0DA71-C0i201201-201303
BLACK,TRIM1#
sub71072-0DA72
main71072-0DA72-C0i201303-201407
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0DA72-C0i201303-201407
HV ENTRY PACKAGE,BLACK,TRIM1#
main71072-0DA72-C0i201303-201407
HV SIMPLE PACKAGE,BLACK,TRIM1#
main71072-0DA72-C0i201303-201407
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&ENTRY GRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0DA72-C0i201303-201407
BLACK,TRIM1#
main71072-0DA80-C0i201107-201112
BLACK,TRIM1#
main71072-0DA81-C0i201201-201303
BLACK,TRIM1#
main71072-0DA83-C3i201303-201407
BLACK,TRIM1#
main71072-0DB10-C0i201107-201112
BLACK,TRIM1#
main71072-0DB11-C0i201201-201303
BLACK,TRIM1#
sub71072-0DB12
main71072-0DB12-C0i201303-201407
BLACK,TRIM1#
main71072-0DB40-C0i201107-201112
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
main71072-0DB40-C0i201107-201112
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
main71072-0DB40-C0i201107-201112
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0DB40-C0i201107-201112
BLACK,TRIM1#
main71072-0DB41-C0i201201-201303
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
sub71072-0DB42
main71072-0DB41-C0i201201-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71072-0DB42
main71072-0DB41-C0i201201-201303
BLACK,TRIM1#
sub71072-0DB42
main71072-0DB41-C0i201201-201303
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
sub71072-0DB42
main71072-0DB42-C0i201303-201407
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
main71072-0DB42-C0i201303-201407
BLACK,TRIM1#
main71072-0DB42-C0i201303-201407
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0DB42-C0i201303-201407
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
main71072-0DB60-C1i201107-201112
BLACK,TRIM1#
main71072-0DB61-C1i201201-201303
BLACK,TRIM1#
main71072-0DB63-C2i201303-201407
BLACK,TRIM1#
main71072-0DB80-B0i201107-201112
GRAY,TRIM1#
main71072-0DB81-B0i201201-201303
GRAY,TRIM1#
sub71072-0DB82
main71072-0DB82-B0i201303-201407
GRAY,TRIM1#
main71072-0DC00-C0i201107-201112
BLACK,TRIM1#
main71072-0DC01-C0i201201-201303
BLACK,TRIM1#
sub71072-0DC02
main71072-0DC02-C0i201303-201407
BLACK,TRIM1#
main71072-0DC60-C0i201107-201112
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&ENTRY GRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0DC60-C0i201107-201112
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0DC60-C0i201107-201112
BLACK,TRIM1#
main71072-0DC61-C0i201201-201303
BLACK,TRIM1#
sub71072-0DC62
main71072-0DC61-C0i201201-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71072-0DC62
main71072-0DC61-C0i201201-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&ENTRY GRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71072-0DC62
main71072-0DC62-C0i201303-201407
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&ENTRY GRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0DC62-C0i201303-201407
BLACK,TRIM1#
main71072-0DC62-C0i201303-201407
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71072-0DC70-C1i201107-201112
BLACK,TRIM1#
main71072-0DC71-C1i201201-201303
BLACK,TRIM1#
main71072-0DC73-C2i201303-201407
BLACK,TRIM1#
main71072-0DC80-C0i201204-201303
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#
sub71072-0DC81
main71072-0DC80-C0i201204-201303
BLACK,TRIM1#
sub71072-0DC81
main71072-0DC81-C0i201303-201407
BLACK,TRIM1#
main71072-0DC81-C0i201303-201407
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#
main71072-0DR60-B0i201303-201407
GRAY,TRIM1#
main71072-0DR70-C0i201303-201407
BLACK,TRIM1#
main71072-0DR90-C0i201303-201407
BLACK,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0D640-C1i201107-201204
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71074-0D640-C1i201107-201204
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D640-C1i201107-201204
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D640-C1i201107-201204
BLACK,TRIM1#
main71074-0D640-C2i201204-201303
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D640-C2i201204-201303
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D640-C2i201204-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71074-0D640-C2i201204-201303
BLACK,TRIM1#
main71074-0D641-C2i201303-201407
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71074-0D641-C2i201303-201407
BLACK,TRIM1#
main71074-0D641-C2i201303-201407
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D641-C2i201303-201407
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D670-C1i201107-201204
BLACK,TRIM1#
main71074-0D670-C3i201204-201303
BLACK,TRIM1#
main71074-0D672-C4i201303-201407
BLACK,TRIM1#
main71074-0D690-B1i201107-201204
GRAY/BLACK,TRIM1#
sub71074-0D691
main71074-0D690-B2i201204-201303
GRAY/BLACK,TRIM1#
sub71074-0D691
main71074-0D691-B2i201303-201407
GRAY/BLACK,TRIM1#
main71074-0D710-C1i201107-201204
BLACK,TRIM1#
sub71074-0D711
main71074-0D710-C2i201204-201303
BLACK,TRIM1#
sub71074-0D711
main71074-0D711-C2i201303-201407
BLACK,TRIM1#
main71074-0D770-C1i201107-201204
BLACK,TRIM1#
main71074-0D770-C3i201204-201303
BLACK,TRIM1#
main71074-0D772-C4i201303-201407
BLACK,TRIM1#
main71074-0D780-C1i201107-201204
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D780-C1i201107-201204
BLACK,TRIM1#
main71074-0D780-C1i201107-201204
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71074-0D780-C1i201107-201204
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D780-C2i201204-201303
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D780-C2i201204-201303
HV SIMPLE PACKAGE,BLACK,TRIM1#
main71074-0D780-C2i201204-201303
HV ENTRY PACKAGE,BLACK,TRIM1#
main71074-0D780-C2i201204-201303
BLACK,TRIM1#
main71074-0D780-C2i201204-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71074-0D780-C2i201204-201303
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D781-C2i201303-201407
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
main71074-0D781-C2i201303-201407
BLACK,TRIM1#
main71074-0D781-C2i201303-201407
TURKEY SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D781-C2i201303-201407
ISRAEL SPEC&ENTRY GRADE,BLACK,TRIM1#
main71074-0D781-C2i201303-201407
HV SIMPLE PACKAGE,BLACK,TRIM1#
main71074-0D781-C2i201303-201407
HV ENTRY PACKAGE,BLACK,TRIM1#
main71074-0D800-C1i201107-201204
BLACK,TRIM1#
main71074-0D800-C4i201204-201303
BLACK,TRIM1#
main71074-0D802-C5i201303-201407
BLACK,TRIM1#
main71074-0D820-B1i201107-201204
GRAY,TRIM1#
sub71074-0D822
main71074-0D820-B2i201204-201307
GRAY,TRIM1#
sub71074-0D822
main71074-0D822-B2i201307-201407
GRAY,TRIM1#
main71074-0D840-C1i201107-201204
BLACK,TRIM1#
sub71074-0D841
main71074-0D840-C3i201204-201303
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#
sub71074-0D841
main71074-0D840-C3i201204-201303
BLACK,TRIM1#
sub71074-0D841
main71074-0D840-C4i201204-201303
BLACK,TRIM1#
sub71074-0D841
main71074-0D841-C3i201303-201407
BLACK,TRIM1#
main71074-0D841-C3i201303-201407
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#
main71074-0D841-C4i201303-201407
BLACK,TRIM1#
main71074-0D880-C3i201204-201307
BLACK,TRIM1#
main71074-0D881-C3i201307-201407
BLACK,TRIM1#
main71074-0DA00-C1i201107-201204
BLACK,TRIM1#
main71074-0DA00-C4i201204-201303
BLACK,TRIM1#
main71074-0DA02-C5i201303-201407
BLACK,TRIM1#
main71074-0DA20-C3i201204-201407
BLACK,TRIM1#
main71074-0DA30-B1i201107-201204
GRAY,TRIM1#
sub71074-0DA31
main71074-0DA30-B2i201204-201303
GRAY,TRIM1#
sub71074-0DA31
main71074-0DA31-B2i201303-201407
GRAY,TRIM1#
main71074-0DA40-C1i201107-201204
BLACK,TRIM1#
sub71074-0DA42
main71074-0DA40-C2i201204-201307
BLACK,TRIM1#
sub71074-0DA42
main71074-0DA42-C2i201307-201407
BLACK,TRIM1#
main71074-0DA60-C0i201107-201204
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71074-0DA61
main71074-0DA60-C0i201107-201204
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&ENTRY GRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71074-0DA61
main71074-0DA60-C0i201107-201204
BLACK,TRIM1#
sub71074-0DA61
main71074-0DA60-C1i201204-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&ENTRY GRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71074-0DA61
main71074-0DA60-C1i201204-201303
BLACK,TRIM1#
sub71074-0DA61
main71074-0DA60-C1i201204-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71074-0DA61
main71074-0DA61-C1i201303-201307
BLACK,TRIM1#
main71074-0DA70-C0i201107-201204
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71074-0DA71
main71074-0DA70-C0i201107-201204
BLACK,TRIM1#
sub71074-0DA71
main71074-0DA70-C0i201107-201204
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&ENTRY GRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71074-0DA71
main71074-0DA70-C1i201204-201303
HV ENTRY PACKAGE,BLACK,TRIM1#
sub71074-0DA71
main71074-0DA70-C1i201204-201303
BLACK,TRIM1#
sub71074-0DA71
main71074-0DA70-C1i201204-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ENTRYGRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71074-0DA71
main71074-0DA70-C1i201204-201303
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&ENTRY GRADE&VSC-WITHOUT,BLACK,TRIM1#
sub71074-0DA71
main71074-0DA70-C1i201204-201303
HV SIMPLE PACKAGE,BLACK,TRIM1#
sub71074-0DA71
main71074-0DA71-C1i201303-201307
BLACK,TRIM1#
main71074-0DA80-C1i201204-201303
BLACK,TRIM1#
main71074-0DA81-C1i201303-201407
BLACK,TRIM1#
main71074-0DP70-B0i201307-201407
GRAY,TRIM1#
main71074-0DP80-C0i201307-201407
BLACK,TRIM1#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-0D020i201107-201407
main71502-0D040i201107-201407
main71512-0D190i201107-201407
main71512-0D210i201107-201407
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-0D010-C0i201107-201407
BLACK,TRIM1#
sub71537-0D010
main71537-0D020-C0i201107-201407
BLACK,TRIM1#
sub71537-0D020
main71537-0D030-C0i201107-201407
BLACK,TRIM1#
sub71537-0D030
main71537-0D040-C0i201107-201407
BLACK,TRIM1#
sub71537-0D040
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-0D010-C0i201107-201407
BLACK,TRIM1#
sub71538-0D010
main71538-0D020-C0i201107-201407
BLACK,TRIM1#
sub71538-0D020
main71538-0D030-C0i201107-201407
BLACK,TRIM1#
sub71538-0D030
main71538-0D040-C0i201107-201407
BLACK,TRIM1#
sub71538-0D040
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0D210i201107-201407
main71552-0D220i201107-201407
main71552-0D230i201107-201407
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-0D131i201107-201110
sub71620-0D132
main71620-0D132i201111-201311
sub71620-0D133
sub73214-75010
main71620-0D133i201311-201407
main71620-0D141i201107-201110
sub71620-0D142
main71620-0D142i201111-201311
sub71620-0D143
sub73214-75010
main71620-0D143i201311-201407
main71620-0D161i201107-201110
sub71620-0D162
main71620-0D162i201111-201311
sub71620-0D163
sub73214-75010
main71620-0D163i201311-201407
SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)
main71620-0D163i201311-201407
FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)
main71620-0D163i201311-201407
SEAT COVER MATERIAL-INDIGO / LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)
main71620-0D171i201107-201110
sub71620-0D172
main71620-0D172i201111-201311
sub71620-0D173
sub73214-75010
main71620-0D173i201311-201407
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-0D200-C0i201107-201407
BLACK,TRIM1#
main71640-0D210-C0i201107-201407
BLACK,TRIM1#
sub71640-0D210
main71640-0D220-C0i201107-201407
BLACK,TRIM1#
main71640-0D230-C0i201107-201407
BLACK,TRIM1#
sub71640-0D230
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0D180-C0i201107-201407
BLACK,TRIM1#
sub71812-0D180
main71812-0D190-C0i201107-201407
BLACK,TRIM1#
sub71812-0D190
main71812-0D200-C0i201107-201407
BLACK,TRIM1#
sub71812-0D200
main71812-0D210-C0i201107-201407
BLACK,TRIM1#
sub71812-0D210
71812SCLIP, FRONT SEAT CUSHION SHIELD, LH
main71769-47020i201107-201407
71849CAP, SEAT ADJUSTER COVER, LH
main71848-0D040-C0i201107-201407
BLACK,TRIM1#,OUTER
sub71848-0D040
main71848-0D050-C0i201107-201407
BLACK,TRIM1#,INNER
sub71848-0D050
71849ECAP, RECLINING REMOTE CONTROL, LH
main71848-0D060-C0i201107-201407
BLACK,TRIM1#
sub71848-0D060
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0D130-C0i201107-201407
BLACK,TRIM1#
sub71862-0D130
main71862-0D140-C0i201107-201407
BLACK,TRIM1#
sub71862-0D140
main71862-0D150-C0i201107-201407
BLACK,TRIM1#
sub71862-0D150
main71862-0D160-C0i201107-201407
BLACK,TRIM1#
sub71862-0D160
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-0D110-C0i201107-201407
BLACK,TRIM1#
sub71873-0D110
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-0D130-C0i201107-201407
BLACK,TRIM1#
sub71873-0D130
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0D120-C0i201107-201407
BLACK,TRIM1#
sub71874-0D120
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0D110-C0i201107-201407
BLACK,TRIM1#
sub71874-0D110
71874CSHIELD, FRONT SEAT CUSHION, LOWER
main71874-0D150-C0i201107-201407
BLACK,TRIM1#
sub71874-0D150
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-0D200-C0i201107-201407
BLACK,TRIM1#
sub71875-0D200
71910AHEADREST ASSY, FRONT SEAT
main71910-0D560-C0i201107-201407
BLACK,TRIM1#
main71910-0D870-C0i201204-201407
BLACK,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-C0i201107-201407
W(LOCK),BLACK,TRIM1#
sub71930-47020
main71931-47020-C0i201107-201407
W/O(LOCK),BLACK,TRIM1#
sub71931-47020
72054ALEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
main72053-0D010-C0i201107-201407
BLACK,TRIM1#
sub72053-0D010
72138COVER, SEAT TRACK, OUTER LH
main72138-0D070-C0i201107-201407
BLACK,TRIM1#
sub72138-0D070
72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
main72148-0D070i201107
72211HANDLE, SEAT TRACK ADJUSTING
main72211-0D110i201107
main72211-0D120i201107
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-0D110i201107-201407
main72211-0D120i201107-201407
72360CCABLE ASSY, RECLINING ADJUSTER EQUALIZING LH
main72360-0D010i201107-201407
72380CCABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 LH
main72380-0D030i201107-201407
sub72380-0D040
sub72380-0D050
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-0D010-C0i201107-201407
BLACK,TRIM1#
sub72495-0D010
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-0D190-C0i201107-201407
BLACK,TRIM1#
sub72526-0D190
72590ECABLE ASSY, RECLINING REMOTE CONTROL, LH
main72590-0D010i201107-201407
sub72380-0D040
72596ABASE, RECLINING REMOTE CONTROL, LH
main72595-0D010i201107-201407
72992COVER, FRONT SEAT CUSHION, LH
main72991-0D120i201107-201407
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0D060i201107-201305
sub73920-0D061
main73920-0D061i201306-201407
sub73920-0D062
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510NHEATER ASSY, FRONT SEATBACK, LH
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
9011910601
main90119-10601
90119W0160
main90119-W0160
9016740044
main90167-40044
9016850078
main90168-50078
9017906159
main90179-06159
90182W0008
main90182-W0008
9046707044
main90467-07044

46 parts on this diagram · 11 diagrams in section

Toyota YARIS/HYBRID(FRP) FRONT SEAT & SEAT TRACK — Parts Diagram | EPC Data
