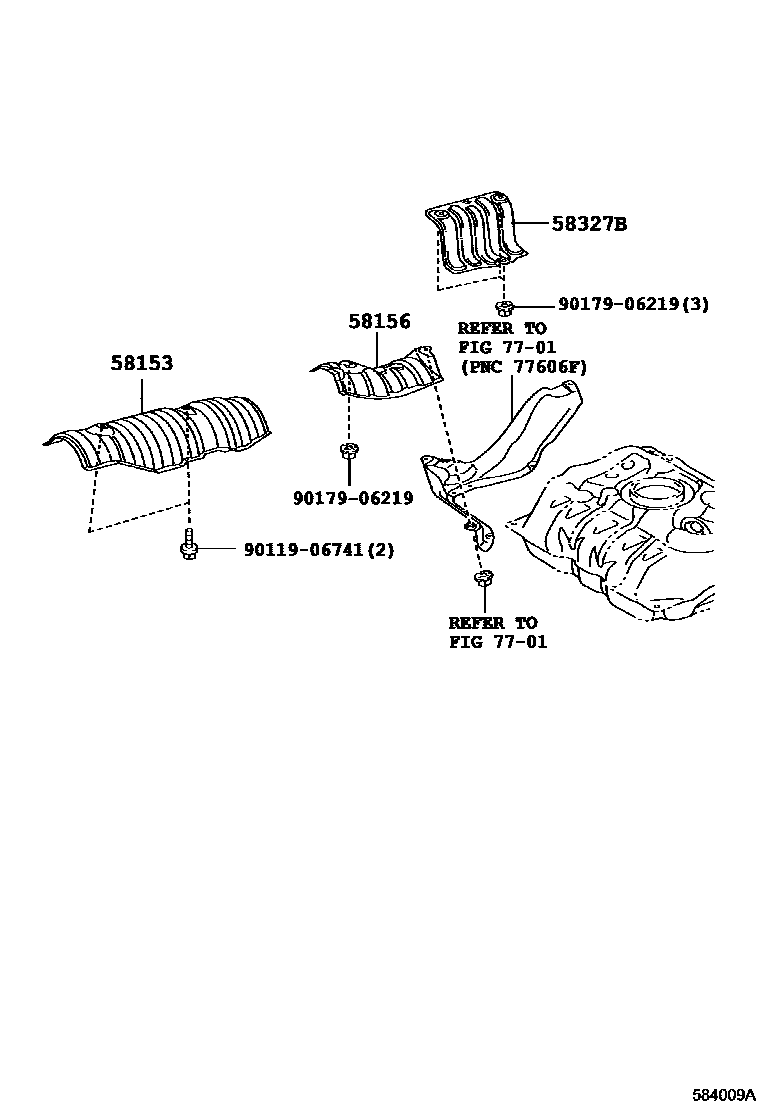

Toyota YARIS/HYBRID(FRP) — FLOOR INSULATOR

0001 1 0002 1 0003 1

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0D040iKSP130201107-201407

main58153-0D050iNSP130201107-201407

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-0D010iKSP130,NHP130,NSP130201107

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0D050iKSP130,NHP130201107

7701

9011906741

main90119-06741

9017906219

main90179-06219

6 parts on this diagram · 3 diagrams in section
