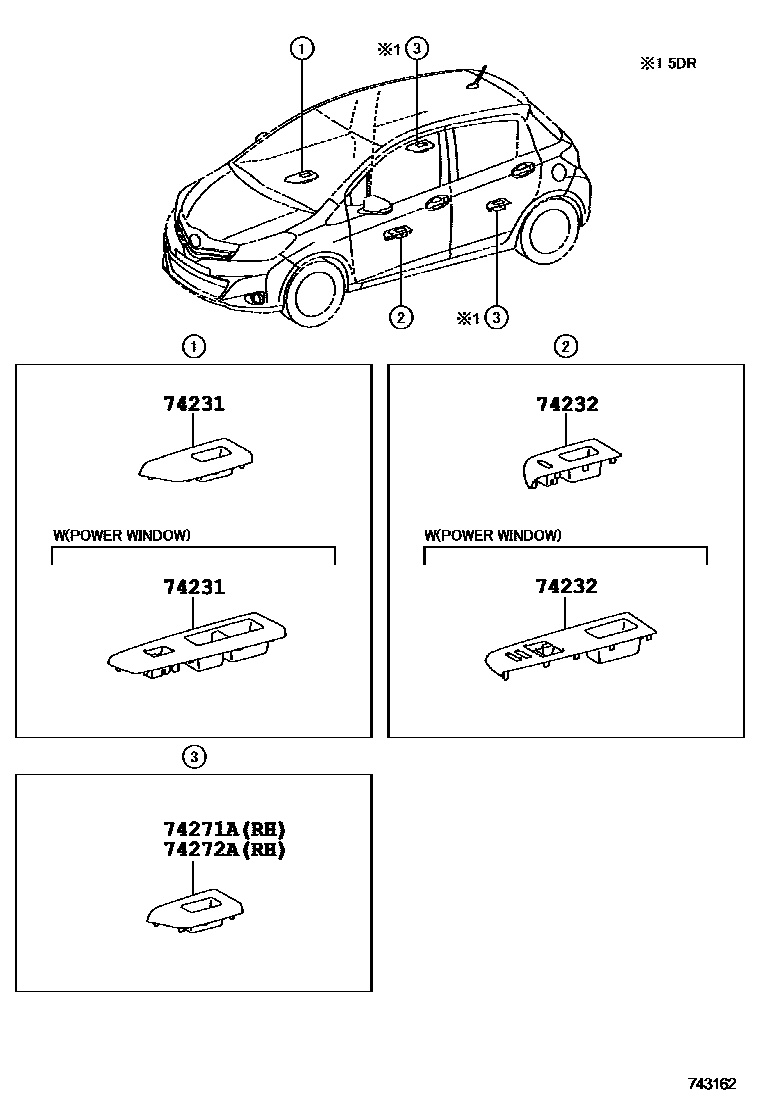

Toyota YARIS/HYBRID(FRP) — ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0D300-C0iKSP130,NLP130,NSP130..RHD..3D;KSP130,NHP130,NLP130,NSP130..RHD..5D..(ACTIV,STD,STYLE)201107-201407

BLACK,TRIM1#

main74231-0D310-C0iKSP130,NHP130,NLP130,NSP130..RHD..5D..LOUNG201107-201407

BLACK,TRIM1#

main74231-0D310-C0iKSP130,NHP130,NLP130,NSP130..RHD..5D..LOUNG201107-201407

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

main74231-0D330-C0iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

BLACK,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0D320-C0iKSP130,NHP130,NLP130,NSP130..RHD201107-201407

BLACK,TRIM1#

main74232-0D330-C0iKSP130,NSP130..LHD..3D;NLP130..LHD..3D..LOUNG;NLP130..LHD..(ACTIV,STD,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD,STYLE)201107-201407

BLACK,TRIM1#

main74232-0D340-C0iKSP130,NHP130,NLP130,NSP130..LHD..5D..LOUNG201107-201407

BLACK,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0D110-C0iKSP130,NHP130,NLP130,NSP130..5D..LOUNG201107-201407

BLACK,TRIM1#

main74271-0D110-C0iKSP130,NHP130,NLP130,NSP130..5D..LOUNG201107-201407

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

main74271-0D120-C0iKSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STD,STYLE)201107-201407

BLACK,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0D110-C0iKSP130,NHP130,NLP130,NSP130..5D..LOUNG201107-201407

BLACK,TRIM1#

main74272-0D110-C0iKSP130,NHP130,NLP130,NSP130..5D..LOUNG201107-201407

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#

main74272-0D120-C0iKSP130,NHP130,NLP130,NSP130..5D..(ACTIV,STD,STYLE)201107-201407

BLACK,TRIM1#

4 parts on this diagram · 3 diagrams in section
