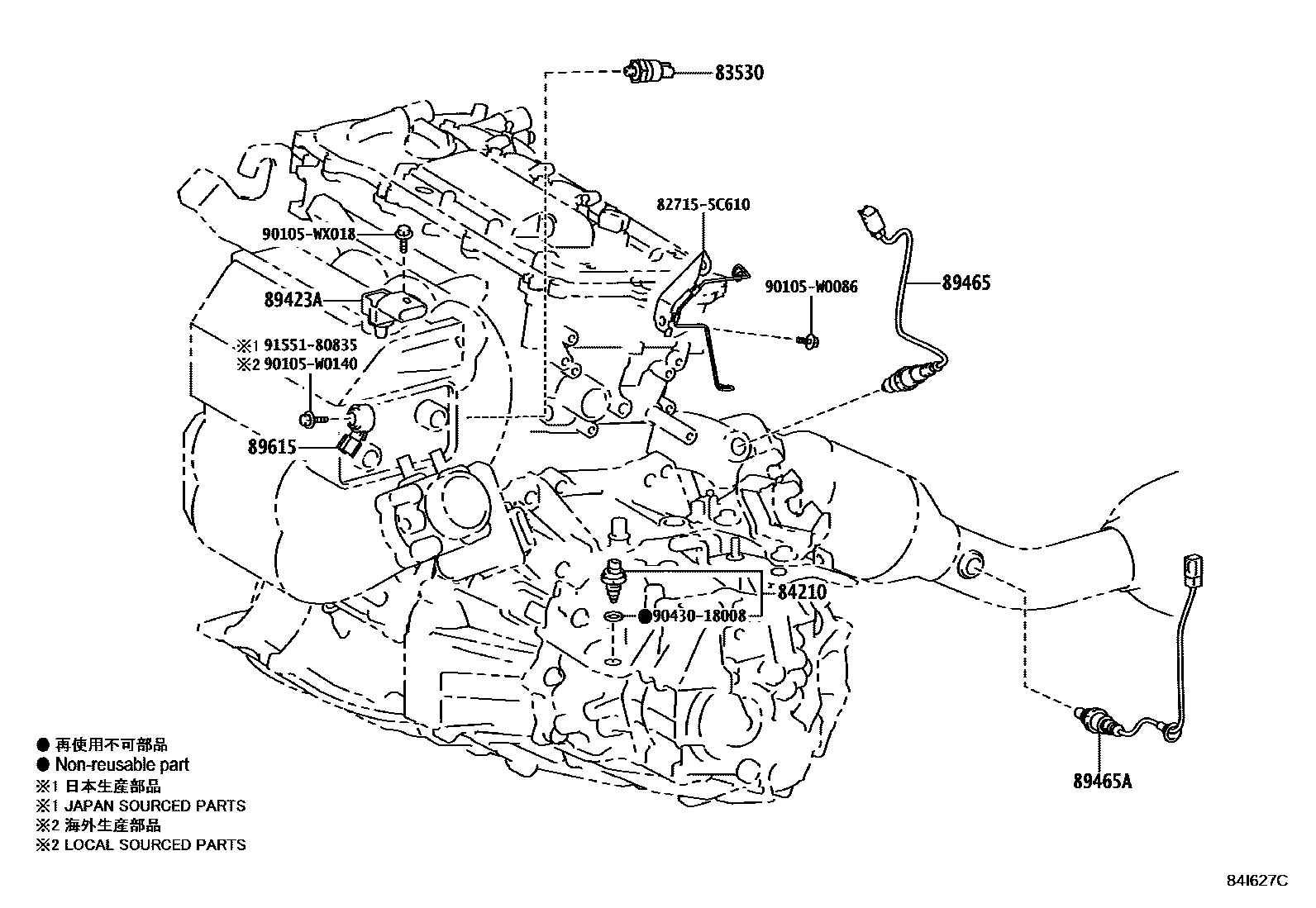

Toyota YARIS GRMN — SWITCH & RELAY & COMPUTER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
(L),VALEO
(J),DENSO,*369
(J),YAZAKI,*369
84210SWITCH ASSY, BACK-UP LAMP
89423ASENSOR, MANIFOLD TEMPERATURE
89465SENSOR, OXYGEN
89465ASENSOR, OXYGEN NO.2
89615SENSOR, KNOCK CONTROL
827155C610BRACKET,WIRING HARNESS CLAMP
main82715-5C610
90105W0086
main90105-W0086
90105W0140
main90105-W0140
90105WX018
main90105-WX018
9043018008
main90430-18008
9155180835
main91551-80835
12 parts on this diagram · 9 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota YARIS GRMN
This section contains 77 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota YARIS GRMN. Key components include: RELAY ASSY, STARTER, CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH, WIRING & CLAMP, INSTRUMENT PANEL FUSIBLE LINK, INSTRUMENT PANEL FUSE.
