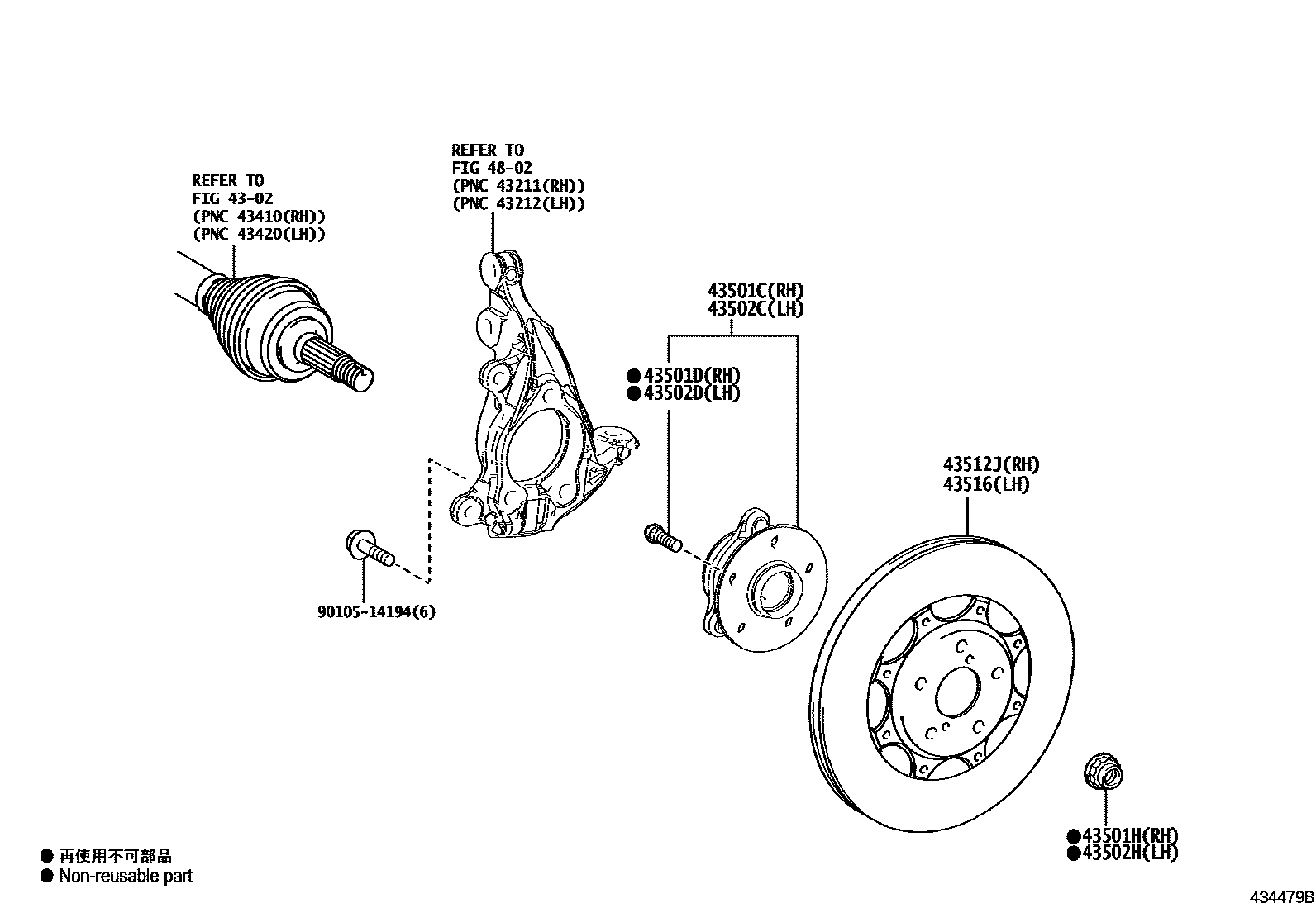

Toyota YARIS GR — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-52010i202008-202404

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i202008-202404

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i202008-202404

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-52010i202008-202404

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i202008-202404

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i202008-202404

43512JDISC, FRONT RH

main43512-52180i202008-202404

43516DISC, FRONT LH

main43516-52020i202008-202404

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota YARIS GR

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota YARIS GR. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
