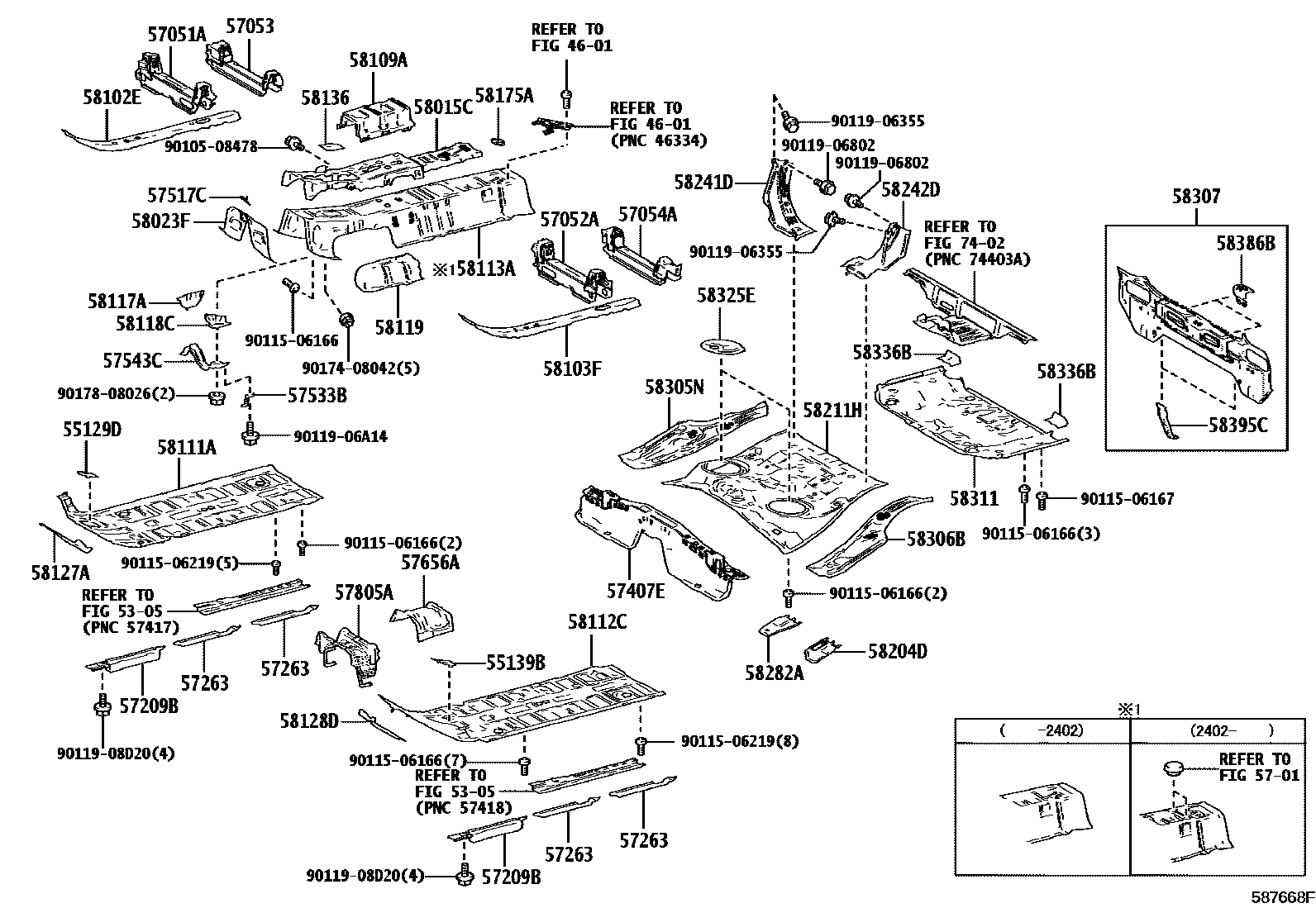

Toyota YARIS GR — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

4601

5305

55129DCOVER, DASH PANEL HOLE, RH

main55129-52060iGXPA16202404

main55129-K0010iGXPA16202008-202307

55139BCOVER, DASH PANEL HOLE, LH

main55139-52030iGXPA16202404

main55139-K0010iGXPA16202008-202307

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52090iGXPA16202404

main57051-52110iGXPA16202008-202404

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52080iGXPA16202404

main57052-52100iGXPA16202008-202404

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-52030iGXPA16202404

main57053-K0010iGXPA16202008-202404

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-52040iGXPA16202404

main57054-K0010iGXPA16202008-202404

57209BMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-52010×2iGXPA16202008-202404

57263PLATE, ENGINE REAR SUPPORT MEMBER CUSHION

main57263-52010×4iGXPA16202008-202404

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-52080iGXPA16202008-202404

57517CPLATE, SHIFT & SELECT CONTROL CABLE

main57517-52010iGXPA16202008-202404

57533BBRACE, FRONT FLOOR, CENTER

main57533-52040iGXPA16202008-202404

57543CBRACE, CENTER FLOOR, NO.1

main57543-52020iGXPA16202404

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-52140iGXPA16202404

main57656-K0020iGXPA16202008-202404

57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-K0020iGXPA16202008-202404

58015CPANEL SUB-ASSY, FRONT FLOOR HOUSING

main58015-52120iGXPA16202404

main58015-K0020iGXPA16202008-202404

58023FBRACKET SUB-ASSY, FLEXIBLE HOSE

main58023-K0010iGXPA16202008-202404

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-52020iGXPA16202008-202404

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58103-52080iGXPA16202008-202404

58109ARETAINER SUB-ASSY, PARKING BRAKE

main58109-52010iGXPA16202008-202404

58111APAN, FRONT FLOOR, RH

main58111-K0010iGXPA16202008-202404

58112CPAN, FRONT FLOOR, LH

main58112-K0010iGXPA16202008-202404

58113APANEL, FRONT FLOOR, CENTER

main58113-52940iGXPA16..LHD202008-202402

sub90950-01919

main58113-52941iGXPA16..RHD202008-202402

sub90950-01919

main58113-52942iGXPA16..LHD..EUR202404

main58113-52943iGXPA16..RHD202404

main58113-52944iGXPA16..CHI202412

main58113-52945iGXPA16..LHD202402-202404

main58113-52947iGXPA16..RHD202402-202404

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-52100iGXPA16202404

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-52050iGXPA16202008-202404

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-52030iGXPA16202008-202404

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-K0010iGXPA16202008-202404

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-K0010iGXPA16202008-202404

58136COVER, FRONT FLOOR HOLE

main58136-52020iGXPA16202008-202404

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-K0020iGXPA16202008-202404

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-52110iGXPA16202008-202404

58211HPAN, CENTER FLOOR

main58211-52340iGXPA16202008-202404

58241DGUSSET, WHEELHOUSE INNER, FRONT RH

main58241-52040iGXPA16202008-202404

58242DGUSSET, WHEELHOUSE INNER, FRONT LH

main58242-52030iGXPA16202008-202404

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-52070iGXPA16202404

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-12060iGXPA16202008-202404

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-12040iGXPA16202008-202404

58307PANEL SUB-ASSY, BODY LOWER BACK

main58302-52220iGXPA16..CHI202412

main58307-52720iGXPA16202008-202404

58311PAN, REAR FLOOR

main58311-52914iGXPA16202008-202404

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-10051×2iGXPA16202404

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-52020×2iGXPA16202008-202404

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020×2iGXPA16202008-202404

58395CRETAINER, TRANSPORT HOOK, RR

main58395-52010×2iGXPA16202008-202404

7402

9010508478

main90105-08478

9011506166

main90115-06166

9011506167

main90115-06167

9011506219

main90115-06219

9011906355

main90119-06355

9011906802

main90119-06802

9011906A14

main90119-06A14

9011908D20

main90119-08D20

9017408042

main90174-08042

9017808026

main90178-08026

56 parts on this diagram · 3 diagrams in section
