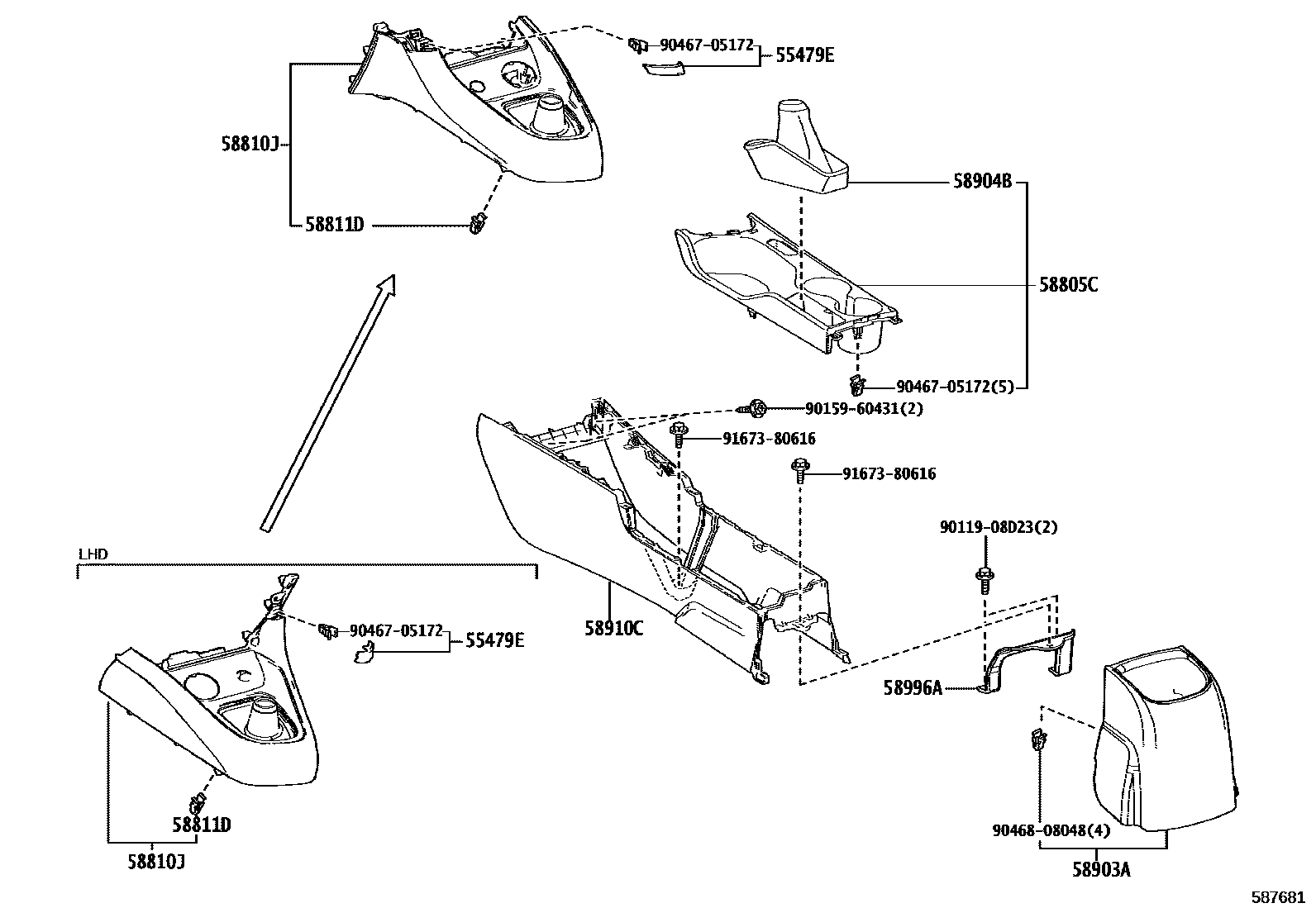

Toyota YARIS GR — CONSOLE BOX & BRACKET

0001 1 0002 1

55479ECOVER, INSTRUMENT, LOWER CENTER

main55479-K0030-C0iGXPA16..LHD202008-202404

BLACK,TRIM2#

main55479-K0040iGXPA16..RHD202008-202404

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-52060-C1iGXPA16..ARL202008-202107

BLACK/GR RED,TRIM21

main58805-52060-C2iGXPA16..ARL202008-202107

HI GRADE PACKAGE,BLACK/GRAY,TRIM20

main58805-52060-C4supersedes 58805-52060-C4iGXPA16..EUR202107-202404

BLACK/GR RED,TRIM21

main58805-52060-C6supersedes 58805-52060-C6iGXPA16..EUR202107-202404

BLACK/GRAY,TRIM20

main58805-52070-C0iGXPA16..ARL202008-202111

BLACK,TRIM2#

sub58805-52071

58810JBOX ASSY, CONSOLE

main58810-52040-C2iGXPA16..ARL202008-202012

BLACK,TRIM2#

main58810-52041-C2iGXPA16..ARL202101-202111

BLACK,TRIM2#

sub58810-52042

main58810-52050-C3iGXPA16..ARL202008-202101

BLACK/GR RED,TRIM21

sub58810-52130

main58810-52050-C4iGXPA16..ARL202008-202101

HI GRADE PACKAGE,BLACK/GRAY,TRIM20

sub58810-52130

main58810-52051-C3iGXPA16..ARL202101-202107

BLACK/GR RED,TRIM21

main58810-52051-C4iGXPA16..ARL202101-202107

HI GRADE PACKAGE,BLACK/GRAY,TRIM20

main58810-52051-C6supersedes 58810-52051-C6iGXPA16..RHD..EUR202107-202404

BLACK/SILVER/GR RED,TRIM21

main58810-52051-C8supersedes 58810-52051-C8iGXPA16..RHD..EUR202107-202404

BLACK/SILVER/GRAY,TRIM20

main58810-52060-C2iGXPA16..LHD202008-202101

BLACK/GR RED,TRIM21

sub58810-52140

main58810-52060-C3iGXPA16..LHD202008-202101

BLACK/GRAY,TRIM20

sub58810-52140

main58810-52061-C2iGXPA16..LHD202101-202107

BLACK/GR RED,TRIM21

main58810-52061-C3iGXPA16..LHD202101-202107

BLACK/GRAY,TRIM20

main58810-52061-C4iGXPA16..LHD202107-202404

BLACK/SILVER/GR RED,TRIM21

main58810-52061-C5iGXPA16..LHD202107-202404

BLACK/SILVER/GRAY,TRIM20

main58810-52160-C4iGXPA16..RHD..6F202404

BLACK/RED,TRIM3#

main58810-52160-C5iGXPA16..RHD..6F202404

BLACK/GRAY,TRIM2#

main58810-52180-C4iGXPA16..RHD..8FC202404

BLACK,TRIM2#,3#

main58810-52200-C6iGXPA16..LHD..6F..EUR202404

BLACK/RED,TRIM3#

main58810-52200-C7iGXPA16..CHI202412

BLACK/GRAY,TRIM2#

main58810-52210-C4iGXPA16..LHD..8FC202404

BLACK,TRIM2#,3#

main58810-52280-C1iGXPA16..RHD..6F..EUR202404

KALLE ROVANPERA EDITION *(K),BLACK/GUNMETAL/BLUE/ECRU,TRIM2#

main58810-52290-C1supersedes 58810-52200-C7iGXPA16..LHD..6F..EUR202404

KALLE ROVANPERA EDITION *(K),BLACK/GUNMETAL/BLUE/ECRU,TRIM2#

58811DCLIP(FOR CONSOLE BOX)

main90467-05172×13iGXPA16..RHD202008-202101

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-52090-C0iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

main58903-K0020-C0iGXPA16202008-202404

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-52010-C1iGXPA16..ARL202008-202107

BLACK/GR RED,TRIM21

main58904-52010-C2iGXPA16..ARL202008-202107

HI GRADE PACKAGE,BLACK/GRAY,TRIM20

main58904-52010-C4supersedes 58904-52010-C4iGXPA16..EUR202107-202404

BLACK/GR RED,TRIM21

main58904-52010-C6supersedes 58904-52010-C6iGXPA16..EUR202107-202404

BLACK/GRAY,TRIM20

main58904-K0010-C1iGXPA16..ARL202008-202111

BLACK,TRIM2#

sub58904-K0011

main58904-52040-C1iGXPA16..RHD..6F..EUR202404

KALLE ROVANPERA EDITION *(K),BLACK/BLUE/ECRU,TRIM2#

main58904-52050-C1iGXPA16..LHD..6F..EUR202404

KALLE ROVANPERA EDITION *(K),BLACK/BLUE/ECRU,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58910-K0010-C0iGXPA16202008-202404

BLACK,TRIM2#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-K0020iGXPA16..ARL,EUR202404

9011908D23

main90119-08D23

9015960431

main90159-60431

9046705172

main90467-05172

9046808048

main90468-08048

9167380616

main91673-80616

13 parts on this diagram · 2 diagrams in section
