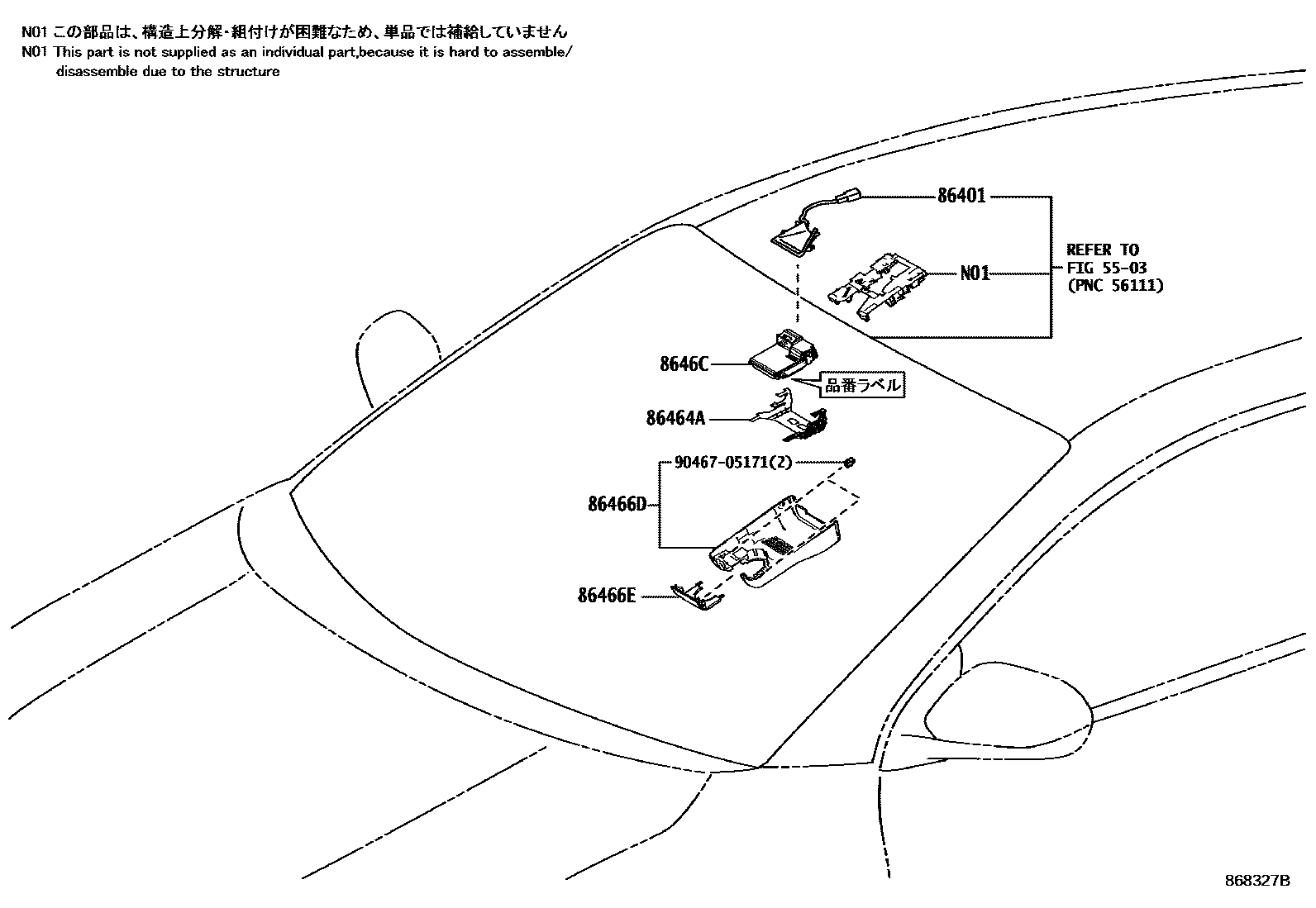

Toyota YARIS GR — PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-K0010

86464ALATCH, FORWARD RECOGNITION

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-52160i202404

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-52040i202404

8646CCAMERA, FORWARD RECOGNITION

main8646C-52450i202404-202505

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota YARIS GR

This section contains 8 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota YARIS GR. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
