Toyota YARIS GR — METER

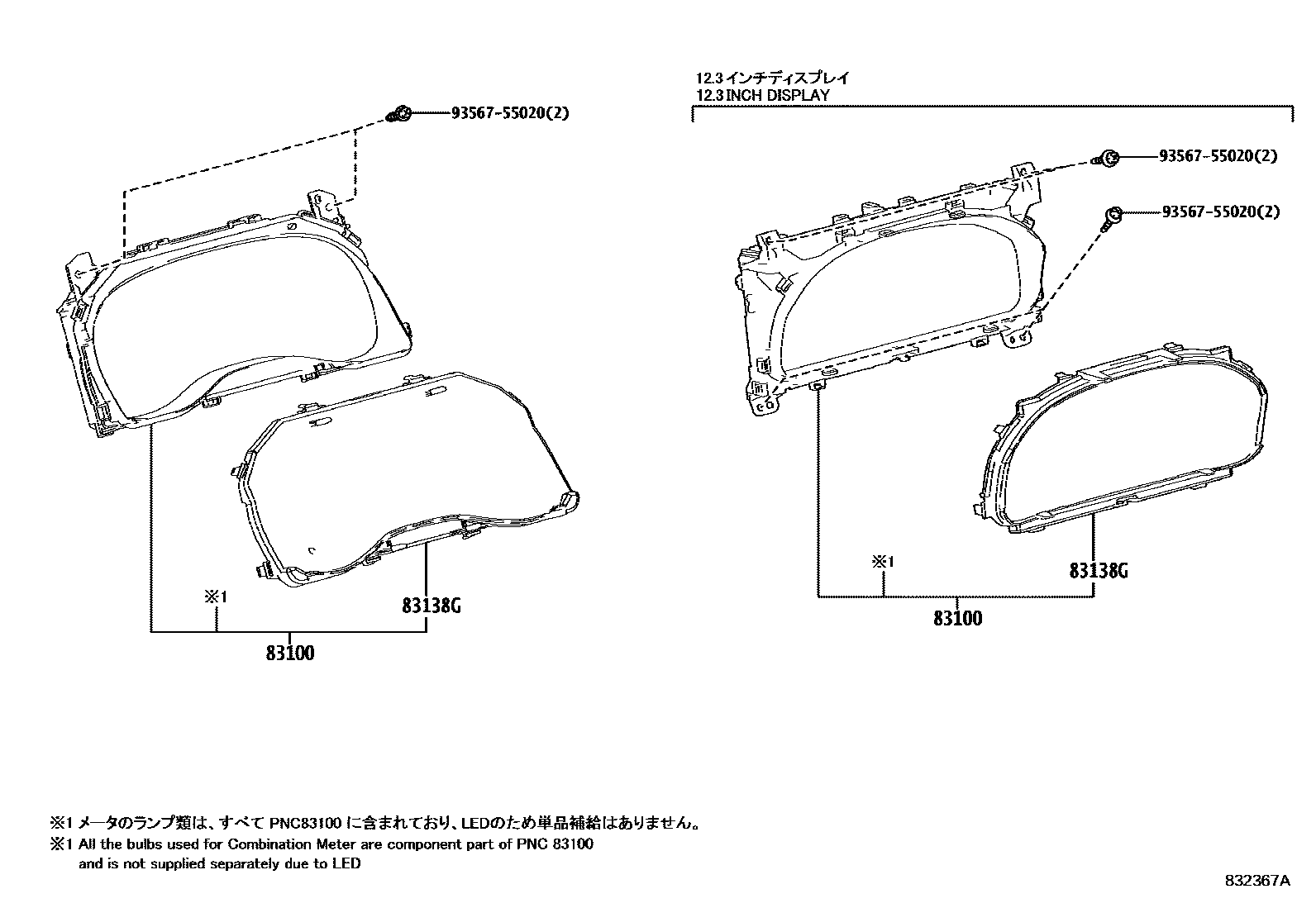

Parts diagram

83100METER ASSY, COMBINATION

main83800-5D200i202008-202204

main83800-5D201i202205-202404

main83800-5D210i202009-202204

main83800-5D211i202205

main83800-5D680i202404-202406

main83800-5D681i202407-202409

main83800-5D682i202410-202411

main83800-5D683i202412-202505

main83800-5D570i202212-202404

83138GGLASS, COMBINATION METER

main83852-5D670i202404-202505

main83852-K0020i202008-202404

9356755020

main93567-55020

3 parts on this diagram · 2 diagrams in section

METER for Toyota YARIS GR

This section contains 7 genuine Toyota parts for the METER system of the Toyota YARIS GR. Key components include: METER ASSY, COMBINATION, BRACKET SUB-ASSY, METER, NO.1, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER.
